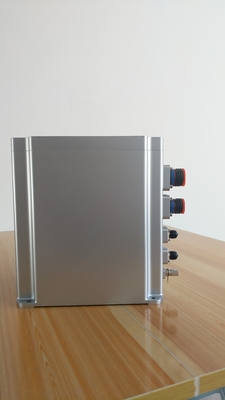

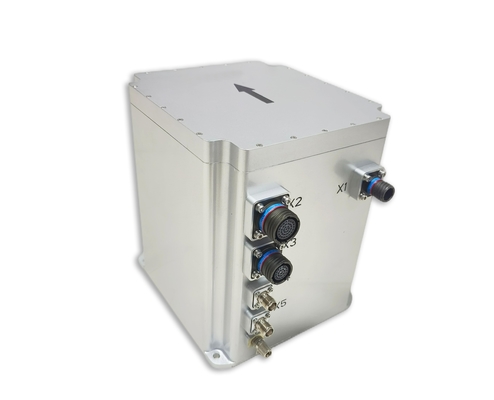

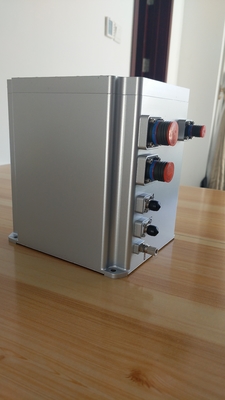

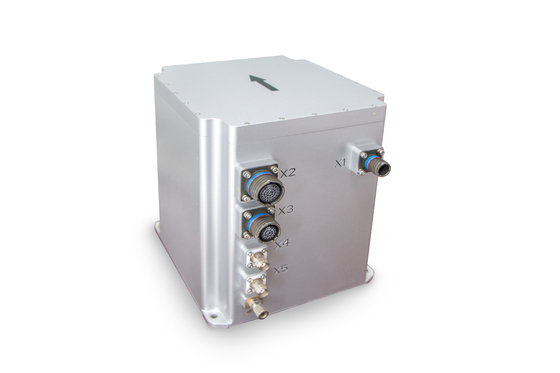

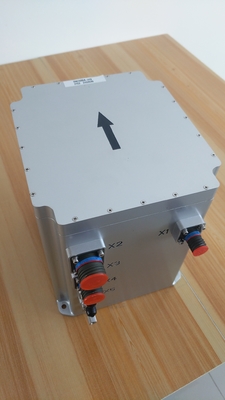

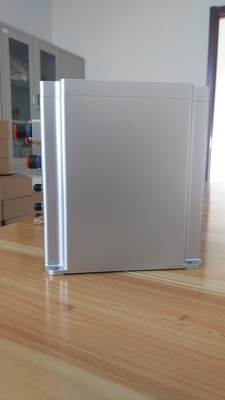

High Precise Inertial Navigation System GPS Inertial Navigation Sensor

Name: High Precise Inertial Navigation System GPS Inertial Navigation Sensor
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: INS500
Price: 5,000.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	INS500
MOQ:	1
Payment Terms:	T/T
Supply Ability:	100/MONTH

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE ROHS

Product Name:

Precise INS

Position Accuracy:

1.2m（RMS）

With RTK:

2cm+1ppm（RMS）

North-seeking Accuracy:

0.1deg

Output Port:

RS422

Packaging Details:

sponge+box

Supply Ability:

100/MONTH

Highlight:

High Precise Inertial Navigation System

Inertial Navigation System GPS

GPS Inertial Navigation Sensor

Product Description

High Precision Inertial Navigation System GPS Inertial Navigation Sensor

Key Features

Closed-loop fiber optic gyro technology for superior accuracy
High-end GNSS receiver integration
Dual operation modes: integrated navigation and pure inertial
Advanced sensor fusion algorithms
Robust construction for demanding environments

Technical Specifications

Attribute	Value
Product Name	Precise INS
Position Accuracy	1.2m (RMS)
With RTK	2cm+1ppm (RMS)
North-seeking Accuracy	0.1°
Output Port	RS422

Performance Characteristics

Parameter	Test Conditions	Standard	Enhanced
Positioning Accuracy	GNSS Valid, single point	1.2m (RMS)	1.2m (RMS)
Positioning Accuracy	GNSS Valid, RTK	2cm+1ppm (RMS)	2cm+1ppm (RMS)
Position Holding	GNSS failure	1.5nm/h (50% CEP), 5nm/2h (50% CEP)	0.8nm/h (CEP), 3.0nm/3h (CEP)
Heading Accuracy	North-seeking self	0.1°×sec(Lati) (RMS), 10min	0.06°×sec(Lati), Static base 5min alignment
Attitude Accuracy	GNSS Valid	0.03° (RMS)	0.01° (RMS)
Speed Accuracy	GNSS Valid, single point L1/L2	0.1m/s (RMS)	0.1m/s (RMS)

System Components

Fiber Optical Gyro: ±400°/s measuring range, ≤0.02°/h bias stability

Quartz Flexible Accelerometer: ±20g measuring range, ≤50µg bias stability

Communication & Electrical

RS422: 6 ways, baud rate 9.6 KBPS to 921.6 KBPS (default 115.2 KBPS)
RS232: 1 way, baud rate 9.6 KBPS to 921.6 KBPS (default 115.2 KBPS)
Voltage: 24-36VDC
Power Consumption: ≤30W

Physical Characteristics

Dimensions: 199mm × 180mm × 219.5mm
Weight: 6.5kg (standard), ≤7.5kg (non-aviation), ≤6.5kg (aviation optional)

Environmental Specifications

Operating Temperature: -40℃ to +60℃
Storage Temperature: -45℃ to +65℃
Vibration Resistance: 5-2000Hz, 6.06g (with damping)
Impact Resistance: 30g, 11ms (with shock absorption)
Lifetime: >15 years
Continuous Operation: >24 hours

System Description

The INS500 fiber integrated navigation system combines high precision fiber optic gyro, accelerometer, and GNSS receiver technology through advanced sensor fusion algorithms. This system delivers exceptional navigation position, velocity, and attitude information for precision measurement and control applications.

The system operates in two modes: inertial/satellite integrated navigation and pure inertial. When GNSS becomes unavailable, the system seamlessly transitions to pure inertial mode while maintaining accurate attitude measurement and north-seeking capabilities.
