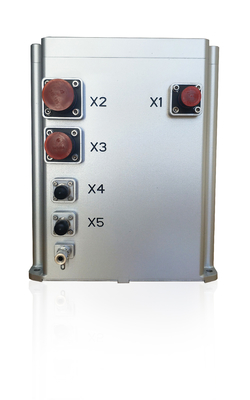

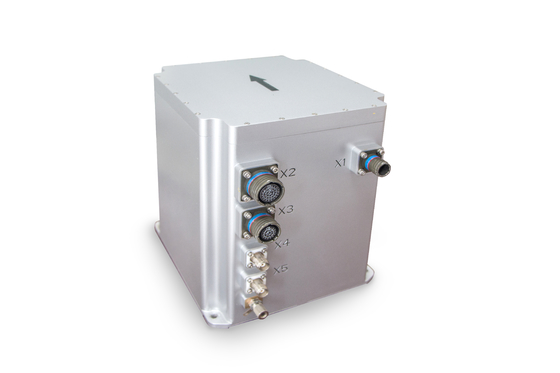

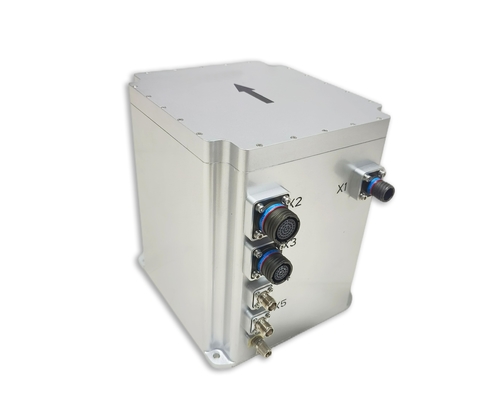

Ins500 Fiber Ins Navigation System Closed Loop High Precision

Name: Ins500 Fiber Ins Navigation System Closed Loop High Precision
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: INS500
Price: 5,000.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	INS500
MOQ:	1
Payment Terms:	T/T
Supply Ability:	100/MONTH

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE ROHS

Product Name:

Navigation System

Positioning Accuracy:

0.8nm/h

Heading Accuracy:

0.1°

Attitude Accuracy:

0.03°

Speed Accuracy:

0.1m/s（RMS）

Gyro Range:

±400°/s

Accelerometer Range:

±20g

Packaging Details:

sponge+box

Supply Ability:

100/MONTH

Highlight:

INS500 Ins Navigation System

Fiber Ins Navigation System

Ins Navigation System Closed Loop

Product Description

INS500 Fiber INS Navigation System Closed Loop High Precision

Product Specifications

Attribute	Value
Product name	Navigation System
Positioning accuracy	0.8nm/h
Heading accuracy	0.1°
Attitude accuracy	0.03°
Speed accuracy	0.1m/s（RMS）
Gyro range	±400°/s
Accelerometer range	±20g

Product Description

The INS500 fiber integrated navigation system features closed-loop high precision fiber optic gyro, accelerometer and high-end GNSS receiver boards. Through multiple sensor fusion and decoding algorithms, it provides high precision navigation position, velocity and position information to meet the requirements of high precision measurement and control.

Main application fields include inertial/satellite integrated navigation mode and pure inertial mode. When GNSS is invalid, it can enter pure inertia mode (if GPS fusion has never been carried out after power is turned on). After starting, it has accurate attitude measurement function and can output pitch, roll, and course.

Technical Specifications

Items	Test Conditions	A0 Indicators	B0 Indicators
Positioning accuracy	GNSS Valid, single point	1.2m(RMS)	1.2m(RMS)
Positioning accuracy	GNSS Valid, RTK	2cm+1ppm(RMS)	2cm+1ppm(RMS)
Position holding (GNSS failure)		1.5nm/h(50%CEP),5nm/2h(50%CEP)	0.8nm/h(CEP),3.0nm/3h(CEP)
Heading accuracy	North-seeking itself	0.1°×sec(Lati), *Lati:latitude (RMS),10min	0.06°×sec(Lati),Static base 5min alignment; 0.03°×sec(Lati),Static base 5min alignment;*Lati:latitude (RMS)
Course keeping (GNSS failure)		0.05°/h(RMS),0.1°/2h(RMS)	0.02°/h(RMS),0.05°/3h(RMS)
Attitude accuracy	GNSS Valid	0.03°(RMS)	0.01°(RMS)
Attitude holding (GNSS failure)		0.02°/h(RMS),0.06°/2h(RMS)	0.01°/h(RMS),0.03°/3h(RMS)
Speed accuracy	GNSS Valid, single point L1/L2	0.1m/s(RMS)	0.1m/s(RMS)
Speed retention (GNSS failure)		2m/s/h(RMS),5m/s/2h(RMS)	0.8m/s/h(RMS),3m/s/3h(RMS)
Fiber optical gyro	Measuring range	±400°/s	±400°/s
Fiber optical gyro	Bias stability	≤0.02°/h	≤0.01°/h
Quartz flexible accelerometer	Measuring range	±20g	±20g
Quartz flexible accelerometer	Bias stability	≤50µg(10s Average)	≤20µg(10s平均)

Communication Interface

RS422: 6 ways. Baud rate ranges from 9.6 KBPS to 921.6 KBPS (default: 115.2 KBPS). Maximum frequency: 1000Hz(raw data), default frequency: 200Hz
RS232: 1 way. Baud rate ranges from 9.6 KBPS to 921.6 KBPS (default: 115.2 KBPS). Maximum frequency: 1000Hz(raw data), default frequency: 200Hz

Physical Characteristics

Characteristic	Specification
Voltage	24～36VDC
Power consumption	≤30W
Dimension	199mm×180mm×219.5mm
Weight	6.5kg \| ≤7.5kg(non-aviation) ≤6.5kg (aviation optional)

Environmental Specifications

Parameter	Specification
Working temperature	-40℃~+60℃
Storage temperature	-45℃~+65℃
Vibration (with damping)	5~2000Hz,6.06g
Impact (with shock absorption)	30g,11ms

Reliability

Parameter	Specification
Lifetime	>15 years
Continuous working time	>24h
