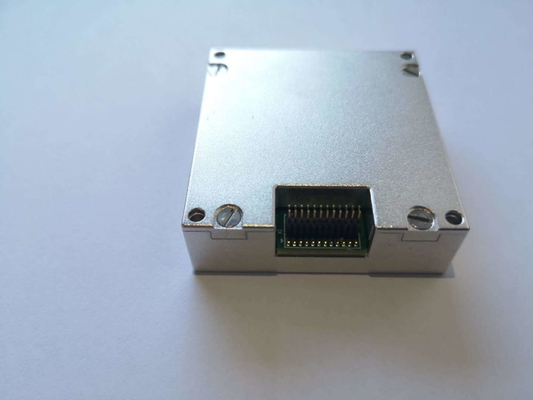

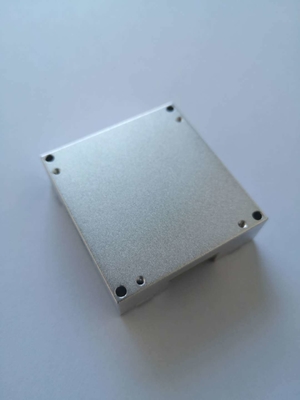

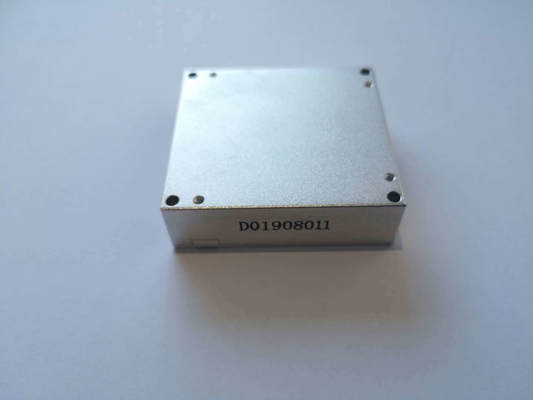

Low Drift IMU Sensor With ADIS16488 Protocal

Name: Low Drift IMU Sensor With ADIS16488 Protocal
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: 16488-H
Price: 3,003.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	16488-H
MOQ:	1
Payment Terms:	T/T
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE ROHS

Product Name:

16488 Analog Product

Random Walk:

0.26º/√h

Gyro Output Noise:

0.135º/s

Gyro Scale Factor Repeatability:

1.0%

Bandwidth（-3dB）:

330Hz

Accelerometer Bias Stability:

0.005 Mg

Accelerometer Bias Instability:

0.16 Mg

Packaging Details:

sponge+ box

Supply Ability:

500/month

Highlight:

Precision High Accuracy IMU Sensor

High Accuracy IMU Sensor ADIS16488

high accuracy imu ADIS16488 Protocal

Product Description

Low Drift IMU Sensor With ADIS16488 Protocol

Product Attributes

Product name	16488 analog product
Random walk	0.26º/√h
Gyro output noise	0.135º/s
Gyro Scale factor repeatability	1.0%
Bandwidth (-3dB)	330Hz
Accelerometer bias stability	0.005 mg
Accelerometer Bias instability	0.16 mg

Product Description

MEMS IMU with protocol same as ADIS16488

Technical Specifications

Parameter	Conditions	16488-H	Unit
Gyro Dynamic measuring range	Configurable	±500	º/s
Bias instability	Allan	<2	º/h
Bias stability	10s,rms	<10	º/h
Bias in full temperature range	-40℃~85℃,10s,rms	<50	º/h
Random walk	1б	<0.15	º/√h
Scale factor nonlinearity		<500	ppm
Constant error of scale factor		<2000	ppm
Bias repeatability	1б	<10	º/h
Effect of linear acceleration on bias	1б	<10	º/h/g
Accelerometer Dynamic measuring range	Configurable (Max ±40)	±16	g
Accelerometer Bias		1	mg
Accelerometer bias stability	Allan error	0.1	mg
Accelerometer Random walk	1б	0.029	m/s/√h
Electrical characteristics voltage	dc	3.3(or5)±10%	V
Power consumption		0.6	W
Working temperature	extensible	-40℃~85℃	℃

16488-H is a high accuracy MEMS IMU with protocol same as ADIS16488. The product precision is better than ADIS16488. The version is optional, the size and appearance are exactly the same, and the communication protocol is the same. It is more convenient for users to change, providing users with professional product customization services.
