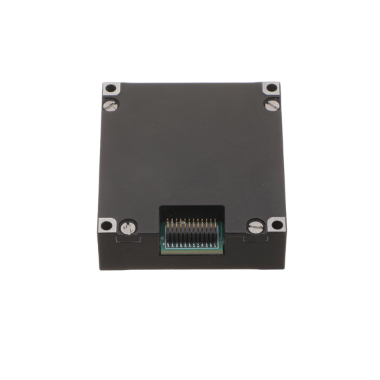

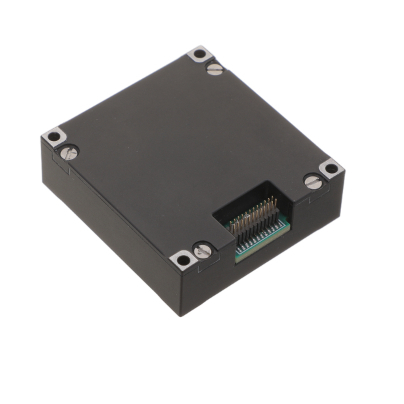

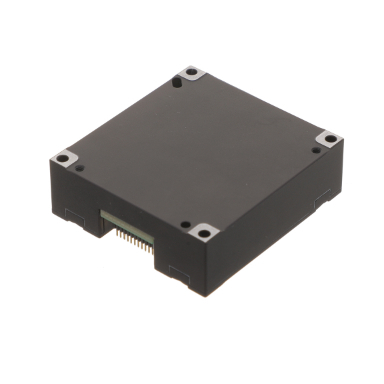

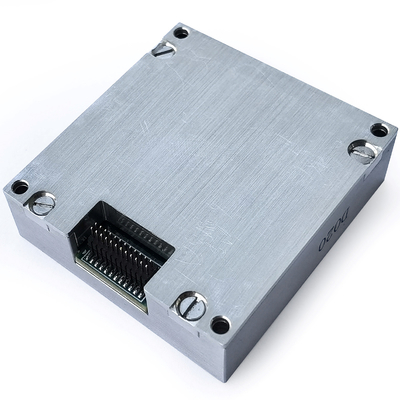

ADIS16488 Alternative Mems Based Imu High Performance 6 Axis Imu Sensor

1
MOQ
ADIS16488 Alternative Mems Based Imu High Performance 6 Axis Imu Sensor
Features Gallery Product Description Request A Quote
Features
Specifications
Dynamic Measuring Range: ±450
Bias Instability: 3.5
Bias Stability: 30
Random Walk: 0.25
Output Noise: 0.09
Bandwidth: 330
High Light:

ADIS16488 MEMS Based IMU

,

MEMS Based IMU High Performance

,

High Performance 6 Axis IMU Sensor

Basic Infomation
Model Number: 16488C
Payment & Shipping Terms
Packaging Details: sponge/box
Payment Terms: T/T
Supply Ability: 500/month
Product Description

high performance IMU made in China analog IMU 6 axis IMU sensor MEMS ADIS16488 alternative IMU

16488-C is a domestic MEMS IMU used to replace ADIS16488. The product precision is better than ADIS16488. The version is optional, the size and appearance are exactly the same, and the communication protocol is the same.The version is optional, the size and appearance are exactly the same, and the communication protocol is the same. It is more convenient for users to change, providing users with professional product customization services.
ADIS16488 Alternative Mems Based Imu High Performance 6 Axis Imu Sensor 0


ParameterConditions16488-CADIS16488unit
GyroDynamic measuring rangeconfigurable±450±480º/s
Bias instabilityAllan3.55.1º/h
bias stability1s,rms30/º/h
bias in full temperature range-40℃~85℃,10s,rms0.02/º/s
Random walk0.250.26º/√h
bias repeatability35/º/h
output noiseNo filtering,rms0.090.135º/s
Scale factor repeatability0.021.0%
Scale factor Temperature coefficient-40℃~85℃, 1б5±35ppm/°C
The scale factor is nonlinearFS=450º/s0.0080.01%FS
bandwidth(-3dB) 330330Hz
AccelerometerDynamic measuring rangeConfigurable (Max ±40)±20±18g
bias stabilityAllan error0.005/mg
bias in full temperature range-40℃~85℃,10s,rms0.516mg
Random walk0.010.029m/s/√h
Bias instability0.16/mg
output noiseNo filterin,rms1/mg
Scale factor repeatability0.010.5%
scale factor is nonlinearFS=10g0.0020.1%FS
bandwidth(-3dB) 330330Hz
Cross coupling 0.18/%
MagnetometerDynamic measuring range ±2.5±2.5gauss
The sensitivity 0.10.1mgauss/LSB
nonlinearity 0.50.5%FS
BarometerPressure range 11001100mbar
sensitivity 6.1 × 10-76.1 × 10-7mbar/LSB
Total error 4.54.5mbar
The relative error 2.52.5mbar
nonlinearity 0.10.1%FS
Communication interface1 way SPIInput clock frequency1515MHz
1 way UARTBaudrate230.4/kbps
1 way CAN  /kbps
Electrical characteristicsvoltagedc3.3(or5)±10% V
Power consumption 0.61W
ripple waveP-P 100mV
Environmentworking temp.extensible 85
Store temp  85
vibration 10~2000Hz,6.06g
impact 5000g,0.1ms


ADIS16488 Alternative Mems Based Imu High Performance 6 Axis Imu Sensor 1
