Quartz Flexure Accelerometer
Created with Pixso.

Quartz Flexure Accelerometer 1 Axis 800-2500Hz with High Accuracy

Quartz Flexure Accelerometer 1 Axis 800-2500Hz with High Accuracy

Brand Name: Firepower
Model Number: AV2-03
MOQ: 1
Price: 1260
Payment Terms: T/T
Supply Ability: 500/month
Detail Information
Place of Origin:
China
Product Name:
Navigation Accelerometer
Range:
70g
Threshold:
5ug
Bias K0/K1:
≤±5 Mg
Scale Factor:
0.8~1.5 MA/g
Bandwidth:
800~2500Hz
Weight:
≤80g
Packaging Details:
sponge/box
Supply Ability:
500/month
Highlight:

Quartz Flexure Accelerometer 1 Axis

,

Quartz Flexure Accelerometer 800Hz

Product Description
Quartz Flexure Accelerometer 1 Axis 800-2500Hz with High Accuracy
Product Specifications
Product Name Navigation Accelerometer
Range 70g
Threshold 5μg
Bias K0/K1 ≤±5 mg
Scale Factor 0.8~1.5 mA/g
Bandwidth 800~2500Hz
Weight ≤80g
Product Overview

The AV2 series quartz flexible accelerometer is a high-precision, large-range (up to 100g) military inertial navigation grade accelerometer with excellent long-term stability, repeatability, startup performance, environmental adaptability and high reliability. Suitable for both static and dynamic testing, it serves as a standard vibration sensor.

Key Features
  • Low cost with high performance
  • Broad measurement range
  • Low lag and high resolution
  • Exceptional stability and accuracy
  • Low power consumption
  • Linear output current proportional to acceleration
  • Optional built-in temperature sensor for compensation
Quality Assurance
  • Dedicated quality testing at every production stage
  • Professional engineering oversight
  • Comprehensive pre-shipment testing
Applications
  • Military high-precision inertial navigation systems
  • Aerospace, aviation, and marine applications
  • Weapons systems
  • Drilling and inclination measurement
  • Precision instrument vibration isolation testing
Performance Characteristics
No. Parameters AV2-03
1 Range ±70g
2 Threshold 5μg
3 Bias K0/K1 ≤±5 mg
4 Scale factor K1 0.8~1.5 mA/g
5 Second order nonlinearity coefficient K2 ≤±20μg /g²
6 0g 4 hours short-term stability ≤20 μg
7 1g 4 hours short-term stability ≤20 ppm
8 Bias comprehensive repeatability σK0 (1σ,1 month) ≤30 μg
9 Scale factor comprehensive repeatability σK1/K1 (1σ,1 month) ≤50 ppm
10 Nonlinearity coefficient comprehensive repeatability K2/K1(1σ, 1 month) ≤±30 μg /g²
11 Bias thermal coefficient (full temp. mean) ≤±50 μg /℃
12 Scale factor thermal coefficient (full temp. mean) ≤±50 ppm /℃
13 Noise (sampling resistance 840Ω) ≤5mv
14 Natural frequency 400~800 Hz
15 Bandwidth 800~2500 Hz
16 Random vibration 6g(20-2000Hz)
17 Impact 100g,5ms,1/2sin
18 Working temp. -55~+85℃
19 Store temp. 60~+120℃
20 Power supply ±12~±15V
21 Consume current ≤±20mA
22 Thermal sensor Customizable
23 Size Ф25.4X30mm
24 Weight ≤80g
Frequently Asked Questions
How can I place an order?

Please provide detailed technical requirements for an accurate quotation.

What products do you provide?

Inertial sensors, navigation sensors, accelerometers, gyros, IMUs, INS, and test equipment.

What is your warranty policy?

1-year warranty with lifelong maintenance support.

What are your delivery terms?

We accept EXW, FOB, CFR, CIF, DDU, DDP, and other standard terms.

Product Images

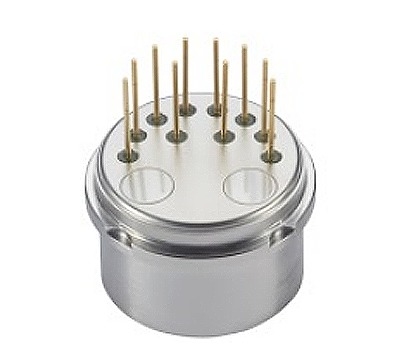

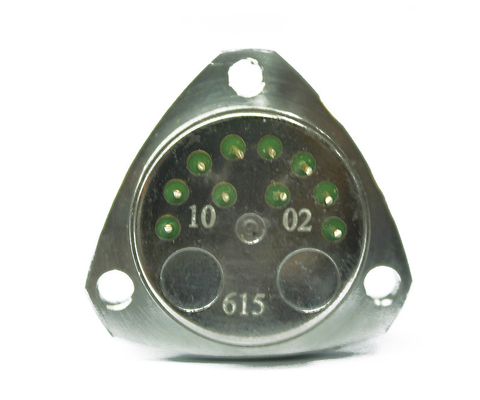

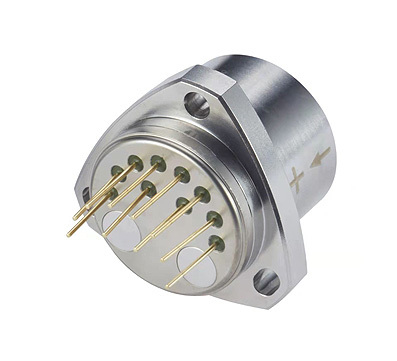

Quartz Flexure Accelerometer 1 Axis 800-2500Hz with High Accuracy 0
Dimensions
Quartz Flexure Accelerometer 1 Axis 800-2500Hz with High Accuracy 1
