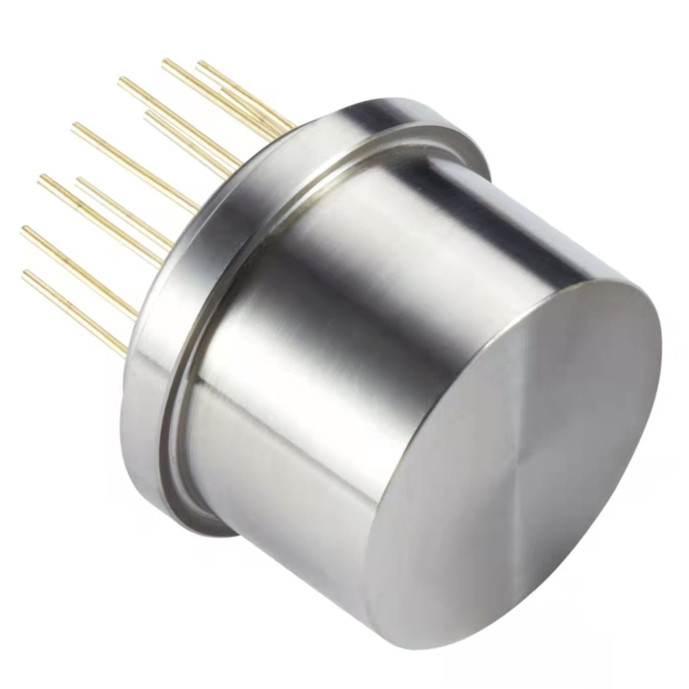

Quartz Flexure Accelerometer 1 Axis 800-2500Hz with High Accuracy

1
MOQ
1260
Price
Quartz Flexure Accelerometer 1 Axis 800-2500Hz with High Accuracy
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Navigation Accelerometer
Range: 70g
Threshold: 5ug
Bias K0/K1: ≤±5 Mg
Scale Factor: 0.8~1.5 MA/g
Bandwidth: 800~2500Hz
Weight: ≤80g
High Light:

Quartz Flexure Accelerometer 1 Axis

,

Quartz Flexure Accelerometer 800Hz

Basic Infomation
Place of Origin: China
Brand Name: A-VIC
Model Number: AV2-03
Payment & Shipping Terms
Packaging Details: sponge/box
Delivery Time: 1 week for sample
Payment Terms: T/T
Supply Ability: 500/month
Product Description

Quartz Flexure Accelerometer 1 Axis 800-2500Hz with High Accuracy



Quality assurance

  1. Every production process has a special person to test to ensure quality
  2. Have professional engineers to check the quality
  3. All products have passed all test before leave factory

FAQ
1. How can I place an order?
Please provide the details of the technical requirements as clear as possible, then we can send you the suitable offer at the first time.
2. What kind of products we provide?
Inertial sensor, navigation sensor, accelerometer, gyro, IMU, INS, test equipment and so on.
3. How about the warranty ?

We have 1 years warranty and lifelong maintenance
4. What is your terms of delivery?
We accept EXW, FOB, CFR, CIF, DDU, DDP, etc. You can choose the one which is the most convenient or cost effective for you.



AV2 series quartz flexible accelerometer is a high-precision, large-range (up to 100g) military inertial navigation grade accelerometer product with excellent long-term stability, repeatability, startup performance, environmental adaptability and high reliability. It can be used for static testing as well as dynamic testing, and it is also a standard vibration sensor.
The output current of the product has a linear relationship with the force or acceleration received, and the user can select an appropriate sampling resistor through calculation to achieve high-precision output. A temperature sensor can be built-in according to user needs, which can be used to compensate the offset value and scale factor to reduce the influence of ambient temperature.
Application fields: inertial measurement of military high-precision inertial navigation systems in aerospace, aviation, ships, weapons and other fields and vibration isolation testing of precision instruments and equipment.


Applications
Drilling and Inclination Measurement
Aeronautics and Astronautics
Instruments and Equipment

Features

Low cost

Broad measurement range

Low lag

High resolution

High stability

High accuracy

Low power




Performance Characteristics

No. Parameters AV2-03
1 Range ±70g
2 Threshold 5μg
3 Bias K0/K1 ≤±5 mg
4 Scale factor K1 0.8~1.5 mA/g
5 Second order nonlinearity coefficient K2 ≤±20μg /g2
6 0g 4 hours short-term stability ≤20 μg
7 1g 4 hours short-term stability ≤20 ppm
8 Bias comprehensive repeatability σK0 (1σ,1 month) ≤30 μg
9 Scale factor comprehensive repeatability σK1/K1 (1σ,1 month) ≤50 ppm
10 Nonlinearity coefficient comprehensive repeatability K2/K1(1σ, 1 month) ≤±30 μg /g2
11 Bias thermal coefficient (full temp. mean) ≤±50 μg /℃
12 Scale factor thermal coefficient (full temp. mean) ≤±50 ppm /℃
13 Noise (sampling resistance 840Ω) ≤5mv
14 Natural frequency 400~800 Hz
15 Bandwidth 800~2500 Hz
16 Random vibration 6g(20-2000Hz)
17 Impact 100g,5ms,1/2sin
18 Working temp. -55~+85℃
19 Store temp. 60~+120℃
20 Power supply ±12~±15V
21 Consume current ≤±20mA
22 Thermal sensor Customizable
23 Size Ф25.4X30mm
24 Weight ≤80g

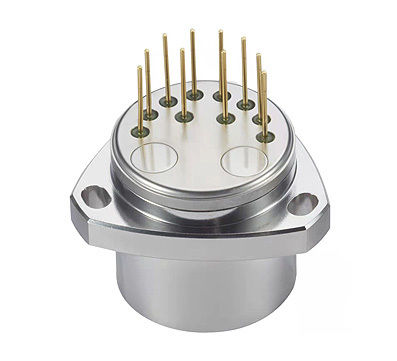

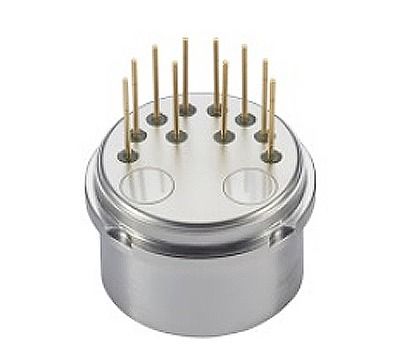

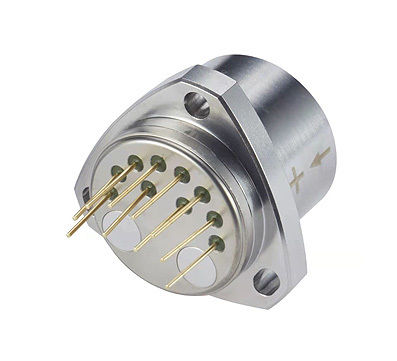

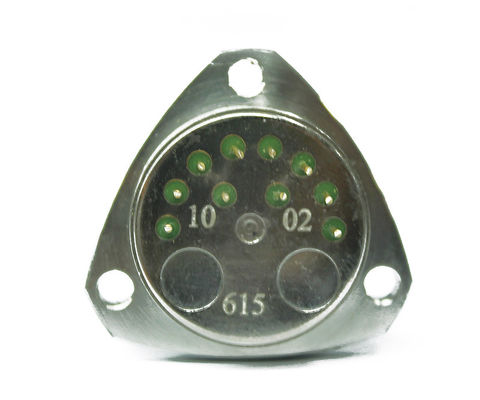

Product show

Quartz Flexure Accelerometer 1 Axis 800-2500Hz with High Accuracy 0

Dimensions

Quartz Flexure Accelerometer 1 Axis 800-2500Hz with High Accuracy 1
