products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Quartz Flexure Accelerometer
Created with Pixso.

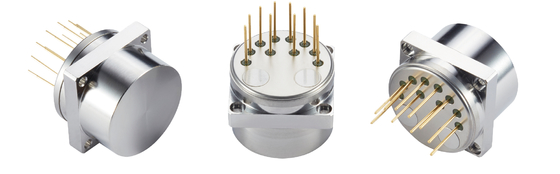

±12-±15V Vibration Measurement Detecting the Smallest Vibrations with High Sensitivity

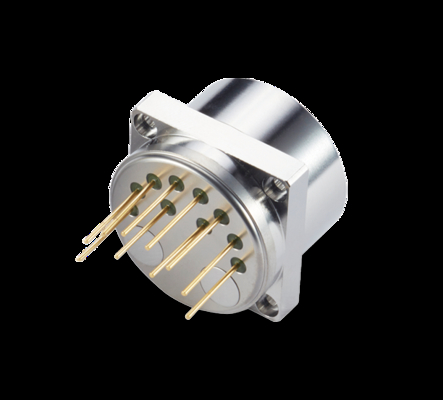

±12-±15V Vibration Measurement Detecting the Smallest Vibrations with High Sensitivity

±12-±15V Vibration Measurement Detecting the Smallest Vibrations with High Sensitivity

Brand Name: Avic
Model Number: AV1-01
MOQ: 1
Price: 1150 USD/pcs
Payment Terms: 100% in advance
Supply Ability: 500/month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Range:
50g
Scale Factor Thermal Coefficient:
≤±10 Ppm /℃
Bias Drift Sigma K0( 1σ，one Month):
≤10 μg
Bias Thermal Coefficient:
≤±10 μg /℃
Weight:
≤80g
Power:
±12~±15V
Bias K0/k1:
≤±2mg
Bandwidth:
800~2500 Hz
Packaging Details:
carton with sponge
Supply Ability:
500/month
Product Description
±12-±15V Vibration Measurement Detecting the Smallest Vibrations with High Sensitivity
Key Specifications
Attribute Value
Range 50g
Scale factor thermal coefficient ≤±10 Ppm /℃
Bias drift Sigma k0 (1σ, one month) ≤10 μg
Bias thermal coefficient ≤±10 μg /℃
Weight ≤80g
Power ±12~±15V
Bias k0/k1 ≤±2mg
Bandwidth 800~2500 Hz
Product Overview

The Quartz Flexure Accelerometer (Model AV1-01) is a high-precision vibration sensor designed for demanding industrial applications. With a 50g range and operating temperature range of -55 to +85℃, it delivers reliable performance in harsh environments.

Key Features:
  • Class II nonlinearity coefficient k2/k1: ≤±10μg/g²
  • Noise level: ≤5mv (sample resistance 840Ω)
  • Bandwidth: 800-2500 Hz for high-speed measurements
  • Threshold/Resolution: 1μg
  • 0g 4 hours short time stability: ≤10 μg
Technical Parameters
Parameter Specification
Product Quartz Flexure Accelerometer
Repeatability of Scale Factor ≤15ppm (1σ, one month)
Scale Factor kl 1.05~1.30 MA/g
Bias k0/k1 ≤±2mg
Bias Drift Sigma k0 ≤10 μg (1σ, one month)
Applications

This high-precision accelerometer is ideal for:

  • Aerospace vibration measurement
  • Automotive testing
  • Structural vibration analysis
  • Machine tool vibration monitoring
  • High-frequency vibration detection in industrial equipment
Ordering Information
Brand Avic
Model Number AV1-01
Certification CE
Price 1150 USD/pcs
Minimum Order 1 unit
Delivery Time 1 week
Payment Terms 100% in advance
Monthly Capacity 500 units
Packaging & Shipping

The accelerometer is securely packaged in a carton with protective foam padding to ensure safe transportation. We ship worldwide via reliable courier services with tracking provided.

Frequently Asked Questions
Where is this accelerometer manufactured?
Manufactured in China with CE certification.
What is the delivery time?
Standard delivery time is 1 week.
Can this product be customized?
Yes, Avic offers customization services for this accelerometer.
Tags:

Quartz Flexure Accelerometer 1 Axis

Quartz Flexible Precision Accelerometer

Navigation High Precision Accelerometer
