Quartz Flexure Accelerometer

Single Axis Quartz Vibration Sensor With 70g Range Low Bias For Oil Exploration

Name: Single Axis Quartz Vibration Sensor With 70g Range Low Bias For Oil Exploration
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: ACC1-02
Price: 1,250.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	ACC1-02
MOQ:	1
Price:	negotiable
Payment Terms:	T/T
Supply Ability:	200/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Range:

±50g/±60g/±70g

Threshold:

5μg

Bias K0/K1:

≤±3mg

Scale Factor K1:

1.0~1.30 MA/g

Class II Nonlinear Coefficient K2:

≤±15μg /g2

Bandwidth:

800~2500 Hz

Impact:

100g,8ms,1/2sin

Noise (840 Ω Sampling Resistor):

≤5mv

Size:

Ф25.4X30mm

Weight:

≤80g

Packaging Details:

sponge/box

Supply Ability:

200/month

Highlight:

70g Range Quartz Vibration Sensor

Oil Exploration Quartz Vibration Sensor

Low bias Quartz Vibration Sensor

Product Description

Single Axis Quartz Vibration Sensor With 70g Range Low Bias For Oil Exploration

Product Specifications

Attribute	Value
Range	±50g/±60g/±70g
Threshold	5μg
Bias K0/K1	≤±3mg
Scale factor K1	1.0~1.30 mA/g
Class II nonlinear coefficient K2	≤±15μg /g2
Bandwidth	800~2500 Hz
Impact	100g,8ms,1/2sin
Noise (840 Ω sampling resistor)	≤5mv
Size	Ф25.4X30mm
Weight	≤80g

Product Overview

Download Datasheet (PDF)

The ACC1 series quartz flexible accelerometer is a high-precision vibration sensor with exceptional long-term stability, repeatability, start-up performance, and environmental adaptability. Designed for both static and dynamic testing applications, it serves as a reliable standard for vibration and tilt measurement.

The sensor's output current maintains a linear relationship with applied force or acceleration. Users can select appropriate sampling resistance to achieve high-precision output. An optional built-in temperature sensor enables compensation for bias and scale factor variations, reducing environmental temperature effects.

Product Diagram

Standard Version Accelerometer

Technical Parameters

No	Parameter	ACC1-01	ACC1-02	ACC1-03
1	Range	±50g/±60g/±70g	±50g/±60g/±70g	±50g/±60g/±70g
2	Threshold	5μg	5μg	5μg
3	Bias K0/K1	≤±3mg	≤±3mg	≤±5 mg
4	Scale factor K1	1.0~1.30 mA/g	1.0~1.30 mA/g	1.0~1.30 mA/g
5	Class II nonlinear coefficient K2	≤±10μg /g2	≤±15μg /g2	≤±20μg /g2
6	0 g 4 hour short term stability	≤10 μg	≤10μg	≤10 μg
7	1g 4-hour short-term stability	≤10 ppm	≤10 ppm	≤10 ppm
8	Bias comprehensive repeatability oK0(1σ, 1 month)	≤10 μg	≤15μg	≤25 μg
9	Scale factor comprehensive repeatability σ K1/K1 (1σ, 1 month)	≤10ppm	≤20 ppm	≤30 ppm
10	Nonlinear coefficient comprehensive repeatabilityK2/K1 (1σ, 1 month)	≤±10 μg /g2	≤±15 μg /g2	≤±20 μg /g2
11	Bias temperature coefficient (full temperature average)	≤±10 μg /℃	≤±20 μg /℃	≤±30 μg /℃
12	Scale Factor Temperature Coefficient (Averaged Over Temperature)	≤±10 ppm /℃	≤±30 ppm /℃	≤±50 ppm /℃
13	Noise (840 Ω sampling resistor)	≤5mv	≤8.4mv	≤8.4mv
14	Natural frequency	400~800 Hz	400~800 Hz	400~800 Hz
15	Bandwidth	800~2500 Hz	800~2500 Hz	800~2500 Hz
16	Random vibration	6g(20-2000Hz)	6g(20-2000Hz)	6g(20-2000Hz)
17	Impact	100g,8ms,1/2sin	100g,8ms,1/2sin	100g,8ms,1/2sin
18	Operating temperature range	-55~+85℃	-55~+85℃	-55~+85℃
19	Storage temperature range	-60~+120℃	-60~+120℃	-60~+120℃
20	Power supply	±12~±15V	±12~±15V	±12~±15V
21	Current consumption	≤±20mA	≤±20mA	≤±20mA
22	Temperature sensor	Option	Option	Option
23	Size	Ф25.4X30mm	Ф25.4X30mm	Ф25.4X30mm
24	Weight	≤80g	≤80g	≤80g

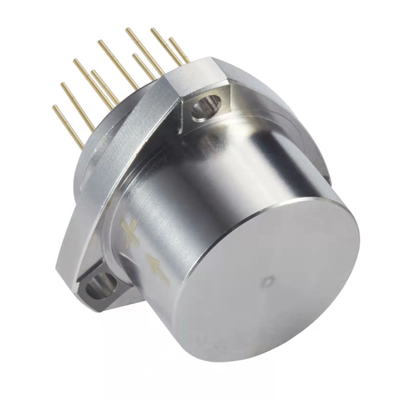

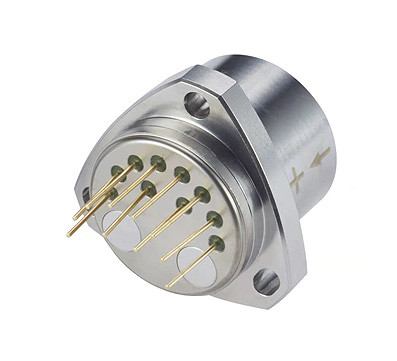

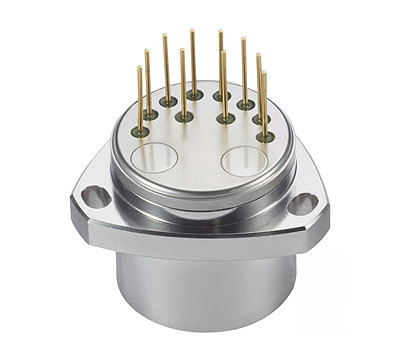

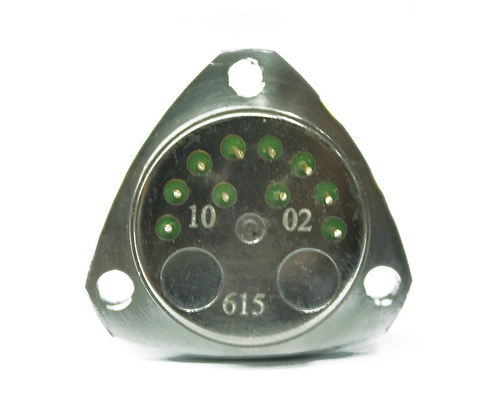

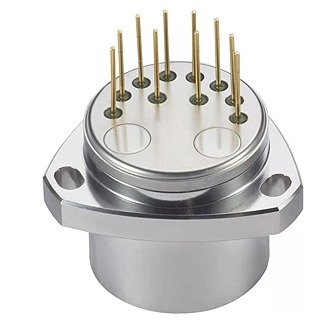

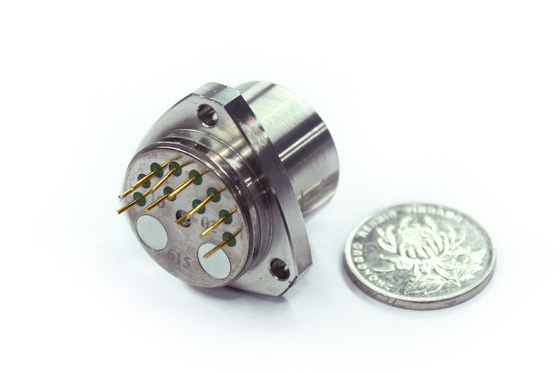

Product Images
