Interferometric Digital Open Loop Fiber Optic Gyro For Inertial System

Name: Interferometric Digital Open Loop Fiber Optic Gyro For Inertial System
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-24
Price: 800 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-24
MOQ:	1
Price:	800$
Payment Terms:	T/T
Supply Ability:	200/MONTH

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Measuring Range:

±500°/s

Bias Stability:

≤≤1.5º/h

Bias Repeatability:

≤ ≤1.5º/h

Scale FactorNonlinear:

≤ 300ppm

Power Consumption:

≤1.5w

Packaging Details:

Sponge+ box

Supply Ability:

200/MONTH

Highlight:

Interferometric Fiber Optic Gyro

Inertial System Fiber Optic Gyro

Product Description

Interferometric Digital Open Loop Fiber Optic Gyro For Inertial System

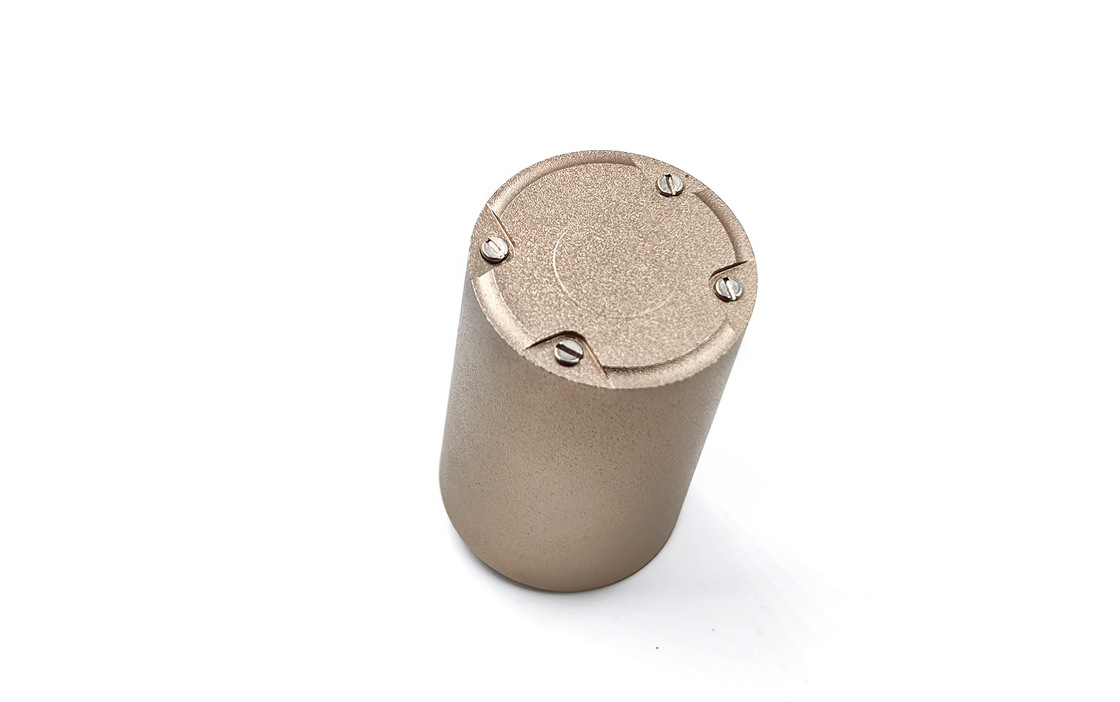

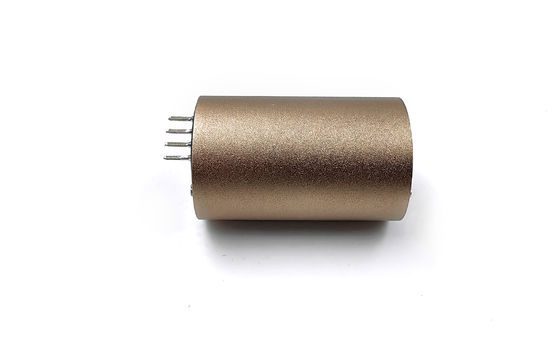

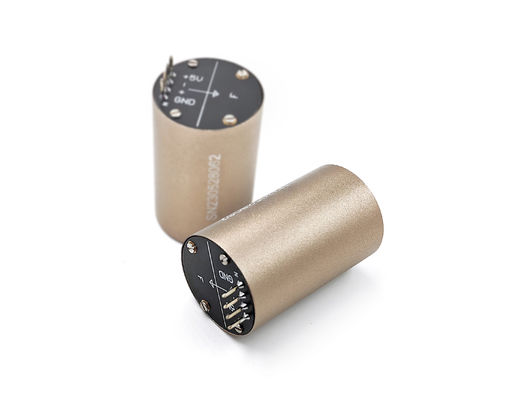

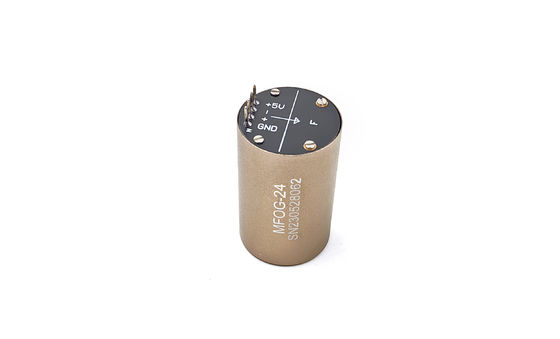

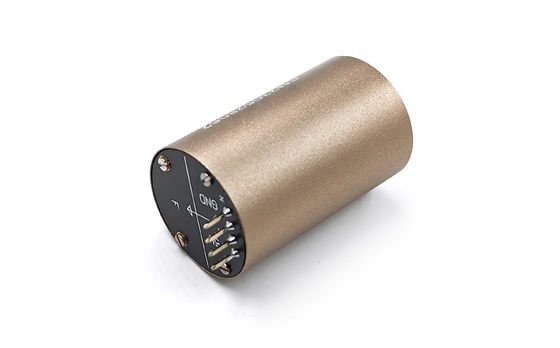

The MFOG-24 micro-nano fiber optic gyroscope is an advanced angular rate sensor that integrates optics, mechanics, and electronics. Based on the Sagnac effect, it incorporates multiple micro-nano fiber devices to detect, process, and feedback the phase difference generated by counter-propagating light beams.

This product consists of optical path components, circuit components, and structural components. It features a simple design with no moving or wearing parts, fast startup, compact size, and lightweight construction - ideal for attitude control and measurement applications in various carriers.

Product Composition

Optical path assembly
Detection and control signal circuit board
Fiber ring skeleton, housing, and other structural components

Main Performance Parameters

Serial No.	Project	MFOG-24	MFOG-24-AN
1	Range (°/s)	±500	±300
2	Scale factor	3600(LSB/o/s)	7mv/o/s
3	Scale factor nonlinearity (ppm)	300	≤1000
4	Zero-bias stability (10s, 1σ, °/h)	≤1.5	≤2
5	Zero-bias repeatability (1σ, °/h)	≤1.5	≤2
6	Angular random walk (°/h)^1/2	≤0.03	≤0.04
7	Zero bias (°/s)	≤0.02	≤0.05
8	3dB Band Width (Hz)	≥300	≥450
9	Power supply (V)	5+0.15	5+0.15
10	Power Consumption (W)	≤1.5	≤0.7
11	Dimension (mm)	φ24X39

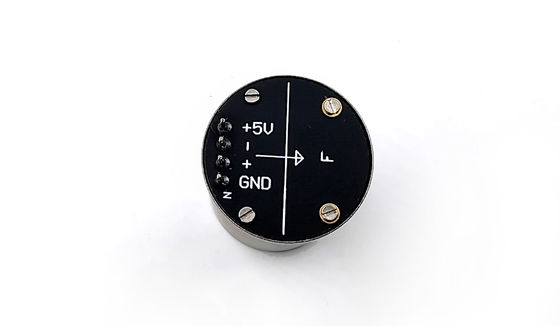

External Power Supply Requirements

+5V
Voltage: 4.85V~5.15V
Ripple: 20mV
Electric current: 0.2A
