sing axis rate turntable, angular rate test table, inertial test bench

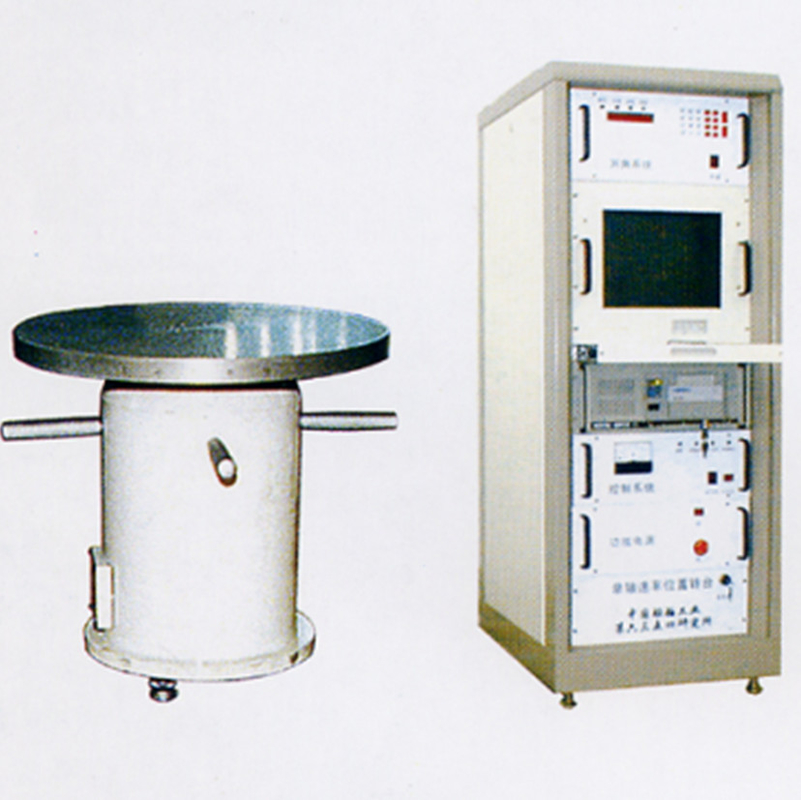

TD-200 is a sing axis turntable facet type mechanical rate turntable. It equipped with desktop computer or laptop. It could perform automatic state control and data acquisition and process.
TD-500 is a sing axis turntable facet type mechanical rate turntable, it is mainly used to test angular rate of inertial system and inertial device. It is equipped with standard serial port. It could control status and acquit data by computer automatically. And it have over-rate and over-current protection function.
| items | TD-200 | TD-500 |
| Load capacity | 15kg | 15kg |
| Table facet diameter | Ø200mm | Ø500mm |
| Table facet flatness | 0.01mm | 0.01mm |
| Table facet jerk value | 0.01mm | 0.01mm |
| Inclination rotary accuracy | ±3’’ | ±3’’ |
| Rotary angle range | Continuous infinite | Continuous infinite |
| Working mode | position, rate, vibration | Self-motion, rate, sway, position |
| Machine body weight | About 40kg | |
| Outline size | Ø350mmx500mm | |
| Slip rings | 40 rings x 3A | |
| Computer port | RS232 | |
| Power | AC 22V 50Hz | |
| Angular position measure accuracy | ±3’’ | ≤±3’’ |
| Angular position measure resolution | 0.36’’ | 0.36’’ |
| Angular position measure repeatibility | ±2″ | |
| Angular position control accuracy | ±5″ | ≤±3’’ |
| rate range | ±0.001°/s~±400°/s | ±0.1°/s~±300°/s |
| rate accuracy | 5x10-3(360° interval) | 5x10-3(360° interval) |
| rate smoothness | 5x10-3(360° interval) | 5x10-3(360° interval) |
| Vibration frequency | 0.01~18Hz | |
| Vibration(sway) peek angular acceleration | 10000°/s2 | 300°/s2 |
| Vibration(sway) peek angular rate | 200°/s | |
| Sway range | 10°(max swing) | |
| Sway Frequency | 0.1Hz~5Hz | 0-5Hz |
