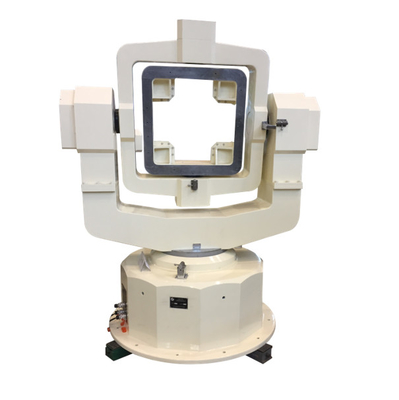

Three-axis rate position turntable, 3 axis motion simulator UOO type​



I. Overview

Three-axis turntable is mainly used for three directions of angular position, angular rate and angular acceleration and other motion incentives to achieve the test of the measured object.

II. Main technical requirements

1. Performance requirements

  1. Load weight: not less than 10 kg;
  2. Load mounting surface: φ320mm, super hard aluminum alloy;

2. Accuracy index

  1. Planeness of mounting surface: 0.02 mm;
  2. Average axis rotation verticality of three axes: ± 20 ″;
  3. Roll axis: continuous infinite rotation;
  4. Azimuth axis: continuous infinite rotation;
  5. Pitch axis: continuous infinite rotation;
  6. Rotation error of three-axis inclination: ≤ ± 10 ″;
  7. Three-axis position accuracy: ± 10 ″;
  8. Triaxial position repeatability: ± 5 ″;
  9. Rate range: ± 0.001 °/S ~ ± 500 °/S;

±0.001°/S ~ ±400°/S ;

±0.001°/S ~ ±300°/S ;

  1. Maximum angular acceleration: 400 °/S2;

300 °/S2

200 °/S2

  1. Rate accuracy and stability: ω < 1 °/s 5 × 10-3(1 ° average);

1 °/s ≤ ω < 10 °/s 5 × 10-4(10 ° average);

10 °/s ≤ ω5 × 10-5(360 ° average);

2.3 Slip ring (optional): 30 rings, rated current of 2A;

Static contact resistance: not more than 10mΩ;

Dynamic contact resistance: not more than 15 mΩ;

2.4 Reliability requirements

Mean Time Between Failure (MTBF): 2000 hours

Continuous working time: 8 hours

UOO Type​ Triaxial Turntable For Three Directions Angular Rate 0



Dimension Drawing

UOO Type​ Triaxial Turntable For Three Directions Angular Rate 1



Working environment

(1) Power: 220V ± 10% 50Hz 2KW;

(2) Ambient temperature: general laboratory environment requirements;

(3) Ambient humidity: ≤ 80RH;
