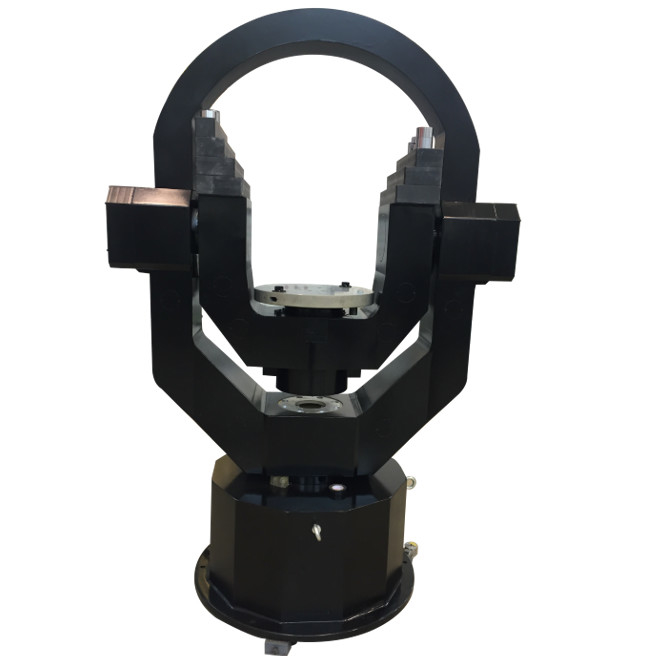

10'' 3 Axis Turntable For Three Directions Angular Position

10'' 3 Axis Turntable For Three Directions Angular Position
Features Gallery Product Description Request A Quote
Product Name: Calibration Simulator
(1) Load Weight: Not Less Than 10 Kg;
(7) Three-axis Position Accuracy: ± 10''
Table Facet Flatness: 0.02mm
Total Weight: 650 Kg
Table Size: 320mm
High Light:

10'' 3 Axis Turntable


Angular Position 3 Axis Turntable

Basic Infomation
Place of Origin: CHINA
Brand Name: AVIC
Model Number: 3ST-350
Payment & Shipping Terms
Packaging Details: carton with sponge
Delivery Time: 10 days for sample
Payment Terms: T/T, L/C
Supply Ability: 1000/month
Product Description

angular position, angular rate and angular acceleration testing and calibration table motion test turntable simulator


I. Overview

Three-axis turntable is mainly used for three directions of angular position, angular rate and angular acceleration and other motion incentives to achieve the test of the measured object.


II. Main technical requirements

1. Performance requirements

  1. Load weight: not less than 10 kg;
  2. Load mounting surface: φ320mm, super hard aluminum alloy;

2. Accuracy index

  1. Planeness of mounting surface: 0.02 mm;
  2. Average axis rotation verticality of three axes: ± 20 ″;
  3. Roll axis: continuous infinite rotation;
  4. Azimuth axis: continuous infinite rotation;
  5. Pitch axis: continuous infinite rotation;
  6. Rotation error of three-axis inclination: ≤ ± 10 ″;
  7. Three-axis position accuracy: ± 10 ″;
  8. Triaxial position repeatability: ± 5 ″;
  9. Rate range: ± 0.001 °/S ~ ± 500 °/S;


Working environment

(1) Power: 220V ± 10% 50Hz 2KW;

(2) Ambient temperature: general laboratory environment requirements;

(3) Ambient humidity: ≤ 80RH;
