Quartz Accelerometer Test Equipment 20KG Payload Weight For Calibration

1
MOQ
Quartz Accelerometer Test Equipment 20KG Payload Weight For Calibration
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Centrifuge
Load Diameter: ≧800mm
Total Size: Φ 1.2m×0.8m
Weight: 850KG
Payload Weight: 20KG
Power Supply: 380V±10%;50Hz±5Hz
High Light:

Quartz Accelerometer Test Equipment

,

Calibration Accelerometer Test Equipment

,

Accelerometer Test Equipment 20KG

Basic Infomation
Place of Origin: CHINA
Brand Name: AVIC
Model Number: CTF-800
Payment & Shipping Terms
Packaging Details: carton with sponge
Delivery Time: 10 days for sample
Payment Terms: T/T, L/C
Supply Ability: 1/5 months
Product Description

quartz accelerometer test calibrate simulate system, high acceleration range centrifuge for flexure acelerometer test



Specifications​

Item Index Remark
Table top Disk
Table diameter size ≥900mm
Total size Ф1.2m x 0.8m
Weight 850Kg
Payload weight 10kg
Payload size φ300×300
Payload height ≤300mm
power 380V±10%;50Hz±5Hz 20KW
Centrifugal acceleration range 0g~60 g
Centrifugal acceleration accuracy Better than 30ppm in full range
Time to reach full acceleration 70s
Rotary rate accuracy (Any point test) ≤ ± 20 ppm
Rotary rate repeatability (Any point test) ≤ ± 20 ppm
Test payload quantity 4
Slipring number 30 rings
Slipring current nominal value 3A/ring
Dynamic resistance change value 10mΩ





working conditions

Power supply 380V±10%; 50Hz±5Hz

Environment temperature 20℃±5℃

Relative humidity ≤85%



The centrifuge is composed of a mechanical platform, a measurement and control cabinet, and an industrial computer. It is mainly used for calibration and acceleration stress screening tests, and has smooth speed control capabilities.

The equipment adopts a box type, the box cover is made into a half-open (flip type) state, and the box cover is closed when the centrifuge is working. To ensure safety, a tact switch is provided at the cover of the box. When the cover is not covered, the device cannot be powered on.





Mechanical structure

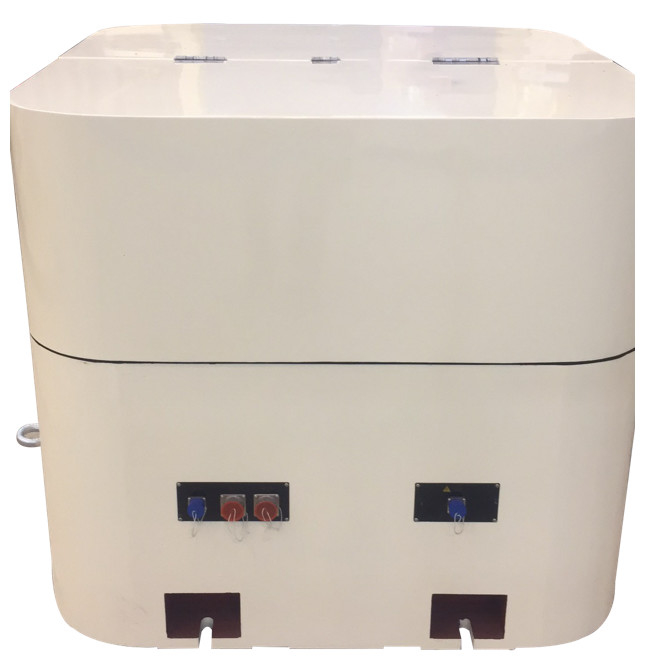

The centrifuge adopts a box-type flip cover design, and a travel switch is set at the box cover to ensure that the equipment cannot be powered on when the box cover is not tightly closed, which improves the safety protection of the operator. The appearance of the centrifuge is shown in Figure 2.

Quartz Accelerometer Test Equipment 20KG Payload Weight For Calibration 0
