High Performance Single Axis Digital Optical Gyro , Low Bias Fiber Optic Gyro
Features Gallery Product Description Request A Quote
Features
Specifications
Measuring Range: -400°/s~+400°/s
Zero-bias Repeatabilitytime: <=0.05°/h
Zero Bias Repeatability: <=0.05°/h
Zero Bias Stability At Full Temperature: <=0.1°/h
Zero Bias Repeatability At Full Temperature: <=0.1°/h
Communication Mode: RS422
High Light:

Single Axis Digital Optical Gyro

,

RS422 Optical Gyro

,

Low Bias Fiber Optic Gyro

Basic Infomation
Place of Origin: CHINA
Brand Name: AVIC
Model Number: F70H
Payment & Shipping Terms
Packaging Details: Sponge+ box
Delivery Time: 30 DAYS
Payment Terms: T/T
Supply Ability: 200/MONTH
Product Description

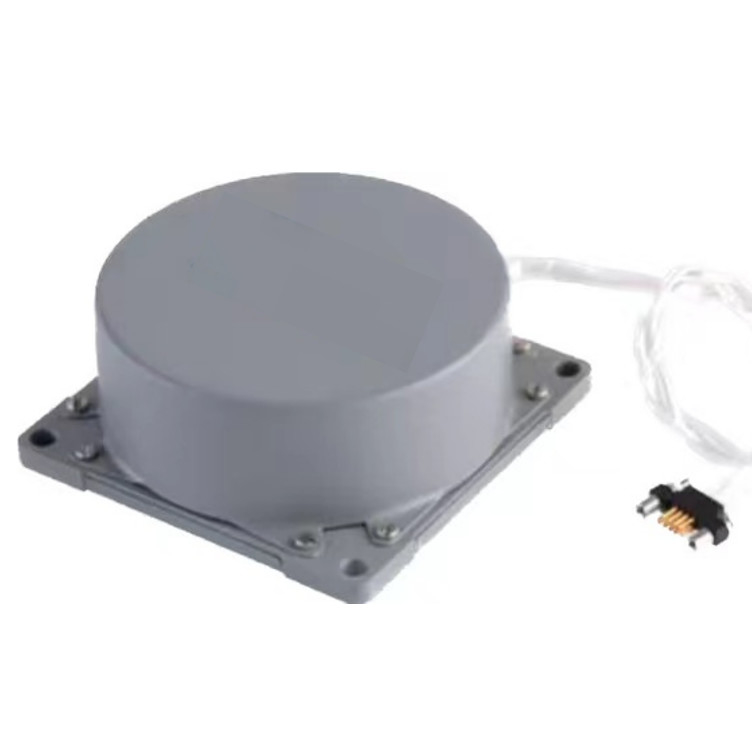

High Performance Single-Axis Digital Optical Gyro Low Bias Cost-Effective Fiber Optic Gyro



Function

F70H Digital Fiber Optic Gyroscope is the most competitive cost-effective fiber optic gyro, which enjoys better zero bias stability and temperature features, it enjoys short startup time, small size, light weight, wide bandwidth, low power consumption, competitive price and excellent magnetic shielding advantages.

F70H Fiber Optic Gyroscope adopts advanced integrated optics and closed-loop Digital Signal Processing (DSP), which has been widely used in land orientation, vehicle north seeker, airborne attitude and boat gyrocompass, etc. FOG70H is the Right choice when selecting a precision solid-state gyroscope component for tactical grade applications.





Applications

1. Tactical Grade Applications

2. Unmanned Aerial Vehicles

3. Missile Guidance

4. Aeronautics and Aviation

5. Robotics



Specs table

Measuring Range  -400°/s~+400°/s
Zero Bias Stability <=0.05°/h (2h continous test, 10s (1σ) smoothing result)
Zero Bias Repeatability <=0.05°/h (6 test data calculation (1σ) result)
Zero Bias Stability at Full Temperature <=0.1°/h (-40~+70°C, 10s (1σ) smoothing result)
Zero Bias Repeatability at Full Temperature <=0.1°/h (-40~+70°C, 10s (1σ) smoothing result)
Scale Factor Non-linearity <=50ppm, room temperature (1σ)
Scale Factor Unsymmetry <=50ppm, room temperature (1σ)
Scale Factor Repeatability <=50ppm, room temperature (1σ)
Random Walk  Coefficient <=0.01°/√h
Start Time <=3minutes, the time from power-on output to reach accuracy
Bandwidth ≥200Hz
Communication Mode RS422
Working Temperature  -40~+70°C
Storage Temperature  -55~+85°C
Power Supply ±5VDC±5% (maximum shock current close to 2A)
Power Ripple 20mV
Power Consumption <=3W  (Room Temperture)
Power Consumption <=5W (Full Temperture -40~+70°C  )
Physical Characteristics
Demension 70mm * 70mm * 31.8mm
Weight <=280g±20g
Installation Hole Distance 58mm*58mm
Mounting Screws M4
Mounting Surface Accuracy Flatness<=0.01mm
