Home Products

IMU Accelerometer Gyro

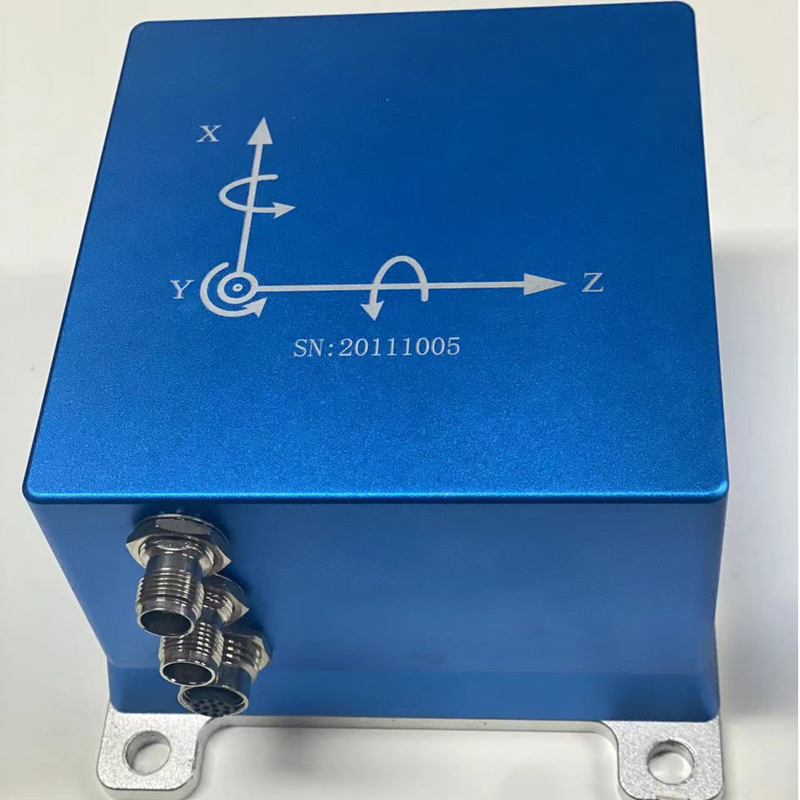

High Performance IMU Accelerometer Gyro Compensated Angular Rate Acceleration Temperature

Name: High Performance IMU Accelerometer Gyro Compensated Angular Rate Acceleration Temperature
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: IMU70
Price: 3,003.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	IMU70
MOQ:	1
Price:	negotiable
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE ROHS

Gyro Measuring Range:

±500°/s

Zero-bias Stability:

≤ 0.1 °/H

Bandwidth:

80Hz

Accelerometer Range:

±5g

Zero Bias Stability:

< 1mg（1σ）

Size:

157mm X 122mm X 81mm

Packaging Details:

paper box

Highlight:

Compensated IMU Accelerometer Gyro

CE High Accuracy IMU

80Hz High Accuracy IMU

Product Description

High Performance IMU Output Compensated Angular Rate Acceleration Temperature

Product Introduction

The IMU70A is a high-performance IMU with an optional inertial/satellite integrated navigation system.

Built-in three-axis fiber optic gyroscope, three-axis MEMS accelerometer, optional BD/GPS/GLONASS/tri-mode receiver.

It can output the compensated angular rate, acceleration, temperature and other information.

Specifications

Gyroscope
Range	±500°/s
Zero bias stability	Second-average sampling, 10-second smoothing, < 0.1 °/H (1σ, typical)
Zero-bias repeatability	Ten times of power on, < 0.1 °/H (1σ, typical value)
Bandwidth	500Hz
Accelerometer
Range	±5g
Zero bias stability	< 1mg(1σ)
Zero-bias repeatability	< 1mg(1σ)
Bandwidth	80Hz

Performance characteristics:

1. -40 ° C to 60 ° C, full temperature calibration;

2, 1 KHz high sampling rate, 1KHz compensation operation;

3, The software, algorithm, and interface protocol can be highly customized according to the user's usage scenario;

4. It can be externally connected with odometer, DVL, vision and radar for integrated navigation.

Overall dimensions
