Home Products

Fiber Optic Gyro

300ppm Low Bias Micro Gyro , Fiber Optic Angular Speed Sensor

Name: 300ppm Low Bias Micro Gyro , Fiber Optic Angular Speed Sensor
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: FCG40B
Price: 10000.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	FCG40B
MOQ:	1
Price:	negotiable
Payment Terms:	T/T
Supply Ability:	100/MONTH

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Scale Factor:

3600 LSB/o/s

Scale Factor Nonlinearity:

≤300 Ppm

Zero-bias Stability (10s, 1σ, °/H):

≤2

Bias （10s,1σ):

≤1.5 °/h

Angular Random Walk (°/H1/2:

≤0.05

Range:

±500 °/s

Packaging Details:

Sponge+ box

Supply Ability:

100/MONTH

Highlight:

Low Bias Micro Gyro

Fiber Optic Angular Speed Sensor

Low Bias Gyro Meter

Product Description

Micro Gyro Fiber Optic Angular Speed Sensor Low Bias Gyro Meter

Installation of the product

The user shall be responsible for the installation and disassembly of the product. During this process, the product shall not be impacted, and the outer surface of the product shall not be machined.

nspection before installation

Check the appearance of the product for physical damage such as collision;

Inspection after installation

Check whether each mounting screw is secure.

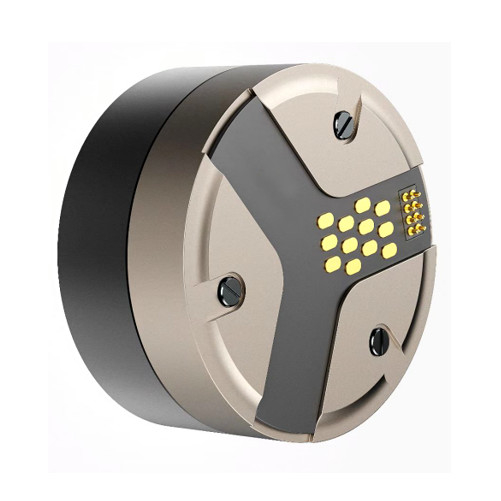

300ppm Low Bias Micro Gyro , Fiber Optic Angular Speed Sensor 0

Performance Parameters

Serial number	Project	Performance indicators
1	Range (°/s)	±500
2	Scale Factor (LSB/o/s)	3600
3	Scale factor nonlinearity (ppm)	≤300
4	Zero-bias stability (10s, 1σ, °/H)	≤2
5	Zero-bias repeatability (1σ, °/H)	≤2
6	Angular random walk (°/H1/2	≤0.05
7	Zero-bias stability at full temperature (10s, 1σ, -40 ℃ ~ + 65 ℃, °/H)	≤5
8	3dB Bandwidth (Hz)	≥400
9	Power supply (V)	5+0.15
10	Power Consumption (W)	≤1.5
11	Dimension (mm)	φ40X20.5

FOG-40 micro-nano fiber optic gyroscope (hereinafter referred to as this product) is an angular rate sensor integrating optics, mechanics and electronics. It is based on the Sagnac effect, integrates a variety of micro-nano fiber devices, and realizes the detection process by detecting, processing and feeding back the phase difference generated by two beams of light propagating in opposite directions.

This product is mainly composed of optical path components, circuit components and structural components. It has the characteristics of simple structure, no moving parts, no wear parts, fast start, small size, light weight and so on. And can be apply to that attitude control and measurement of the carrier.
