Triaxial FOG Fiber Optic Gyro With Data Acquisition Board For High Precision Navigation

1
MOQ
negotiable
Price
Triaxial FOG Fiber Optic Gyro With Data Acquisition Board For High Precision Navigation
Features Gallery Product Description Request A Quote
Features
Specifications
Measuring Range: ±300º/s
Zero Bias Stability At Room Temperature (100s Smoothing, 1σ): ≤0.01º/h
Zero-bias Repeatability: ≤0.1º/h
Random Walk Coefficient: ≤0.001º/h1/2
Scale Factor Repeatability: ≤100ppm
Operating Temperature: -40~+60℃
Supply Voltage: +5V
Bandwidth: >200Hz
Steady-state Power Consumption: ≤7w
Start Time: 1 Min
High Light:

Triaxial FOG Fiber Optic Gyro

,

FOG With Data Acquisition Board

,

FOG Fiber Optic Gyro For Navigation

Basic Infomation
Place of Origin: China
Brand Name: AVIC
Certification: Military standard
Model Number: 30G
Payment & Shipping Terms
Packaging Details: sponge+ box
Delivery Time: 20 days for sample
Payment Terms: T/T
Supply Ability: 50/month
Product Description

Triaxial FOG w/ Data Acquisition Board for High-Precision Navigation



Performance Characteristics



Serial number Test item Unit Technical requirements
1 Measuring range º/s ±300
2

Zero bias stability at room temperature

(100s smoothing, 1σ)

º/h ≤0.01
3 Zero-bias repeatability º/h ≤0.01
4 Random walk coefficient º/h1/2 ≤0.001
5 Scale factor repeatability ppm ≤100
6 Operating temperature -40~+60
7 Storage temperature -50~+70
8 Supply voltage V +5V
9 Bandwidth Hz >200
10 Steady-state power consumption W ≤7
11 Start time min 1
12 Startup instantaneous power consumption W

≤ 10 (within 3s after power on)







This product is an inertial angular rate sensor based on the optical Sagnac effect, which is used to measure the angular rate of the carrier along the sensitive axis of the product. An angular rate sensing unit of the product is an optical fiber ring, a digital closed loop detection circuit is adopted to extract the optical path difference of clockwise and counterclockwise propagation light caused by external physical angular rate and sensed by the optical fiber ring, and meanwhile, a voltage signal converted from an optical path difference signal is subjected to closed loop feedback and control, so that the modulation and demodulation of the signal are realized, and the purpose of high-precision angular rate signal detection is achieved.

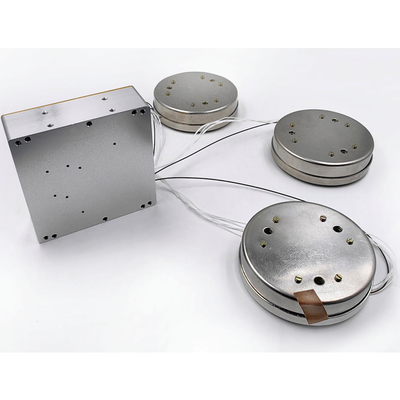

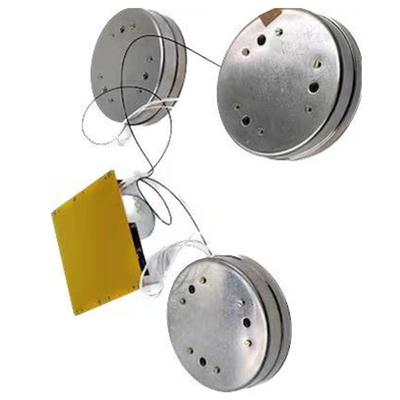

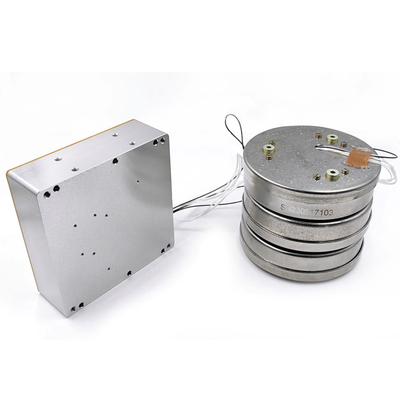

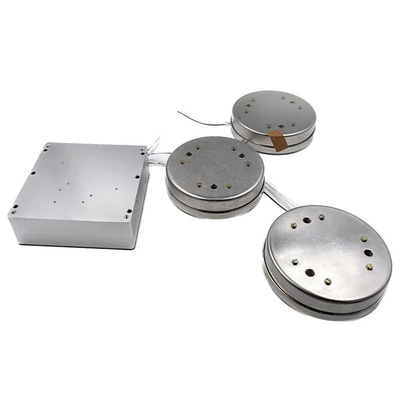

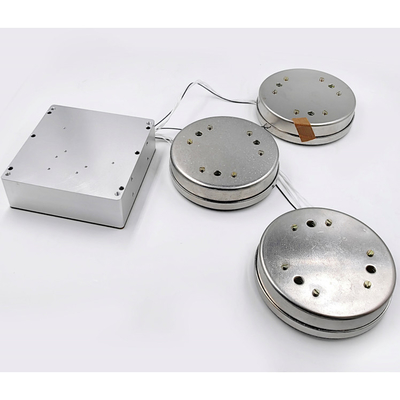

This product consists of an optical angular velocity sensing unit and a signal detection unit, and provides information of three-axis angular increment and internal temperature.

The products are mainly suitable for high-precision inertial navigation systems, positioning and orientation systems and other applications.





Overall dimension of circuit box (mm): (96 ± 0.1) × (96 ± 0.1) × (32.9 ± 0.1) (L × W × H);

Dimension of optical fiber sensing unit (mm): Ф92 × 27;

Installation dimension of circuit box (mm): (88 ± 0.1) × (84 ± 0.1) (L × W), Φ4mm × 4;

Installation dimension of optical fiber sensing unit:

Such asFig. 2 Schematic diagram of installation of sensing unitAs shown.





The product is powered by + 5V DC power supply and does not need negative power supply. Its power supply requirements are as follows: Table Shown:



Serial number Name Request
1 Power supply accuracy ±5%
2 Power ripple (Vpp) 20mV
3 Supply current >2A
