Tactical-Grade IMU Navigation Inertial Measurement Unit for Agricultural Drone Positioning

Brand Name:	Firepower
Model Number:	HG4930C
MOQ:	1
Price:	negotiable
Payment Terms:	T/T
Supply Ability:	50/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Military standard

Zero-bias Stability (@ Allan Variance):

0.2°/h

Scale Factor Nonlinear:

≤100ppm

Zero Bias Repatability:

≤1°/h

Random Walk:

≤0.02 °/√h(1σ)

Vibration:

10~2000Hz，6.06g

Weight:

120g

Packaging Details:

sponge+ box

Supply Ability:

50/month

Highlight:

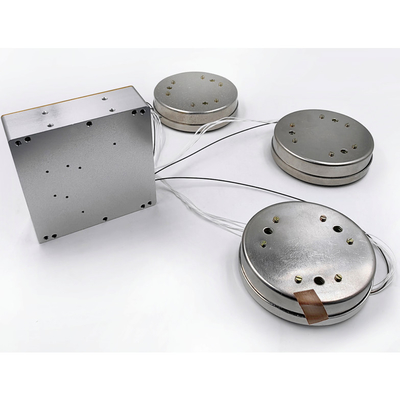

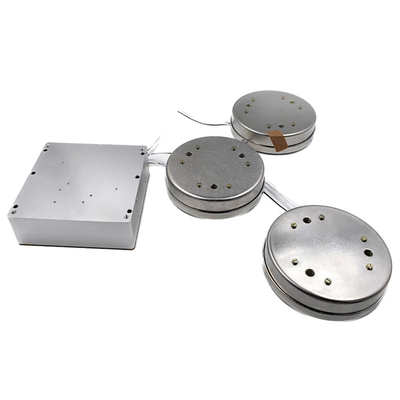

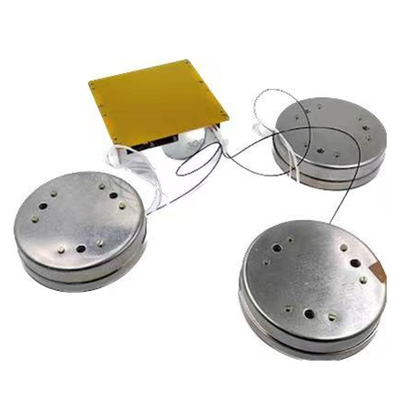

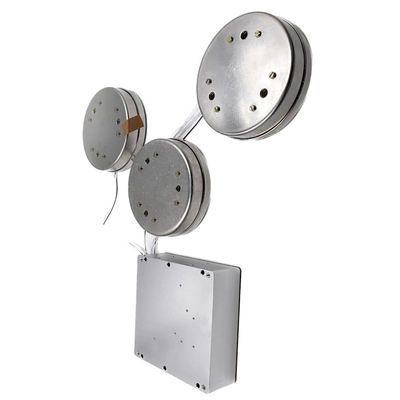

3 Axis Optical Fiber Gyro

Optical Fiber Gyro for Navigation

Low Bias Optical Fiber Gyro

Product Description

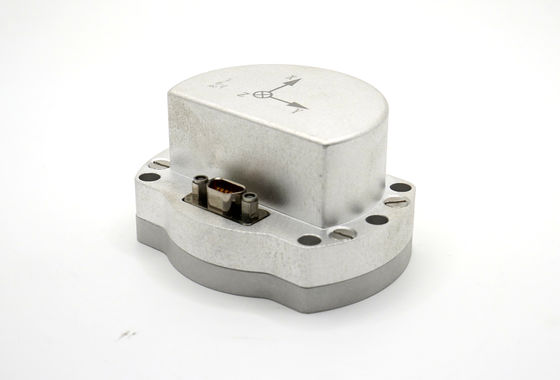

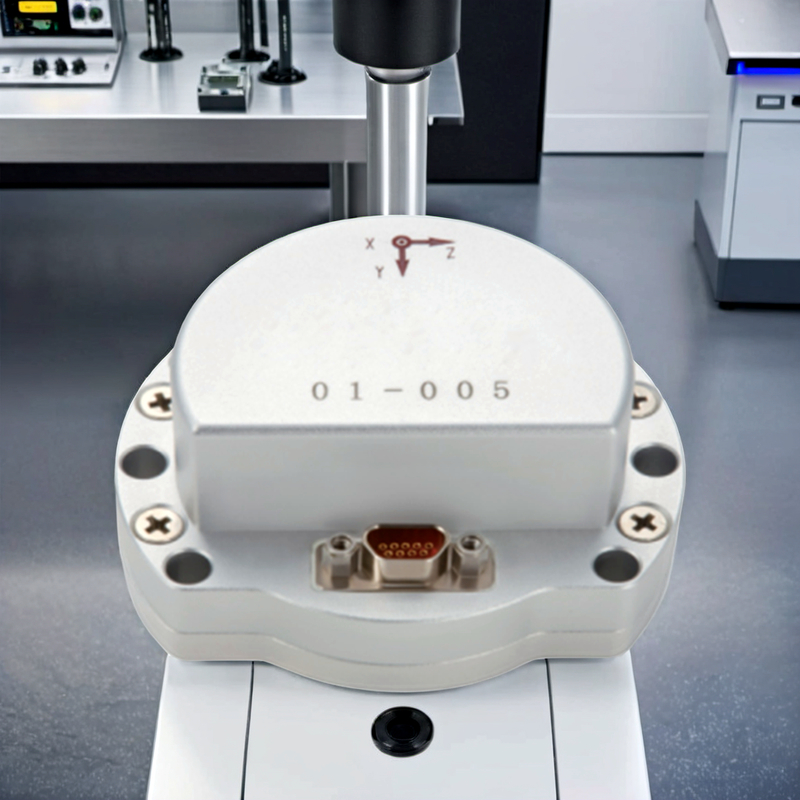

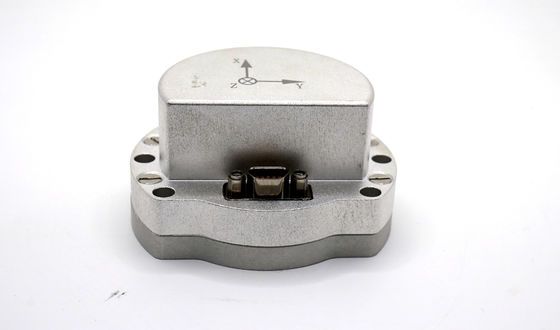

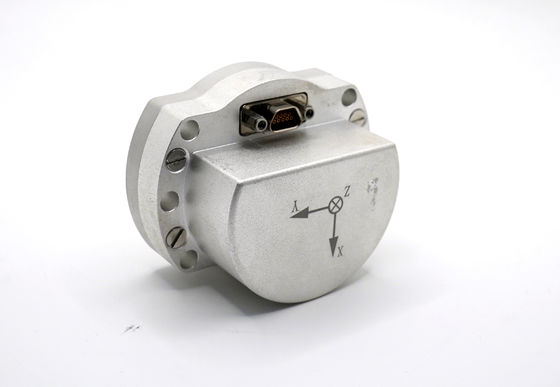

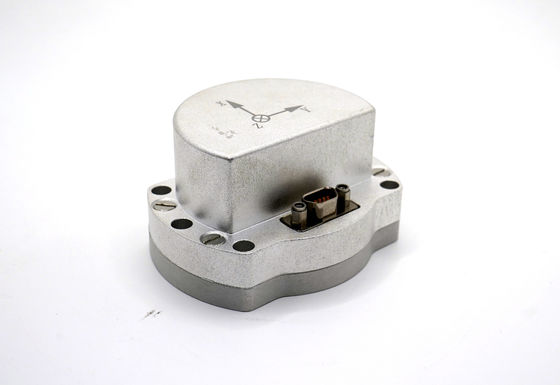

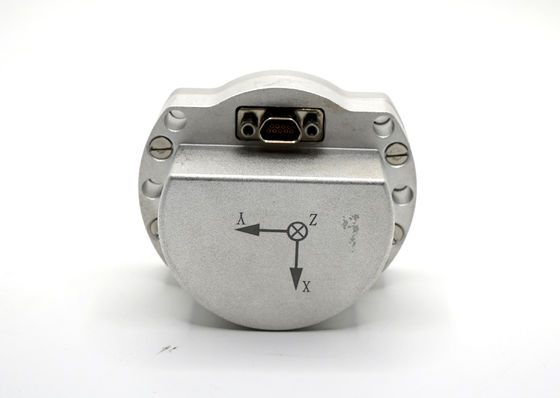

Tactical-Grade IMU Navigation Inertial Measurement Unit for Agricultural Drone Positioning

Honeywell HG4930 MEMS IMU combines a three-axis gyroscope and accelerometer for high-accuracy inertial sensing. It compensates for temperature, misalignment, and nonlinear errors, providing RS-422 output of angular rate, acceleration, and tilt. With ±200°/s gyro, ±30 g accelerometer, 120 g weight, low power 1.5 W, and rugged design for extreme temperatures and shocks, it suits UAVs, autonomous vehicles, robotics, aerospace, and defense applications.

Main Technical Parameters

Gyroscope Specifications

Parameter	Unit	HG4930C
Measuring range (customizable)	°/s	±200
Zero-bias stability (@ Allan variance)	°/h	0.2
Zero-bias stability (10 s smoothing, 1σ, room temperature)	°/h	0.5
Zero-bias error over full temperature range	°/h	2.5
Random walk	°/√h	0.02
Zero-bias repeatability	°/h	1
Zero bias acceleration sensitivity	°/h/g	1
Resolution	°/h	2
Scale factor nonlinearity	ppm	100
Scale factor repeatability	ppm	100
Cross coupling	%	0.2
Bandwidth	Hz	100

Accelerometer Indicators

Parameter	Unit	HG4930C
Measuring range (customizable)	g	±30
Zero-bias stability (Allan Variance @ 25 ℃)	ug	30
Zero-bias stability (1s smoothing)	ug	700
Zero-bias error over full temperature range	mg	1.5
Random walk	m/s/√h	0.01
Zero-bias repeatability	mg	2
Scale factor repeatability	ppm	200
Scale factor nonlinearity	ppm	200
Cross coupling	%	0.2
Bandwidth	Hz	100
