IMU115 MEMS IMU for Precise Vehicle Positioning and Orientation

Name: IMU115 MEMS IMU for Precise Vehicle Positioning and Orientation
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: IMU115
Price: 3,003.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	IMU115
MOQ:	1
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	200/MONTH

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Zero Bias Stability:

≤3°/h

Measuring Range:

500°/s

Overall Dimensions:

22.4mm X 22.4mm X 9.5mm

Weights:

16g

Voltage:

Bandwidth:

80Hz

Packaging Details:

Sponge+ box

Supply Ability:

200/MONTH

Highlight:

sagnac effect fiber optic gyro

compact fiber optic gyro

Product Description

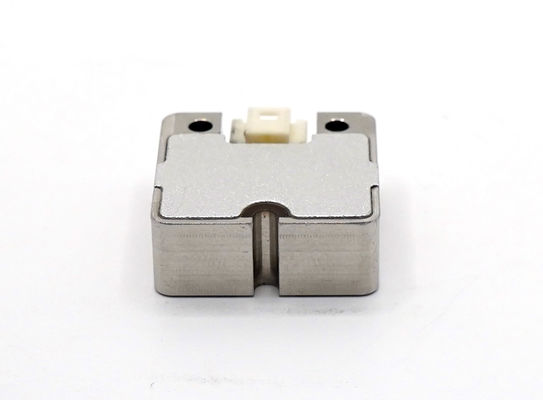

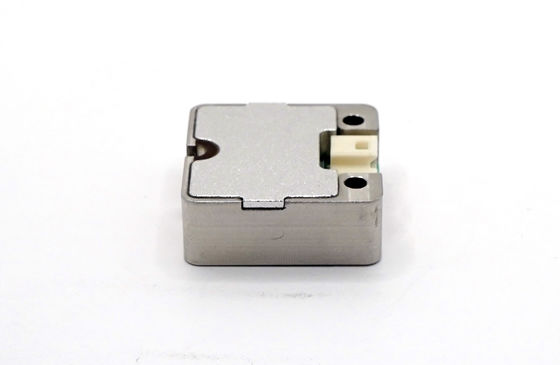

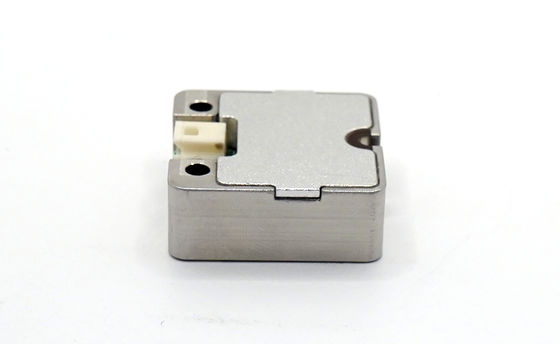

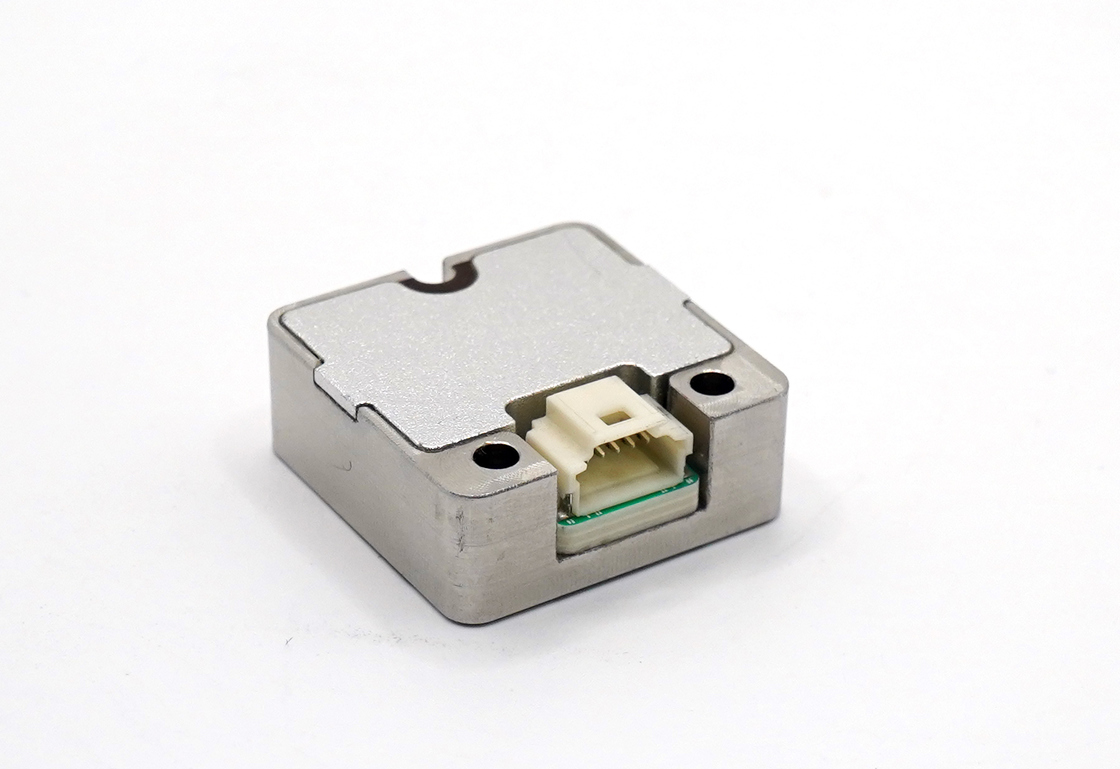

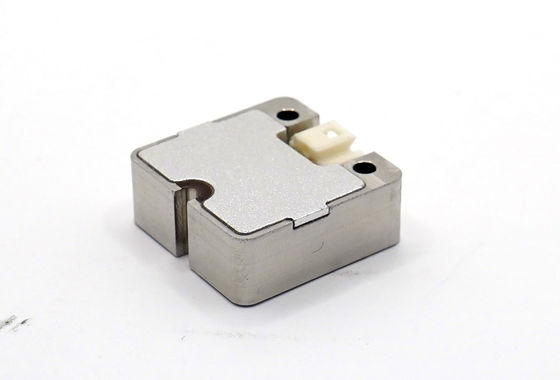

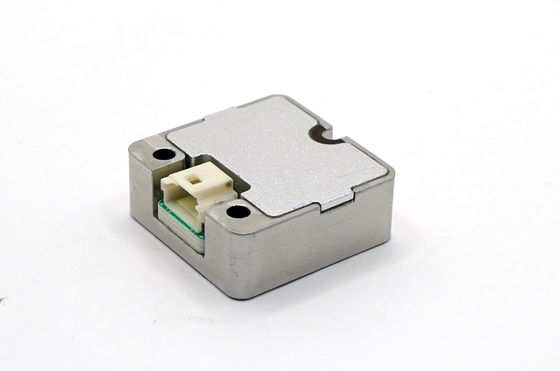

IMU115 MEMS IMU for Precise Vehicle Positioning and Orientation

IMU115 integrates a 3-axis gyroscope and 3-axis accelerometer for accurate 6-axis motion sensing. With ±250°/s gyro, ±4g accelerometer, and built-in compensation algorithms, it delivers reliable performance in harsh temperature, vibration, and shock conditions for UAVs, stabilized platforms, and intelligent driving.

Product Features

Three-axis digital gyroscope:
- ±250º/s dynamic measuring range (500º/s optional)
- Zero bias stability: 10º/h (GJB, 10s, typical value), 6.0º/h (ALLAN, typical value)
Triaxial digital accelerometer:
- ±4g dynamic measurement range (configurable 16g)
- Zero-bias stability: 0.12 mg (GJB, 10s), 0.065 mg (ALLAN)
High reliability: MTBF > 20,000 hours
Guaranteed accuracy within full temperature range (-40℃ to 80℃) with built-in high-performance temperature calibration and compensation algorithm
Suitable for operation under strong vibration conditions
Interface: 1-way UART

Field of Application

Intelligent driving
Communication in motion
Mapping
Stabilized platforms

Product Specifications

Parameter	Test Conditions	Minimum	Typical	Maximum	Unit
Gyroscope
Dynamic measuring range			250	500	º/s
Zero bias stability	Allan variance		3.0		º/h
Zero bias stability	10s average (-40℃ to +80℃, constant temperature)		6.0		º/h
Zero bias range			±0.2		º/s
Zero bias variation over full temperature range			±0.3		º/s
Scale factor accuracy			0.2		%
Scale factor nonlinearity			0.02		%FS
Bandwidth			80		Hz
Accelerometer
Dynamic measuring range			4	16	g
Zero bias stability	Allan variance		0.065		mg
Zero bias stability	10s average (-40℃ to +80℃, constant temperature)		0.12		mg
Zero bias range			±3		mg
Zero bias change in full temperature range			±6		mg
Scale factor accuracy			0.3		%
Scale factor nonlinearity			0.03		%FS
Bandwidth			80		Hz
Communication Interface
1-way UART baud rate			115.2	460.8	Kbps
UART sampling frequency		200	1000		Hz
Electrical Characteristics
Voltage		4.5	5	5.5	V
Power consumption				0.35	W
Ripple (P-P)				20	mV
Structural Characteristics
Size			22.4×22.4×9.5		mm
Weight			16		g
Use Environment
Operating temperature		-40		80	℃
Storage temperature		-45		85	℃
Vibration			20-2000Hz, 3g
Impact			1000g, 0.5ms
Reliability
MTBF			20000		h
Continuous working time			120		h

Note: Zero bias calculation for whole temperature change process (temperature change rate ≤1℃/min, temperature range -40℃ to +80℃)

Structure Outline
