Full Compensation 6-Axis MEMS Inertial Measurement Unit with RS422 Data Interface

Brand Name:	Firepower
Model Number:	HG4930C
MOQ:	1
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	200/MONTH

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Zero Bias Repatability:

≤0.2°/h

Dynamic Range:

±200°/s

Angle Random Walk:

0.02°/√h

Bias Repeatability:

≤1°/h

Bandwidth:

100Hz

Scale Factor Repeatability Ppm:

100ppm

Packaging Details:

Sponge+ box

Supply Ability:

200/MONTH

Highlight:

shock resistance fiber optic gyro

high stability fiber optic gyro

shock resistance optical gyro

Product Description

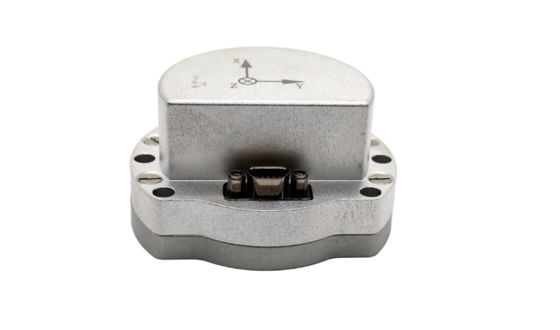

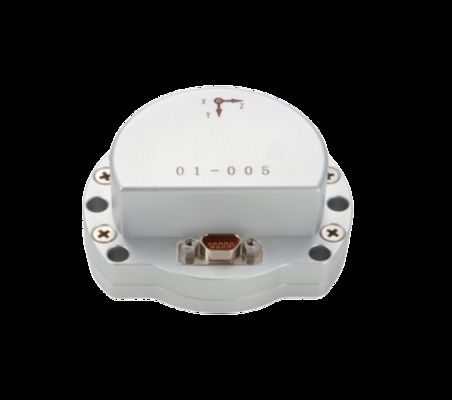

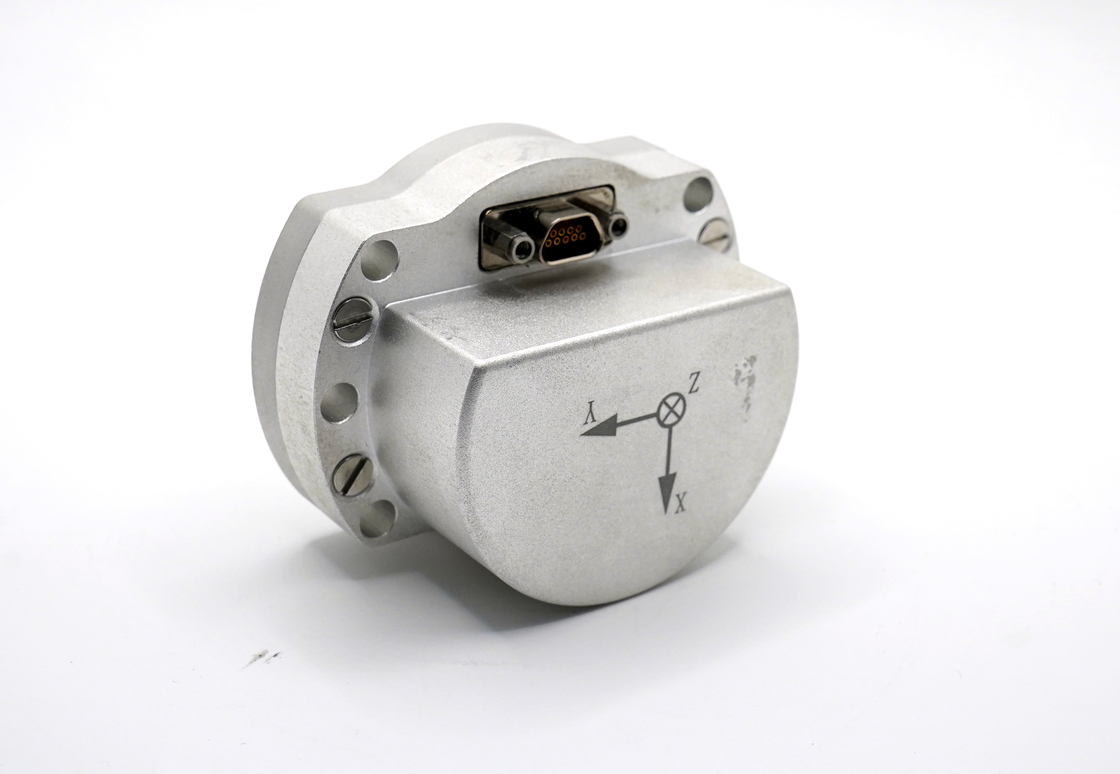

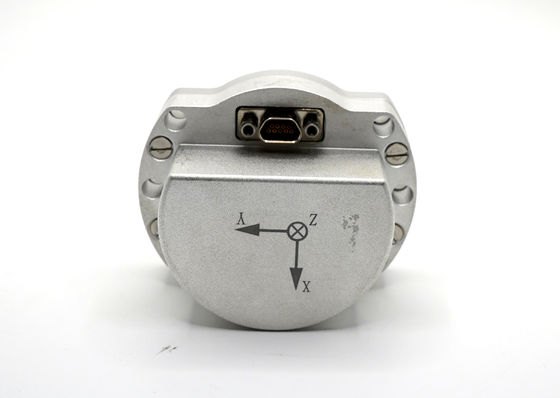

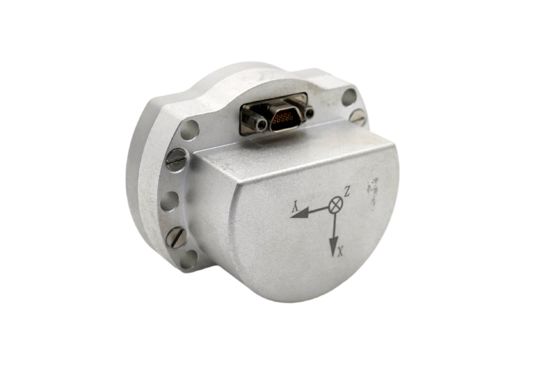

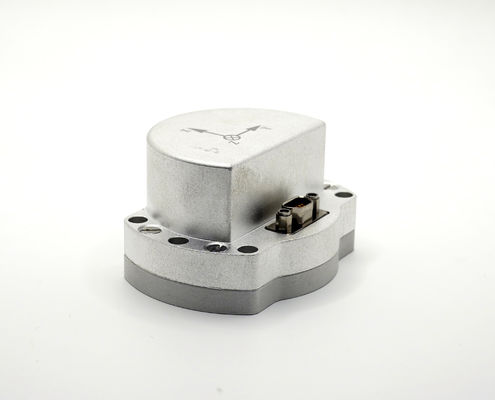

Full Compensation 6-Axis MEMS Inertial Measurement Unit with RS422 Data Interface

The HG4930 IMU is a compact six-axis MEMS sensor that integrates gyroscope and accelerometer functionality. It delivers fully compensated angular rate, acceleration, and inclination measurements via RS-422 interface, including temperature and alignment corrections. With specifications including ±200°/s gyro range, ±30 g accelerometer range, 0.2°/h bias stability, and rugged operation from -45°C to 85°C, this unit is ideal for UAVs, robotics, defense systems, aerospace applications, and autonomous navigation solutions.

Technical Specifications

Gyroscope Specifications

Parameter	Unit	HG4930C
Measuring range (customizable)	°/s	±200
Zero-bias stability (@ Allan variance)	°/h	0.2
Zero-bias stability (10 s smoothing, 1σ, room temperature)	°/h	0.5
Zero-bias error over full temperature range	°/h	2.5
Random walk	°/√h	0.02
Zero-bias repeatability	°/h	1
Zero bias acceleration sensitivity	°/h/g	1
Resolution	°/h	2
Scale factor nonlinearity	ppm	100
Scale factor repeatability	ppm	100
Cross coupling	%	0.2
Bandwidth	Hz	100

Accelerometer Indicators

Parameter	Unit	HG4930C
Measuring range (customizable)	g	±30
Zero-bias stability (Allan Variance @ 25 ℃)	ug	30
Zero-bias stability (1s smoothing)	ug	700
Zero-bias error over full temperature range	mg	1.5
Random walk	m/s/√h	0.01
Zero-bias repeatability	mg	2
Scale factor repeatability	ppm	200
Scale factor nonlinearity	ppm	200
Cross coupling	%	0.2
Bandwidth	Hz	100

Electrical Characteristics

Parameter	Unit	HG4930C
Voltage	V	5
Power consumption	W	1.5
Ripple	mV	100

Environmental Adaptability

Parameter	Unit	HG4930C
Operating temperature	℃	-45~85
Storage temperature	℃	-60~105
Vibration	--	10~2000Hz,6.06g
Impact	--	15000g,4ms

Physical Characteristics

Parameter	Unit	HG4930C
Weight	g	120

Structural Installation
