ADIS16488 Tactical Grade 9-Axis Inertial Measurement Unit for Mining Machinery

Name: ADIS16488 Tactical Grade 9-Axis Inertial Measurement Unit for Mining Machinery
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: 16488HA
Price: 3,003.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	16488HA
MOQ:	1
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	200/MONTH

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Bandwidth:

250 Hz

Bias Instability:

≤0.15°/h, 10s, 1σ

Bias Repeatability:

≤5°/h

Random Walk:

0.15º/√h

Scale Factor Nonlinearity:

100ppm

Scale Factor Repeatability:

100ppm

Packaging Details:

Sponge+ box

Supply Ability:

200/MONTH

Highlight:

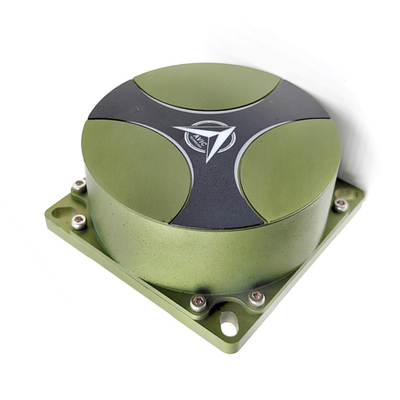

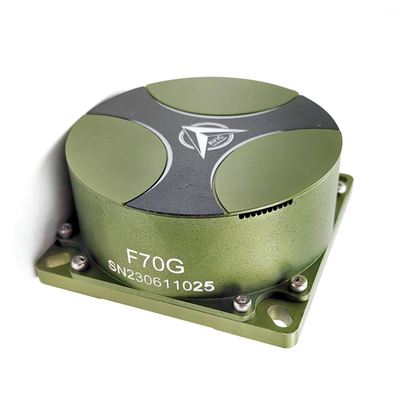

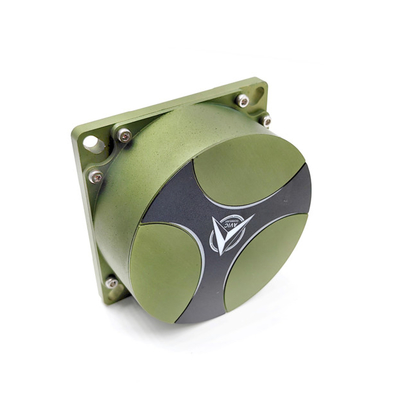

aeronautics fiber optic gyro

fiber optic gyro single axis

aeronautics fiber optic gyroscope

Product Description

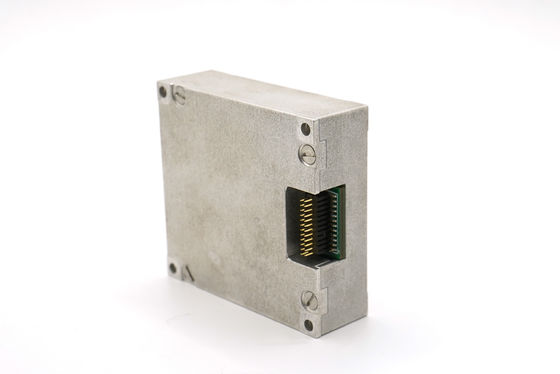

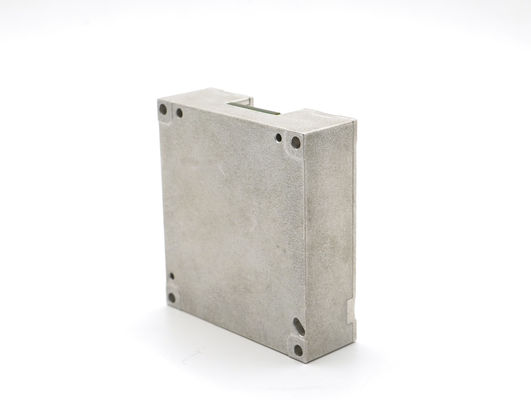

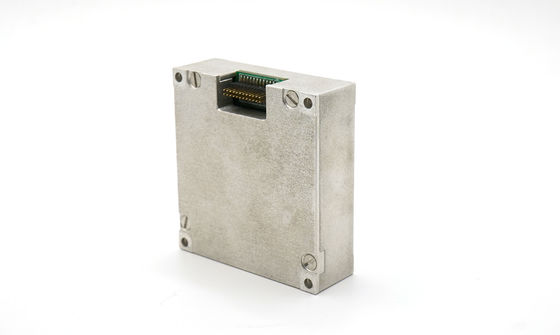

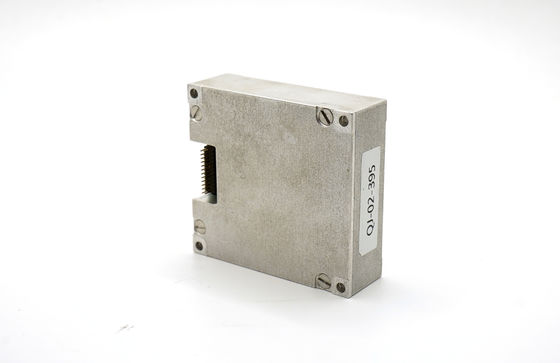

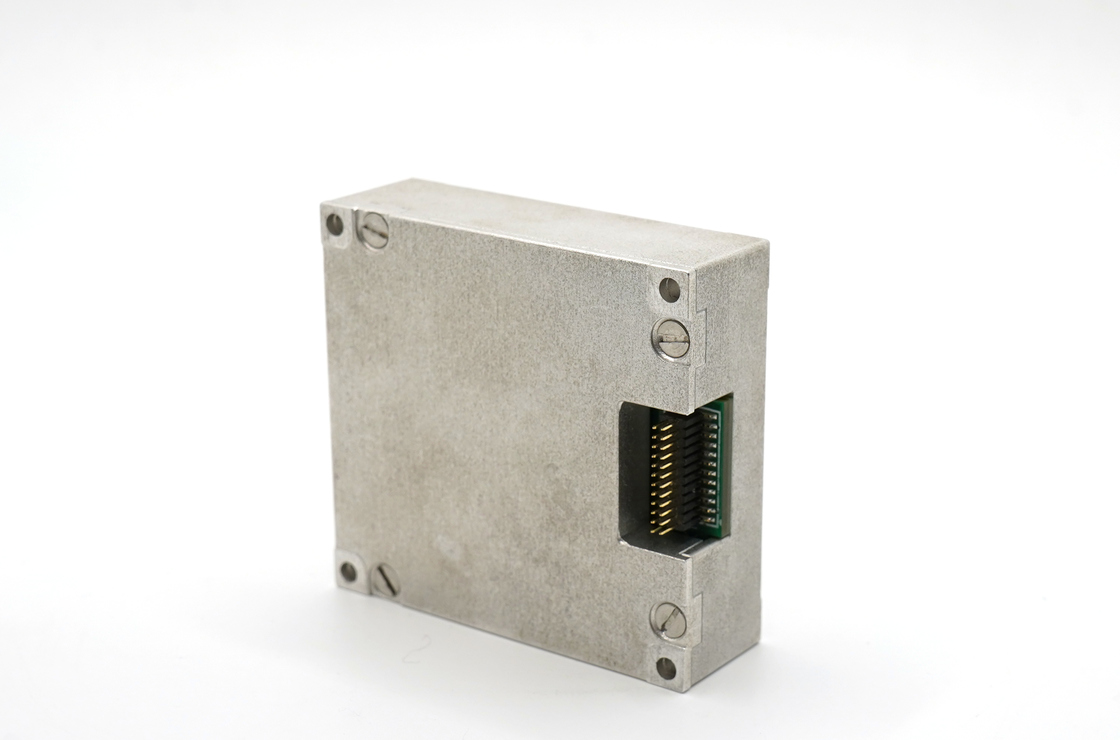

ADIS16488 Tactical Grade 9-Axis Inertial Measurement Unit for Mining Machinery

The ADIS16488HA MEMS Inertial Measurement Unit delivers high-precision six-axis motion sensing with a three-axis gyroscope and accelerometer, featuring ±450°/s and ±20 g measurement ranges. With exceptional 0.3°/h gyro zero-bias instability and 0.25 mg accelerometer bias, this unit includes onboard compensation for temperature (-45~85 °C), misalignment, and nonlinearities. Its SPI communication (8-15 MHz), 1.5 W power consumption, compact design, 250 Hz bandwidth, and 0.1% cross-coupling make it ideal for UAV navigation, autonomous vehicles, robotics, industrial automation, precision surveying, systems, motion tracking, marine navigation, and defense applications.

Technical Parameters

Parameter	Test conditions	Minimum value	Typical value	Maximum value	Unit
Gyroscope
Dynamic measuring range				±450	º/s
Zero-bias instability	Allan variance, better than		0.3		º/h
Zero bias stability	10s smooth, RMS, better than		3		º/h
Zero bias in full temperature range	-40 ℃ ~ 85 ℃, 10 s smooth, rms		20		º/h
Random walk	1σ		0.15		º/√h
Zero-bias repeatability	1σ		5		º/h
Scale factor repeatability	1σ		100		ppm
Scale factor nonlinearity	1σ		100		ppm
Bandwidth (-3dB)			250		Hz
Cross coupling			0.1		%
Resolution			2		º/h
Acceleration sensitivity			2		°/h/g
Accelerometer
Dynamic measuring range				±20	g
Zero bias stability	Allan variance		0.07		mg
Zero bias in full temperature range	-40 ℃ ~ 85 ℃, 10 s smooth, rms		3		mg
Zero bias stability	10s smooth, RMS, better than		0.25		mg
Random walk	1σ		0.029		m/s/√h
Zero-bias repeatability	1σ		0.5		mg
Scale factor repeatability	1σ		500		ppm
Scale factor nonlinearity	FS=20g		500		ppm
Bandwidth (-3dB)			250		Hz
Cross coupling			0.1		%
Communication Interface
1-way SPI	Enter the clock frequency		8	15	MHz
Electrical characteristics
Voltage	Direct current		3.3		V
Power consumption			1.5	1.5	W
Ripple	P-P		48±2	100	mV
Use environment
Operating temperature		-45		85	℃
Storage temperature		-55		85	℃

Outline Drawing

Connector

Axial Direction
