High Accuracy 0.3°/h Inertial Measurement Unit for AGV Platform

Name: High Accuracy 0.3°/h Inertial Measurement Unit for AGV Platform
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: 16488HA
Price: 3,003.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	16488HA
MOQ:	1
Price:	negotiable
Payment Terms:	T/T
Supply Ability:	50/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Military standard

Random Walk:

≤0.15° /√h

Measurement Range:

±450°/s

Bias Repeatability:

≤5°/h

Zero-bias Instability:

0.3º/h

Scale Factor Repeatability:

100ppm

Power Consumption:

1.5W

Packaging Details:

sponge+ box

Supply Ability:

50/month

Highlight:

500 deg/s range fiber gyroscope

fiber gyroscope three axis

Product Description

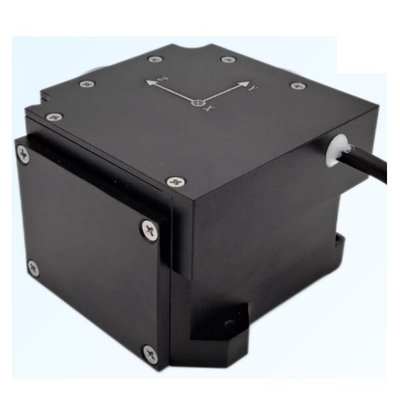

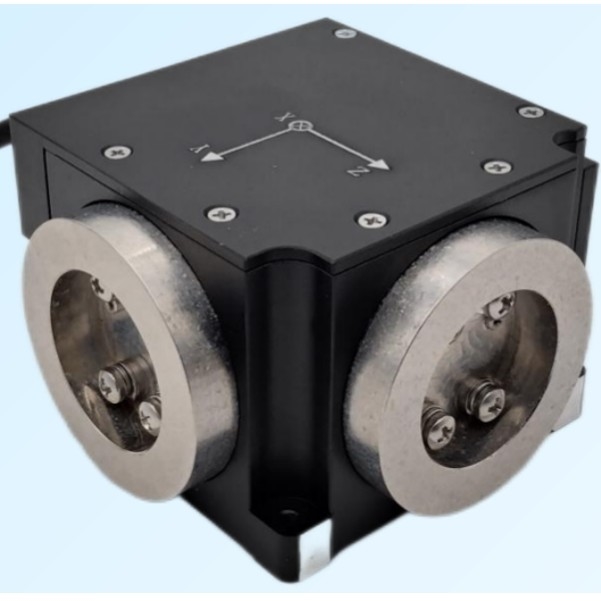

High Accuracy 0.3°/h Inertial Measurement Unit for AGV Platform

The 16488HA is a high-precision MEMS IMU featuring integrated three-axis gyroscope and accelerometer. It delivers ±450°/s angular rate and ±20g acceleration measurements with exceptional accuracy. Key specifications include 0.3°/h gyro zero-bias instability, 0.25mg accelerometer bias, low random walk, and high scale factor linearity. With full temperature compensation (-45~85°C), misalignment correction, and nonlinear compensation, it provides reliable inertial data for demanding applications.

Technical Specifications

Parameter	Test conditions	Minimum value	Typical value	Maximum value	Unit
Gyroscope
Dynamic measuring range				±450	º/s
Zero-bias instability	Allan variance, better than		0.3		º/h
Zero bias stability	10s smooth, RMS, better than		3		º/h
Zero bias in full temperature range	-40℃ ~ 85℃, 10 s smooth, rms		20		º/h
Random walk	1σ		0.15		º/√h
Zero-bias repeatability	1σ		5		º/h
Scale factor repeatability	1σ		100		ppm
Scale factor nonlinearity	1σ		100		ppm
Bandwidth (-3dB)			250		Hz
Cross coupling			0.1		%
Resolution			2		º/h
Acceleration sensitivity			2		°/h/g
Accelerometer
Dynamic measuring range				±20	g
Zero bias stability	Allan variance		0.07		mg
Zero bias in full temperature range	-40℃ ~ 85℃, 10 s smooth, rms		3		mg
Zero bias stability	10s smooth, RMS, better than		0.25		mg
Random walk	1σ		0.029		m/s/√h
Zero-bias repeatability	1σ		0.5		mg
Scale factor repeatability	1σ		500		ppm
Scale factor nonlinearity	FS=20g		500		ppm
Bandwidth (-3dB)			250		Hz
Cross coupling			0.1		%
Communication Interface
1-way SPI	Enter the clock frequency	8		15	MHz
Electrical characteristics
Voltage	Direct current		3.3		V
Power consumption			1.5	1.5	W
Ripple	P-P		48±2	100	mV
Use environment
Operating temperature		-45		85	℃
Storage temperature		-55		85	℃

Outline Drawing

Connector

Axial Direction
