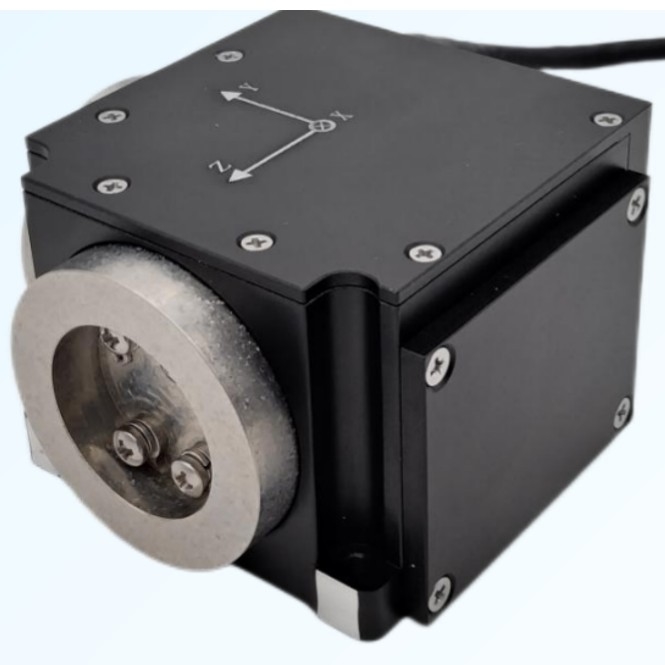

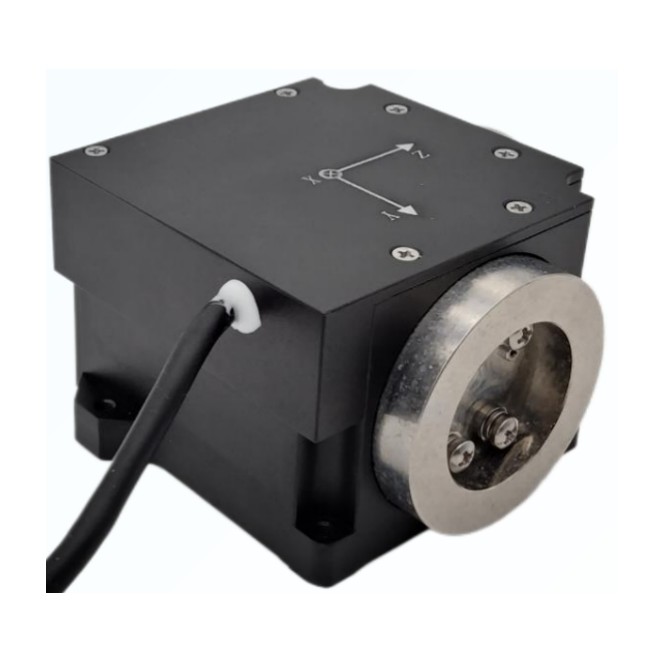

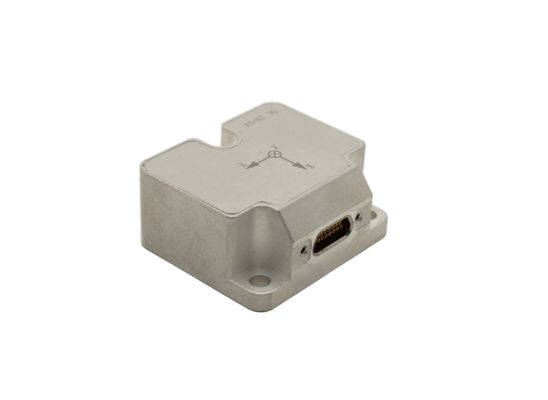

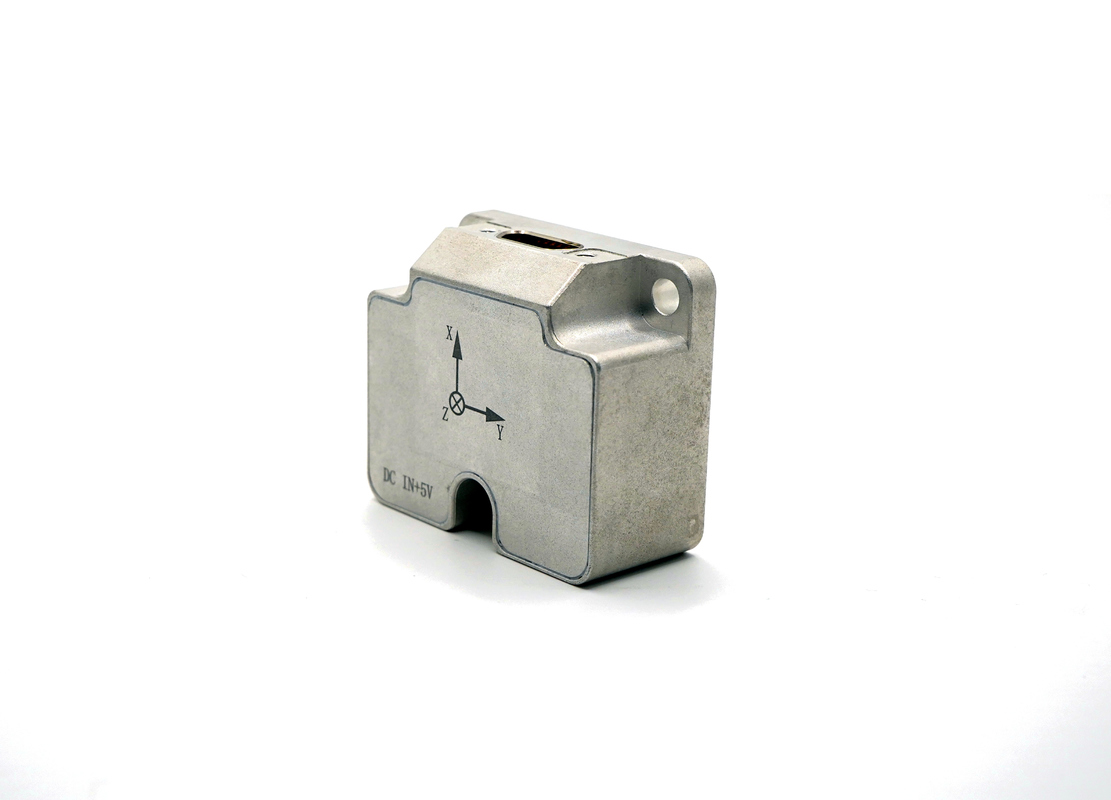

Low Bias Fiber Ring Gyro Three Axes Optical Gyro
This product is a three-axis fiber optic gyro, The fiber ring and circuit acquisition board are designed separately,
which can avoid the influence of the circuit temperature changing to affect the fiber accuracy. We can provide
customers with separate three-axis gyro, and we can also customize the installation to the structure according
to customer requirements to complete the three-axis calibration.
The product is powered by + 5V DC power supply and does not need negative power supply. Its power supply requirements are as follows: Table Shown:
| Serial number | Name | Request |
| 1 | Power supply accuracy | ±5% |
| 2 | Power ripple (Vpp) | 20mV |
| 3 | Supply current | >2A |
Performance Characteristics
| Parameters | 3OG-92 | 3OG-98 | 3OG-120HC |
| Overall dimensions/mm |
Φ92×27/Fiber Head 96×96×33/Circuit |
Φ92×27/Fiber Head 60×60×28/Circuit |
Φ120*32/Fiber Head 60×60×28/Circuit |
| Start time/min | 1 | Power-on bias stability index | |
| Bias stability at room temperature (constant temperature)/°/h | ≤ 0.01 /10s |
≤ 0.005 /10s ≤ 0.002 /100s |
≤ 0.003 /10s ≤ 0.001 /100s |
| Bias stability in full temperature/ 100s/°/h | ≤0.02 | ≤ 0.01 | ≤0.008 |
| Zero-bias repeatability/°/h | ≤0.003 | ≤0.0015 | ≤0.001 |
| Zero-bias sensitivity/°/h/Gs | ≤0.02 | ≤ 0.01 | ≤0.008 |
| Random walk coefficient/º/h1/2 | ≤0.001 | ≤0.0005 | ≤0.0003 |
| Scale factor non-linearity/ppm | ≤15 | ≤10 | ≤5 |
| Scale factor asymmetry/ppm | ≤2 | ≤2 | ≤2 |
| Scale factor repeatability/ppm | ≤15 | ≤10 | ≤10 |
| Bandwidth/Hz | ≥200 | ≥200 | ≥200 |
| Sampling frequency/Hz | 1K | 1K | 1K |
| Operating temperature/℃ | -45～+70 | -40～+60 | -40～+60 |
| Storage temperature/℃ | -50～+70 | -50～+70 | -50～+70 |
| Dynamic range/°/s | ±500 | ±500 | ±500 |
| Supply voltage/V | +5 | +5 | +5 |
| Steady-state power consumption/W | ≤4 (Romm temperature) ≤8 (full temperature) | ||
Dimensions
30G three axes fiber gyro triaxial gyro 3 axes opt...
