Analog Devices ADIS16488 MEMS IMU with Built-In Gyroscope Accelerometer and Magnetometer

Name: Analog Devices ADIS16488 MEMS IMU with Built-In Gyroscope Accelerometer and Magnetometer
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: 16488HA
Price: 3,003.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	16488HA
MOQ:	1
Price:	negotiable
Payment Terms:	T/T
Supply Ability:	50/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Military standard

Range:

±450°/s

Bias Instability:

≤0.15º/h

Random Walk Cefficient:

≤0.15°/√h

Scale Factor Nolinearity:

≤100ppm

Bandwidth:

250Hz

Resolution:

2º/h

Packaging Details:

sponge+ box

Supply Ability:

50/month

Highlight:

low bias fiber optic gyro

30g fiber optic gyro

low bias fiber optic gyroscope

Product Description

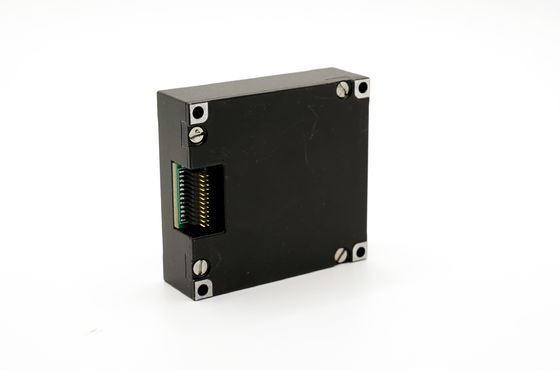

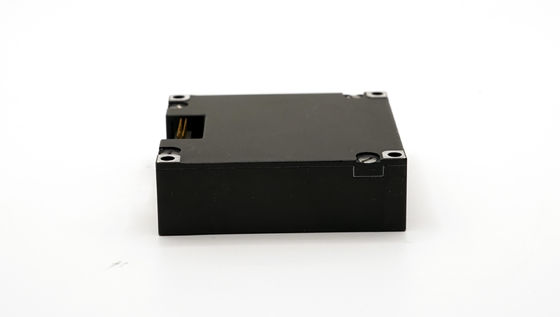

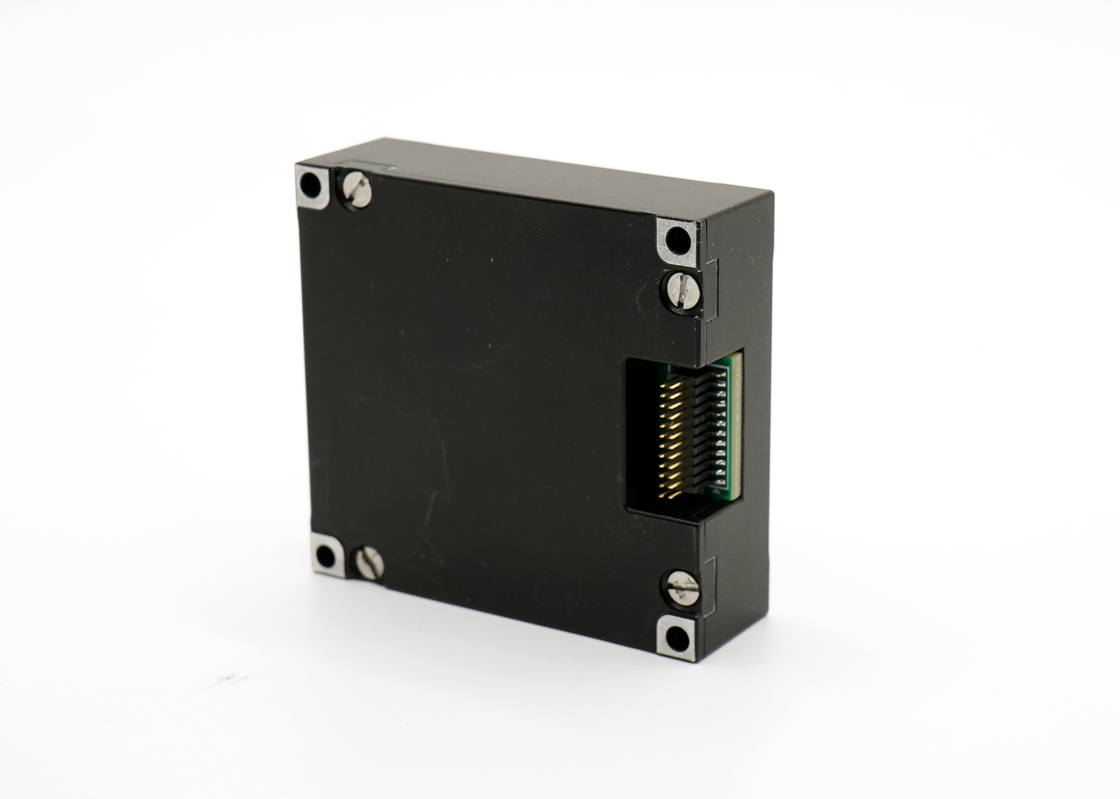

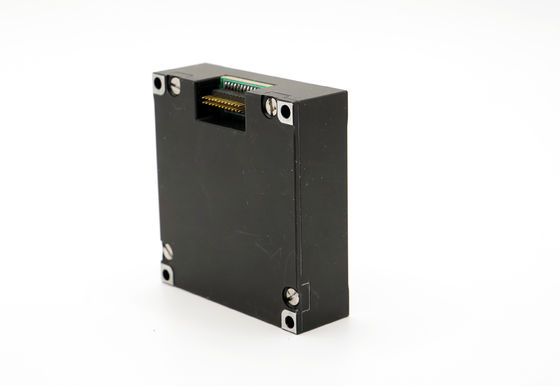

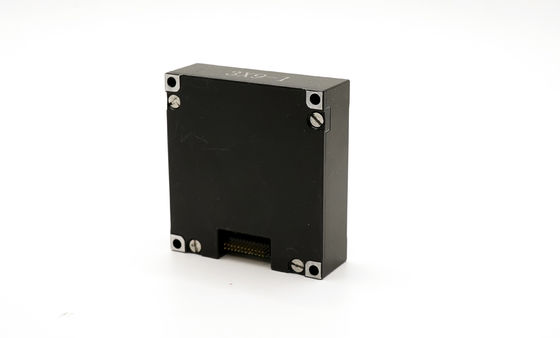

Analog Devices ADIS16488 MEMS IMU with Built-In Gyroscope Accelerometer and Magnetometer

The ADIS16488HA is a high-performance MEMS IMU integrating a three-axis gyroscope and accelerometer, capable of ±450°/s angular rate and ±20 g acceleration measurements. Featuring 0.3°/h gyro zero-bias instability, 0.25 mg accelerometer bias, low random walk, and high linearity, it delivers precise inertial data. Full compensation for temperature (-45~85 °C), installation misalignment, and nonlinearities ensures accurate and stable performance. SPI communication at 8-15 MHz, 1.5 W power, 250 Hz bandwidth, and 0.1 % cross-coupling make it perfect for UAVs, robotics, autonomous vehicles, industrial automation, and mobile mapping applications.

Technical Specifications

Parameter	Test conditions	Minimum value	Typical value	Maximum value	Unit
Gyroscope
Dynamic measuring range				±450	º/s
Zero-bias instability	Allan variance, better than		0.3		º/h
Zero bias stability	10s smooth, RMS, better than		3		º/h
Zero bias in full temperature range	-40 ℃ ~ 85 ℃, 10 s smooth, rms		20		º/h
Random walk	1σ		0.15		º/√h
Zero-bias repeatability	1σ		5		º/h
Scale factor repeatability	1σ		100		ppm
Scale factor nonlinearity	1σ		100		ppm
Bandwidth (-3dB)			250		Hz
Cross coupling			0.1		%
Resolution			2		º/h
Acceleration sensitivity			2		°/h/g
Accelerometer
Dynamic measuring range				±20	g
Zero bias stability	Allan variance		0.07		mg
Zero bias in full temperature range	-40 ℃ ~ 85 ℃, 10 s smooth, rms		3		mg
Zero bias stability	10s smooth, RMS, better than		0.25		mg
Random walk	1σ		0.029		m/s/√h
Zero-bias repeatability	1σ		0.5		mg
Scale factor repeatability	1σ		500		ppm
Scale factor nonlinearity	FS=20g		500		ppm
Bandwidth (-3dB)			250		Hz
Cross coupling			0.1		%
Communication Interface
1-way SPI	Enter the clock frequency		8	15	MHz
Electrical characteristics
Voltage	Direct current		3.3		V
Power consumption			1.5	1.5	W
Ripple	P-P		48±2	100	mV
Use environment
Operating temperature		-45		85	℃
Storage temperature		-55		85	℃

Product Diagrams

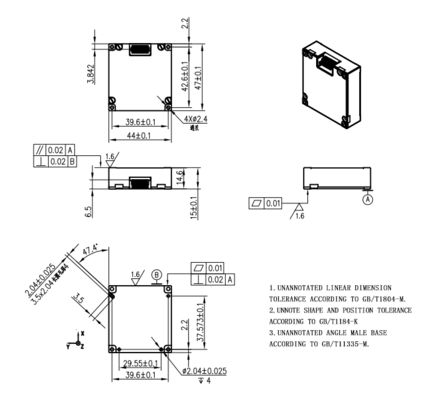

Outline Drawing

Connector Diagram

Axial Direction Diagram
