Product Name: INS Navigation System
Positioning Accuracy: 1.5nm/h
Heading Accuracy: 0.1°
Attitude Accuracy: 0.03°
Speed Accuracy: 0.1m/s(RMS)
Gyro Scope: ±400°/s
Gyro Zero Bias Stability: ≤0.02°/h
Accelerometer Range: ±20g
Accelerometer Zero Bias Stability: ≤50µg
Working Temperature: -40℃~+60℃
High Light:

GNSS integrated inertial navigation system

,

GNSS Integrated INS

Basic Infomation
Place of Origin: CHINA
Brand Name: AVIC
Certification: CE ROHS
Model Number: GI500-A0
Payment & Shipping Terms
Packaging Details: sponge+box
Delivery Time: 15 days for sample
Payment Terms: T/T
Supply Ability: 100/month
Product Description

Fiber optic GNSS integrated inertial navigation system gyroscope sensors Attitude



Product Description

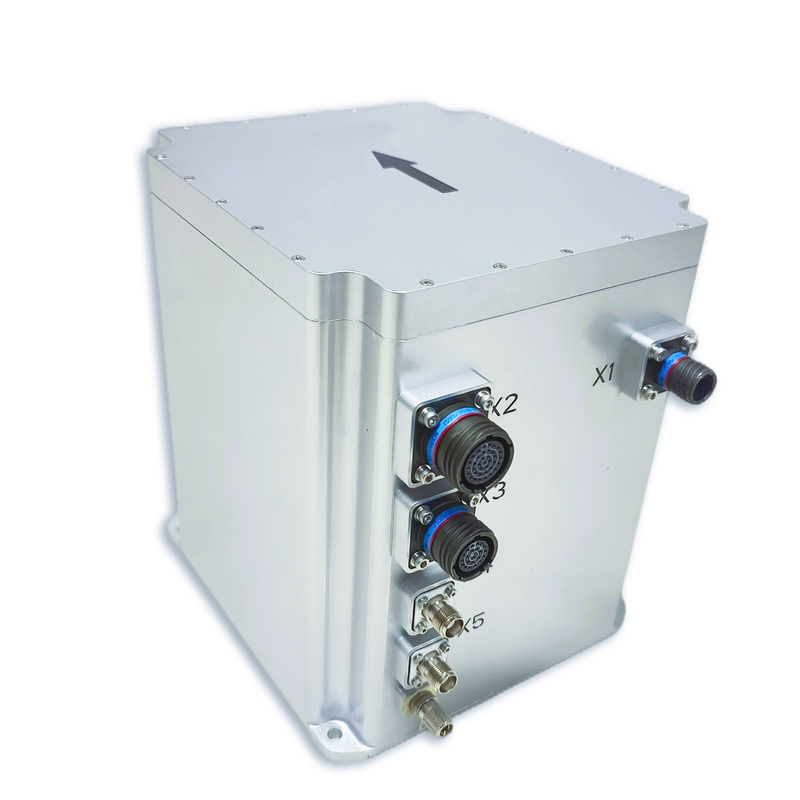

The GI500-A0 fiber optic integrated navigation system is based on high-precision closed-loop fiber optic gyroscopes, accelerometers, and high-end GNSS receiving boards. It is implemented through multi-sensor fusion and navigation calculation algorithms, providing high-precision heading, velocity, and position information to the outside world, meeting the requirements of high-precision measurement and control.



Main application areas



Large scale unmanned aerial vehicle reference inertial navigation

Ship Compass

Self propelled artillery orientation

Vehicle positioning and orientation

High precision mobile measurement

High precision stable platform



Product features



The system has  inertial/satellite integrated navigation mode and pure inertial mode.

Inertial navigation has a built-in GNSS board. When GNSS is effective, inertial navigation can combine with GNSS for navigation and provide users with combined navigation parameters such as position, altitude, velocity, attitude, heading, acceleration, angular velocity, etc. At the same time, it outputs GNSS position, altitude, velocity, and other information.

When GNSS is ineffective, it can enter pure inertial mode (i.e. GPS fusion has never been performed after power on, and if the fusion is lost again, it belongs to integrated navigation mode). After activation, it has precise attitude measurement function, can output pitch and roll heading, and pure inertial can static seek north.



Technical indicators

Items Test Conditions A0-Indicators B0-Indicators
Positioning accuracy GNSSValid, single point 1.2m(RMS) 1.2m(RMS)
GNSSValid,RTK 2cm+1ppm(RMS) 2cm+1ppm(RMS)
Position holding (GNSS failure) 1.5nm/h(50%CEP),5nm/2h(50%CEP) 0.8nm/h(CEP),3.0nm/3h(CEP)
Heading accuracy North-seekingit self

0.1°×sec(Lati),

*Lati:latitude (RMS),10min

0.06°×sec(Lati),Static base 5min alignment;

0.03°×sec(Lati),Static base 5min alignment;*Lati:latitude (RMS)

Course keeping (GNSS failure) 0.05°/h(RMS),0.1°/2h(RMS) 0.02°/h(RMS),0.05°/3h(RMS)
Attitude accuracy GNSS Valid 0.03°(RMS) 0.01°(RMS)
Attitude holding (GNSS failure) 0.02°/h(RMS),0.06°/2h(RMS) 0.01°/h(RMS),0.03°/3h(RMS)
Speed accuracy GNSS Valid, single pointL1/L2 0.1m/s(RMS) 0.1m/s(RMS)
Speed retention (GNSS failure) 2m/s/h(RMS),5m/s/2h(RMS) 0.8m/s/h(RMS),3m/s/3h(RMS)
Fiber optical gyro Measuring range ±400°/s ±400°/s
Bias stability ≤0.02°/h ≤0.01°/h
Quartz flexibleaccelerometer Measuring range ±20g ±20g
Bias stability ≤50µg(10s Average) ≤20µg(10s平均)
Communication interface RS422 6waysThe baud rate ranges from 9.6 KBPS to 921.6 KBPS. The default baud rate is 115.2 KBPSThe maximum frequency is 1000Hz(raw data), and the default frequency is 200Hz
RS232 1 wayThe baud rate ranges from 9.6 KBPS to 921.6 KBPS. The default baud rate is 115.2 KBPSThe maximum frequency is 1000Hz(raw data), and the default frequency is 200Hz
Electrical characteristics Voltage 24~36VDC
Power consumption ≤30W
Structural characteristics Dimension 199mm×180mm×219.5mm
Weight 6.5kg ≤7.5kg(non-aviation)≤6.5kg (aviation optional)
Environment Working temperature -40℃~+60℃
Storage temperature -45℃~+65℃
Vibration (with damping) 5~2000Hz,6.06g
Impact (with shock absorption) 30g,11ms
Reliability Lifetime >15years
Continuous working time >24



Size

Fiber Optic GNSS Integrated Inertial Navigation System Gyroscope Sensors Attitude 0

                        L199mm x W180mm x H219.5mm(L x W x H)
