Advanced Temperature Controlled Three-Axis Test Turntable for Inertial Sensor Testing
Product Description

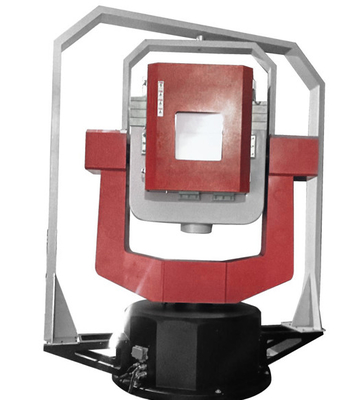

3KTD-565 is three axis automatic frame type multi-functional inertial navigation test equipment. It has position, rate, swing and serve function and so on. It proceeds all function test and experience of inertial system and inertial parts. The turntable is controlled by computer and it has high precision positioning capability, rate stability, operation distortion and good dynamic features.
Main Paremeters
| Load capacity | 40kg |
| Max measured object size | 420mm x 400mm x 480mm |
| Wobble error | Inner/outer frame: ±5'' Mid frame: ±5'' |
| Rotary angle range | Three axis Continuous infinite |
| Axis perpendicularity | Mid-inner frame ±5'' Mid-outer ring ±3'' |
| Working mode | Position, rate, swing, simulation and serve |
| Table body weight | About 1500kg |
| Table body outline | About 1600mm x 1100mm x 2200mm |
| Electric control cabinet | 19'' standard cabinet, height: 1800mm |
| Computer interface | RS-232 |
| Conductive slip rings | 100 rings for user |
| Angular position measure accuracy | ±3'' |
| Angular position measure resolution | 0.36'' |
| Angular position measure repeatability | ±2'' |
| Angular position control accuracy | ±5'' |
| rate range | 0.001°/s~200°/s |
| rate accuracy and stability | 5x10-4(360° average) |
| Max angle acceleration | inner frame 220°/s2, Mid-frame 130°/s2, outer frame 50°/s2, |
| Sway amplitude | Inner frame: ±50° Mid-frame: ±30° Outer frame: ±10° |
| Sway period | 5sec~50sec |
| Simulation function | available |
| Serve function | Inner frame: yes Mid frame: no Outer frame: yes |
| Serve accuracy | Inner frame 3''~5'' Outer frame 6Hz |
| Control system bandwidth | Inner frame: 8Hz Mid frame: 8Hz Outer frame: 3''~5'' |
