High Precision FOG GNSS/INS Integrated Inertial Navigation System For Unmanned Ship Navigation

Name: High Precision FOG GNSS/INS Integrated Inertial Navigation System For Unmanned Ship Navigation
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: INS600
Price: 5,000.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	INS600
MOQ:	1
Price:	negotiable
Payment Terms:	L/C, T/T
Supply Ability:	500/Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Heading Accuracy:

0.2 °/L (RMS)

Attitude Accuracy:

0.05°(RMS)

Gyro Range:

±400°/s

Gyro Bias Stability:

≤0.3°/h

Accelerometer Range:

±16g

Accelerometer Bias Stability:

≤100ug

Interface:

1 Channel 422/232/CAN/PPS

Power Supply:

10-36V

Weight:

≤1kg

Packaging Details:

Sponge/Box

Supply Ability:

500/Month

Highlight:

Unmanned Ship Navigation Inertial Navigation System

GNSS/INS Integrated Inertial Navigation System

Product Description

High Precision FOG GNSS/INS Integrated Inertial Navigation System for Unmanned Ship Navigation

Product Description

The INS600 integrated navigation system is a compact dual-axis rotating MEMS integrated navigation system. Through the realization of multi-sensor fusion and navigation calculation algorithm, it meets the requirements of precise measurement of attitude, heading, position and other information in the application fields of medium and high-precision mobile measurement systems, large unmanned aerial vehicles and so on.

Technical parameters

Project	Test conditions	Indicators
Positioning accuracy	GNSS Valid, Single Point	Better than satellite positioning accuracy
	GNSS Valid, RTK	Better than satellite positioning accuracy
	Pure inertial horizontal positioning holding	4nm/60min(CEP)
		1nm/30min(CEP)
		200m/6min(CEP)
Heading accuracy	Dual antenna	0.2 °/L (RMS)
	Heading holding	0.05°/30min(RMS),0.1°/h(RMS)
	Self-north seeking accuracy	0.3 ° SecL, alignment 15 min
Attitude accuracy	GNSS is valid	0.05°(RMS)
Attitude accuracy	Attitude hold (GNSS failure)	0.05°/30min(RMS),0.1°/h(RMS)
Gyroscope	Measuring range	±400°/s
Gyroscope	Zero bias stability	≤0.3°/h
Accelerometer	Measuring range	±16g
Accelerometer	Zero bias stability	≤100µg
Physical dimensions and electrical characteristics	Voltage	10-36V DC
	Power consumption	≤9W
	Interface	2-route RS232, 1-route RS422, 1-route PPS (LVTTL/422 level)
	Size	110mm × 94mm × 94mm (L, W, H)
	Weight	≤1kg
Environmental characteristics	Operating temperature	-40ºC+65ºC
	Storage temperature	-45ºC+70ºC
	Vibration	20~2000Hz,6.06g
	Impact	30g,11ms
	Life span	> 15 years
	Continuous working time	>24h
Note:
* The alignment is valid; * 10 s average; * With shock absorption

Detailed photo

High Precision FOG GNSS/INS Integrated Inertial Navigation System For Unmanned Ship Navigation 0

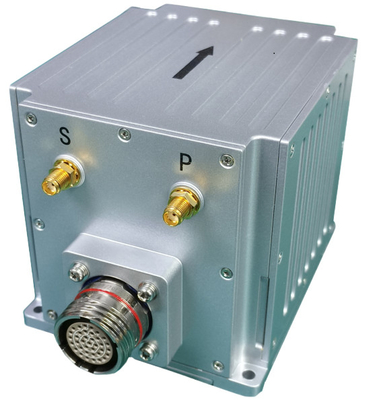

High Precision FOG GNSS/INS Integrated Inertial Navigation System For Unmanned Ship Navigation 1

Dimension

Factory Photo

Payment & Shipping

High Precision FOG GNSS/INS Integrated Inertial Navigation System For Unmanned Ship Navigation 4

High Precision FOG GNSS/INS Integrated Inertial Navigation System For Unmanned Ship Navigation 5

High Precision FOG GNSS/INS Integrated Inertial Navigation System For Unmanned Ship Navigation 6
