Home Products

IMU Accelerometer Gyro

IMU Accelerometer Gyro With High Environmental Adaptability

Name: IMU Accelerometer Gyro With High Environmental Adaptability
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: IMU200J
Price: 3,003.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	IMU200J
MOQ:	1
Price:	negotiable
Payment Terms:	L/C,T/T
Supply Ability:	500/Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Gyro Range:

±500°/s

Gyro Zero Bias Stability:

4°/h

Acc Range:

±16g

Accelerometer Bias Stability:

0.2mg (ALLAN)

Communication Interface:

1-channel RS422

Bandwidth:

200Hz

Weight:

≤45g

Size:

44.8*38.6*13.5mm

Packaging Details:

Sponge/Box

Supply Ability:

500/Month

Highlight:

Industrial UAV IMU Accelerometer Gyro

Tactical UAV IMU Accelerometer Gyro

High Environmental Adaptability IMU Accelerometer Gyro

Product Description

IMU Accelerometer Gyro with High Environmental Adaptability

Product Description

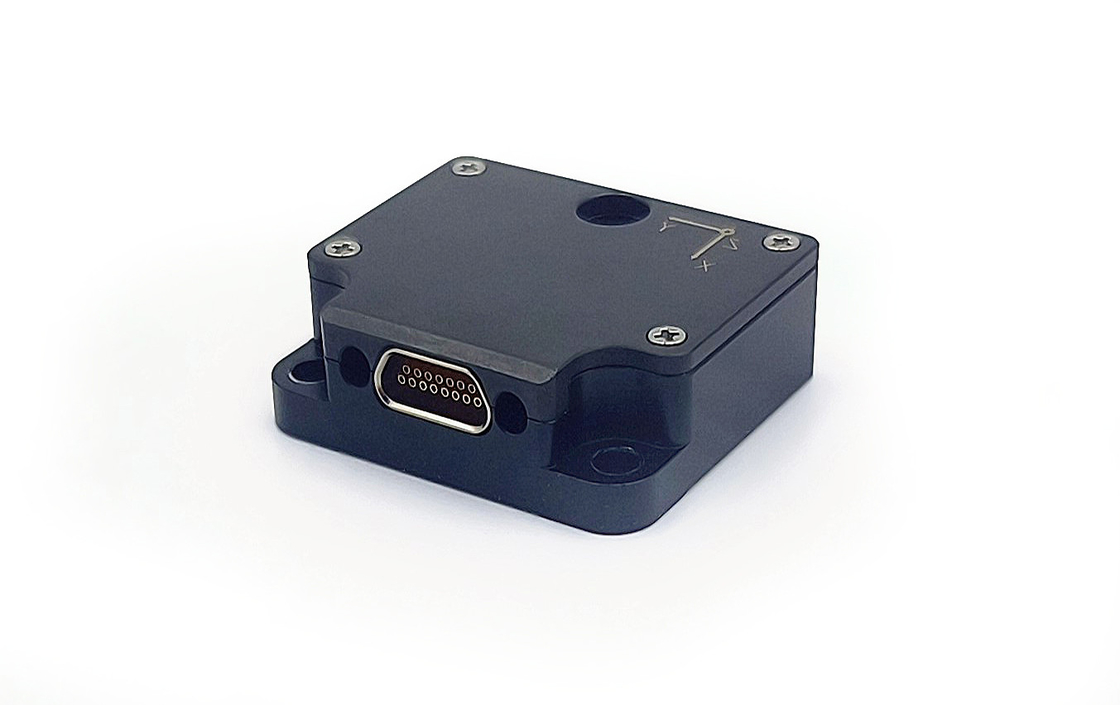

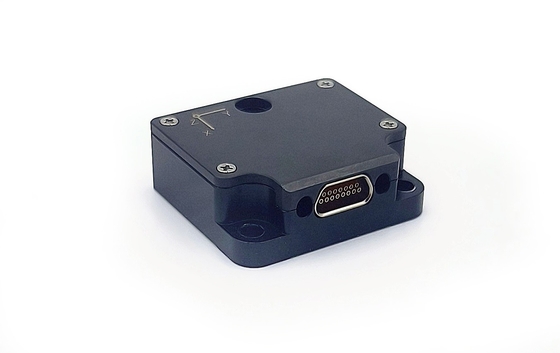

The IMU200J is an inertial measurement unit (IMU) based on micromachining technology (MEMS), with built-in high-performance MEMS gyroscope and MEMS accelerometer, outputting 3 angular velocities and 3 accelerations.

Main Function

1. Three-axis digital gyroscope:

① Dynamic measuring range:± 500º/s
②. Zero-bias stability: 1°/h

2. Triaxial digital accelerometer:
① Dynamic measuring range:±16g
② Zero-bias stability: 0.07mg (ALLAN);

3. High reliability: MTBF > 20000h;
4. Guaranteed accuracy within the full temperature range (-40 ºC ~ 70 ºC):
built-in high-performance temperature calibration and compensation algorithm;
5. Suitable for working under strong vibration conditions;
6. Interface 1 channel UART, 1 channel SPI, 1 channel CAN.

Technical parameters

Parameter		Test conditions	Typical value	Unit
Gyro	Dynamic measuring range	-	±500	º/s
	Zero bias stability	Allan variance (500 °/s range, normal temperature)	4	º/h
	Zero bias stability	10 s average (-40 ºC ~ + 80 ºC, constant temperature)	20	º/h
	Zero bias	Zero bias range	≤±0.1	º/s
		Zero bias variation over full temperature range (1 s average)	±0.07	º/s
		Zero-bias repeatability	0.012	º/s
		Effect of linear acceleration on bias	0.002	º/s/g
	Scale factor	Scale factor accuracy	0.2	%FS
	Scale factor	Scale factor nonlinearity	0.05	%FS
	Resolution		0.005	°/s
	Angular random walk	-	0.06	°/√hr
	Bandwidth	-	220	Hz
Accelerometer	Dynamic measuring range	-	±16	g
	Zero bias stability	Allan variance (16g range, normal temperature)	0.2	mg
	Zero bias stability	10 s average (-40 ºC ~ + 80 ºC, constant temperature)	1	mg
	Zero bias	Zero bias range	±2	mg
		Zero-bias variation over full temperature range	±2	mg
		Start repeatability	0.2	mg
	Scale factor	Scale factor accuracy	0.2	%
	Scale factor	Scale factor nonlinearity	0.05	%FS
	Speed random walk	-	0.08	m/s/√hr
	Bandwidth	-	200	Hz
Communication interface	1-route SR422	Baud rate	460.8	MHz
Electrical characteristics	Voltage	-	5±0.5	V
	Power consumption	-	1.5	W
	Ripple	P-P	150	mV
Structural characteristics	Size	-	44.8×38.6×13.5	mm
Structural characteristics	Weight	-	45±1	g
Use environment	Operating temperature	-	-40~80	ºC
	Storage temperature	-	-45~85	ºC
	Vibration	-	20~2000Hz,6.06g
	Impact	-	1000g,0.5ms
Reliability	MTBF	-	20000	h
Reliability	Continuous working time	-	120	h

Outline Drawing

Detail Photo

Payment & Shipping

IMU Accelerometer Gyro With High Environmental Adaptability 3

IMU Accelerometer Gyro With High Environmental Adaptability 4

IMU Accelerometer Gyro With High Environmental Adaptability 5
