Low Dift Gyroscope Accelerometer Inertial Measurement Unit IMU

Name: Low Dift Gyroscope Accelerometer Inertial Measurement Unit IMU
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: 16488HB
Price: 3,003.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	16488HB
MOQ:	1
Price:	negotiable
Payment Terms:	L/C,T/T
Supply Ability:	500/Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Gyro Range:

±500°/s

Gyro Zero Bias Stability:

0.8°/h

Acc Range:

±16g

Acc Zero Bias Stability:

0.06mg(Allan)

Interface:

1 Channel SPI/UART/CAN

Bandwidth (-3dB):

330Hz

Random Walk:

0.15º/√h

Power Consumption:

0.6W

Packaging Details:

Sponge/Box

Supply Ability:

500/Month

Highlight:

High performance IMU

Inertial Measurement Unit IMU

Gyroscope Accelerometer IMU

Product Description

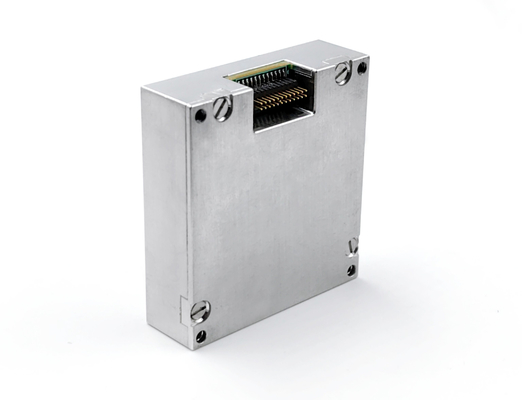

Low Dift Gyroscope Accelerometer Inertial Measurement Unit IMU

Product Description

The 16488HB multi-degree-of-freedom inertial measurement unit is a complete inertial system with a built-in three-axis gyroscope, a three-axis accelerometer, a three-axis magnetometer and a pressure sensor for measuring the three-axis angle of the carrier parameters such as rate, acceleration, three-axis magnetic field, air pressure, etc., output data after error compensation (including temperature compensation, installation misalignment angle compensation, nonlinear compensation, etc.) according to the communication protocol through SPI.

Three-axis digital gyroscope:

A) ± 2000º/s dynamic measurement range;

B) Zero bias stability: 3 °/H (GJB, 10S, Z-axis), 0.8 °/H (ALLAN, Z-axis);

2) Triaxial digital accelerometer:

A) ± 200g dynamic measurement range;

B) Zero bias stability: 0.4mg (GJB, 10S), 0.06mg (ALLAN);

3) Triaxial digital magnetometer: 2.5g auss

4) Digital barometer: 300mbar ~ 1100mbar

5) High reliability: MTBF 20000h;

6) Guaranteed accuracy within the full temperature range (-40 ℃ ~ + 80 ℃):

built-in high-performance temperature calibration and compensation algorithm;

7) Suitable for operation under strong vibration (6.06 G, 20 ~ 2000 Hz);

8) Suitable for working under large impact conditions (1000 G, 0.5ms);

Technical parameters

Parameter		Test conditions	Minimum value	Typical value	Maximum value	Unit
Gyroscope	Dynamic measuring range			500	2000	°/s
	Zero bias stability	Allan variance, Z-axis		0.8		°/h
		Allan variance, X and Y axis		1.6		°/h
		10 s average (-40 ℃ ~ + 70 ℃, constant temperature), Z-axis		3		°/h
		10 s average (-40 ℃ ~ + 70 ℃, constant temperature), X-axis and Y-axis		6		°/h
	Zero bias	Zero-bias range, Z-axis		±0.07		°/s
		Zero-bias range, X-axis and Y-axis		±0.2		°/s
		Zero-bias change in full temperature range, Z-axis ①		±0.02		°/s
		Zero Bias Change Over Temperature, X and Y Axis ①		±0.06		°/s
		Successive Start Repeatability, Z-axis		0.002
		Successive Start Repeatability, X-Axis and Y-Axis		0.006
		Day-by-day start repeatability, Z-axis		0.003		/s
		Start repetition day by day, X axis and Y axis		0.009		°/s
		Ffect of linear acceleration on bias		0.002		°/s/g
		Influence of vibration on zero bias, change before and after vibration ②		0.002		°/s/g
		Influence of vibration on zero bias, change before and during vibration ②		0.002		°/s/g
	Scale factor	Scale factor accuracy, Z-axis		0.3		%
		Scale Factor Accuracy, X and Y Axis		0.6		%
		Scale factor nonlinearity, Z-axis		0.01		%FS
		Scale Factor Nonlinearity, X and Y Axis		0.02		%FS
	Angular random walk			0.15		°/ √hr
	Noise density			0.001		°/s/ √Hz
	Resolution			3.052×10-7		/s/LSB
	Bandwidth			200		Hz
Accelerometer	Dynamic measuring range			16	200	g
	Zero bias stability	Allan variance		0.06		mg
	Zero bias stability	10 s average (-40 ℃ ~ + 70 ℃, constant temperature)		0.4		mg
	Zero bias	Zero bias range		2		mg
		Change of zero bias within the whole temperature range, peak-to-peak value ①		4		mg
		Repeatability of successive starts		0.5		mg
		Repeatability is initiated on a daily basis		0.8		mg
		Zero-bias temperature coefficient		0.05	0.1	mg/℃

Dimension

Low Dift Gyroscope Accelerometer Inertial Measurement Unit IMU 0
