High Performance Temp Controlled Three Axis Rotary Turntables For Gyroscope INS IMU Calibration

High Performance Temp Controlled Three Axis Rotary Turntables For Gyroscope INS IMU Calibration

High Performance Temp Controlled Three Axis Rotary Turntables For Gyroscope INS IMU Calibration

Brand Name: Firepower
Model Number: 3LT300-W
MOQ: 1
Price: negotiable
Payment Terms: L/C,T/T
Supply Ability: 10 pcs/5 months
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE
Product Name:
IMU Test Turntable
Load Capacity:
30kg
Load Plate Size:
Ø300mm(Customizable)
Angular Position Range:
±0~±360°
Computer Port:
RS232/RS422
Table Height:
400mm
Face Runout:
0.05mm
Rotary Accuracy:
±1~3''
Position Accuracy:
±1~3''
Packaging Details:
Wooden Box
Supply Ability:
10 pcs/5 months
Highlight:

Three Axis Rotary Turntables

,

Temp Controlled Rotary Turntables

,

Rotary Turntables For Gyroscope

Product Description
High Performance Temp Controlled Three Axis Rotary Turntables For Gyroscope INS IMU Calibration
Product Specifications
Attribute Value
Product Name IMU Test Turntable
Load capacity 30kg
Load Plate Size Ø300mm (Customizable)
Angular position range ±0~±360°
Computer Port RS232/RS422
Table height 400mm
Face runout 0.05mm
Rotary Accuracy ±1~3''
Position Accuracy ±1~3''
Product Overview
The three-axis turntable series is precision test equipment designed to generate motion excitation including angular position, angular rate, and angular acceleration in three directions. This enables comprehensive testing of components such as gyros, inertial measurement devices, and accelerometers. The system can also simulate three-dimensional rotational movements, angular vibration, and dynamic sway motions.
The turntable control system integrates a high-performance control unit, high-precision angle measuring system, PWM digital servo amplifier, and direct drive servo motor. Key components include the support structure, drive motor, power amplifier, angle measuring element, and AD/DA card (all imported components).
Technical Parameters
Structural form: Three axis continuous rotation
Mesa material: Stainless steel/aluminum alloy (Optional)
Maximum load weight: 40KG
Table size: Φ400mm
Mesa flatness: 0.02mm
Table height: 540mm
Rotation accuracy: ±1~3″ (Optional)
Angular position range: ±0〜 ±360°
Angular position accuracy: ±1~3″ (Optional)
Angular resolution: 0.0001°
Angular rate range: 0.001〜4500°/s
Maximum angular acceleration: Inner 4500°/s², Middle 2000°/s², Outer 1000°/s²
Slip ring number: 10~80 (Optional)
System bandwidth: 5~80Hz (Optional)

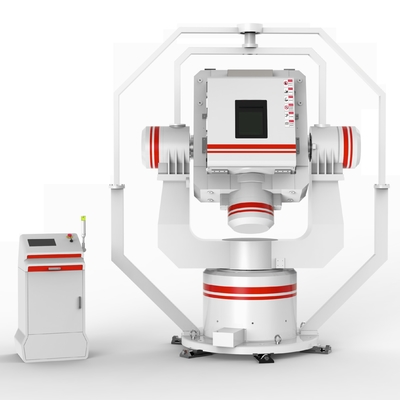

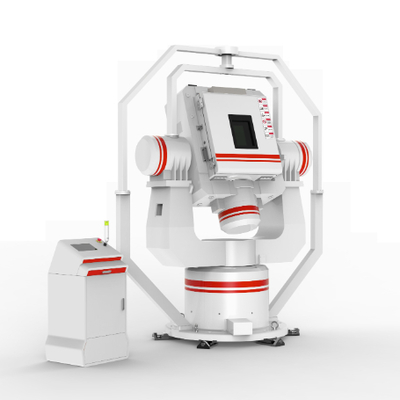

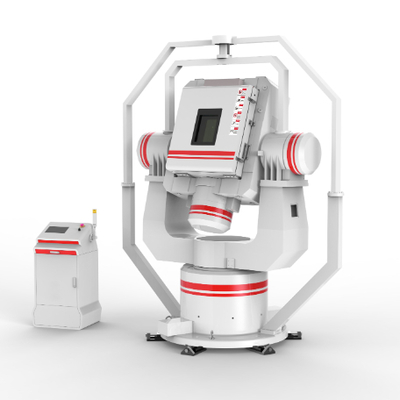

Product Images
High Performance Temp Controlled Three Axis Rotary Turntables For Gyroscope INS IMU Calibration 0 High Performance Temp Controlled Three Axis Rotary Turntables For Gyroscope INS IMU Calibration 1

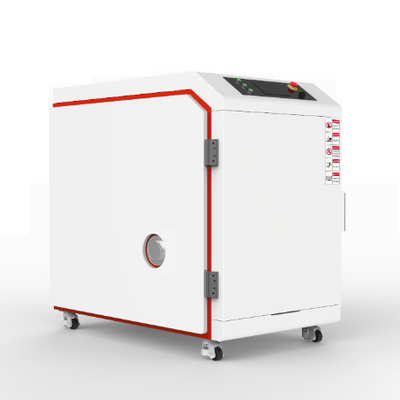

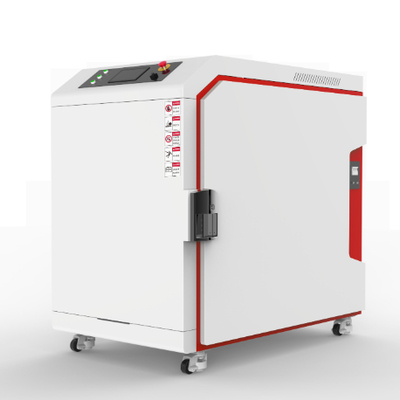

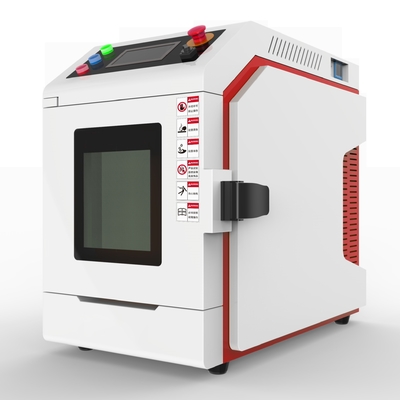

Factory Photos
High Performance Temp Controlled Three Axis Rotary Turntables For Gyroscope INS IMU Calibration 2 High Performance Temp Controlled Three Axis Rotary Turntables For Gyroscope INS IMU Calibration 3 High Performance Temp Controlled Three Axis Rotary Turntables For Gyroscope INS IMU Calibration 4 High Performance Temp Controlled Three Axis Rotary Turntables For Gyroscope INS IMU Calibration 5 High Performance Temp Controlled Three Axis Rotary Turntables For Gyroscope INS IMU Calibration 6 High Performance Temp Controlled Three Axis Rotary Turntables For Gyroscope INS IMU Calibration 7 High Performance Temp Controlled Three Axis Rotary Turntables For Gyroscope INS IMU Calibration 8 High Performance Temp Controlled Three Axis Rotary Turntables For Gyroscope INS IMU Calibration 9
