1. Product description

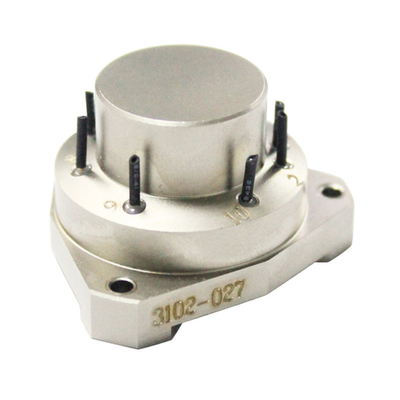

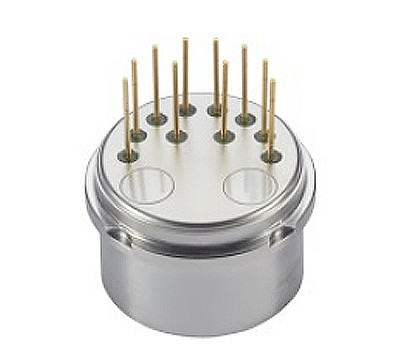

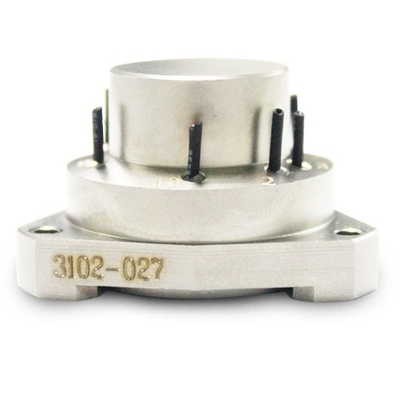

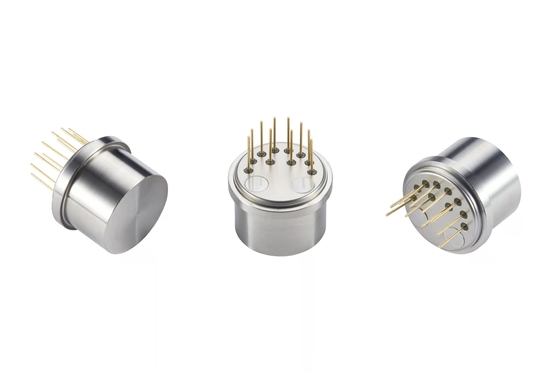

ACC3 series quartz flexible accelerometer is a miniaturized, high-precision, wide-range accelerometer with excellent long-term stability, repeatability, start-up performance, environmental adaptability and high reliability. It can be used for both static and dynamic tests. It is also a standard vibration sensor and tilt sensor.
The product adopts a unique miniaturization design and packaging process. The output current is linearly related to the force or acceleration. Users can select the appropriate sampling resistance through calculation to achieve high-precision output. The built-in temperature sensor can be used to compensate the bias and scale factor and reduce the influence of ambient temperature according to the user's requirements.
2. Parameters
| Serial number | Parameter | ACC3-01 | ACC3-02 | ACC3-03 |
| 1 | Range | ±60g | ±60g | ±70g /±1000g |
| 2 | Threshold | 5μg | 5μg | 5μg |
| 3 | Bias K0/K1 | ≤(±5 mg) | ≤(±5 mg) | ≤(±5 mg) |
| 4 | Scale factor K1 | 1.0±0.2 mA/g | 1.0±0.2 mA/g | 0.6±0.2mA/g |
| 5 | Second-order nonlinear coefficient K2 |
≤±20μg /g2 | ≤±30μg /g2 | ≤±20μg /g2 |
| 6 | 0 g 4 -hour short term stability | ≤10 μg | ≤20 μg | ≤20 μg |
| 7 | 1g 4-hour short-term stability | ≤10 ppm | ≤20 ppm | ≤20 ppm |
| 8 |
Bias comprehensive repeatability σK0 (1σ, 1 month) |
≤15 μg | ≤50 μg | ≤50 μg |
| 9 | Scale factor comprehensive repeatability σ K1/K1 (1σ, 1 month) | ≤15ppm | ≤50 ppm | ≤50ppm |
| 10 |
Nonlinear coefficient comprehensive repeatability K2/K1 (1σ, 1 month) |
≤±20 μg /g2 | ≤±30 μg /g2 | ≤±30 μg /g2 |
| 11 | Bias temperature coefficient (full temperature average)) | ≤±15 μg /℃ | ≤±50 μg /℃ | ≤±50 μg /℃ |
| 12 | Scale Factor Temperature Coefficient (Averaged Over Temperature) | ≤±15 ppm /℃ | ≤±80 ppm /℃ | ≤±50 ppm /℃ |
| 13 | Noise (840 Ω sampling resistor) | ≤5mv | ≤8.4mv | ≤8.4mv |
| 14 | Natural frequency | 350~800 Hz | 350~800 Hz | 350~800 Hz |
| 15 | Bandwidth | 800~2500 Hz | 800~2500 Hz | 800~2500 Hz |
| 16 | Random vibration | 10g(20-2000Hz) | 10g(20-2000Hz) | 10g(20-2000Hz) |
| 17 | Impact | 150g,4.5ms,1/2sin | 150g,4.5ms,1/2sin | 150g,4.5ms,1/2sin |
| 18 | Operating temperature range | -55～+85℃ | -55～+85℃ | -55～+85℃ |
| 19 | Storage temperature range | -60~+120℃ | -60~+120℃ | 60~+120℃ |
| 20 | Power supply | ±12~±15V | ±12~±15V | ±12~±15V |
| 21 | Current consumption | ≤±20mA | ≤±20mA | ≤±20mA |
| 22 | Temperature sensor | User-customizable | User-customizable | User-customizable |
| 23 | Size | Ф18.2X23mm | Ф18.2X23mm | Ф18.2X23mm |
| 24 | Weight | ≤30g | ≤30g | ≤30g |
