1. Product description

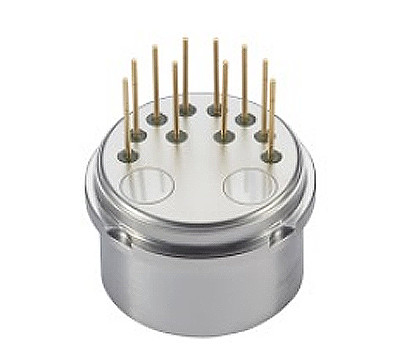

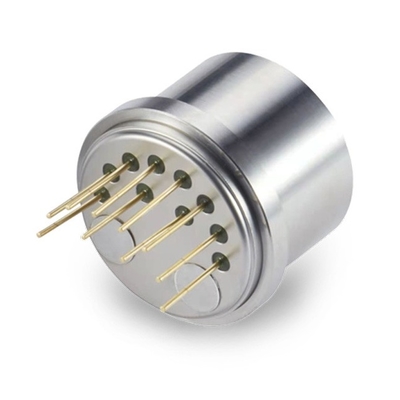

The ACC6 Series Quartz Flexible Accelerometer is a miniaturized, high temperature and shock resistant accelerometer. The product has excellent repeatability, start-up performance, high temperature resistance, seismic performance and high reliability. It can be used for both static and dynamic tests. It is also a standard vibration sensor.
The product adopts unique miniaturization, high temperature and anti-seismic design, advanced packaging process and special circuit. The output current of the product is proportional to the input acceleration. Users can select the appropriate sampling resistance through calculation to achieve high-precision output. The built-in temperature sensor can be used to compensate the bias and scale factor and reduce the influence of ambient temperature according to the user's needs. This product has been launched since 2012, and the number of deliveries has reached thousands. After years of application, it has become a mature product, especially widely used in the measurement while drilling of oil drilling.
2. Parameters
| Serial number | Parameter | ACC6-01 | ACC6-02 |
| 1 | Range | ±30g | ±30g |
| 2 | Threshold | 30μg | 30μg |
| 3 | Bias k0/K1 | ≤(±20 mg) | ≤(±20 mg) |
| 4 | Scale factor K1 | 1.9～2.1mA/g | 1.9～2.1mA/g |
| 5 | Second-order nonlinear coefficient K2 | ≤±20μg /g2 | ≤±50μg /g2 |
| 6 | 0g 4- hour short term stability | ≤30 μg | ≤40 μg |
| 7 | 1g 4-hour short-term stability | ≤30 ppm | ≤40 ppm |
| 8 | Bias comprehensive repeatability σk0 (1σ, one month) |
≤150 μg | ≤220 μg |
| 9 | Scale factor comprehensive repeatability σk1/K1 (1σ, one month) | ≤150ppm | ≤220 ppm |
| 10 | Nonlinear coefficient comprehensive repeatability K2/K1 (1σ, one month) |
≤±40 μg /g2 | ≤±50 μg /g2 |
| 11 | Biased temperature coefficient | ≤±80 μg /℃ | ≤±150 μg /℃ |
| 12 | Scale factor temperature coefficient | ≤±100 ppm /℃ | ≤±200 ppm /℃ |
| 13 | Noise (840 Ω sampling resistor) | ≤8mv | ≤8.4mv |
| 14 | Natural frequency | 350~800 Hz | 350~800 Hz |
| 15 | Bandwidth | 800~2500 Hz | 800~2500 Hz |
| 16 | Vibration | 25g(20-2000Hz) | 25g(20-2000Hz) |
| 17 | Impact | 1000g,0.5ms,1/2sin | 1000g,0.5ms,1/2sin |
| 18 | Operating temperature range | -40℃+150℃ | -40+180℃ |
| 19 | Storage temperature range | -60-+180℃ | -60-+200℃ |
| 20 | Power supply | ±12~±15V | ±12~±15V |
| 21 | Current consumption | ±20mA | ±20mA |
| 22 | Size | Ф18.2X16mm | Ф18.2X16mm |
| 23 | Weight | 25g | 25g |
