Shock-Resistant ADIS16488 Inertial Measurement Unit with ±450 °/s Gyro Range

Name: Shock-Resistant ADIS16488 Inertial Measurement Unit with ±450 °/s Gyro Range
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: 16488HA
Price: 3,003.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	16488HA
MOQ:	1
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Band Width:

≥250Hz

Zero Bias Repeatability:

≤5°/h

Maximum Angular Rate:

±450°/s

Zero-bias Instability:

0.3º/h

Cross Coupling:

0.1%

Zero Bias In Full Temperature Range:

20º/h

Packaging Details:

sponge and carton

Supply Ability:

500/month

Highlight:

Accurate 3-Axis Gyro

Stable 3-Axis Gyro

High Precision Design 3-Axis Gyro

Product Description

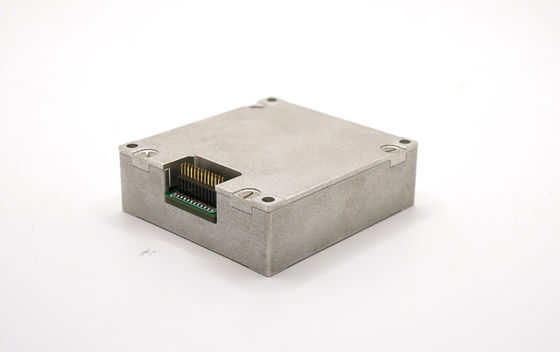

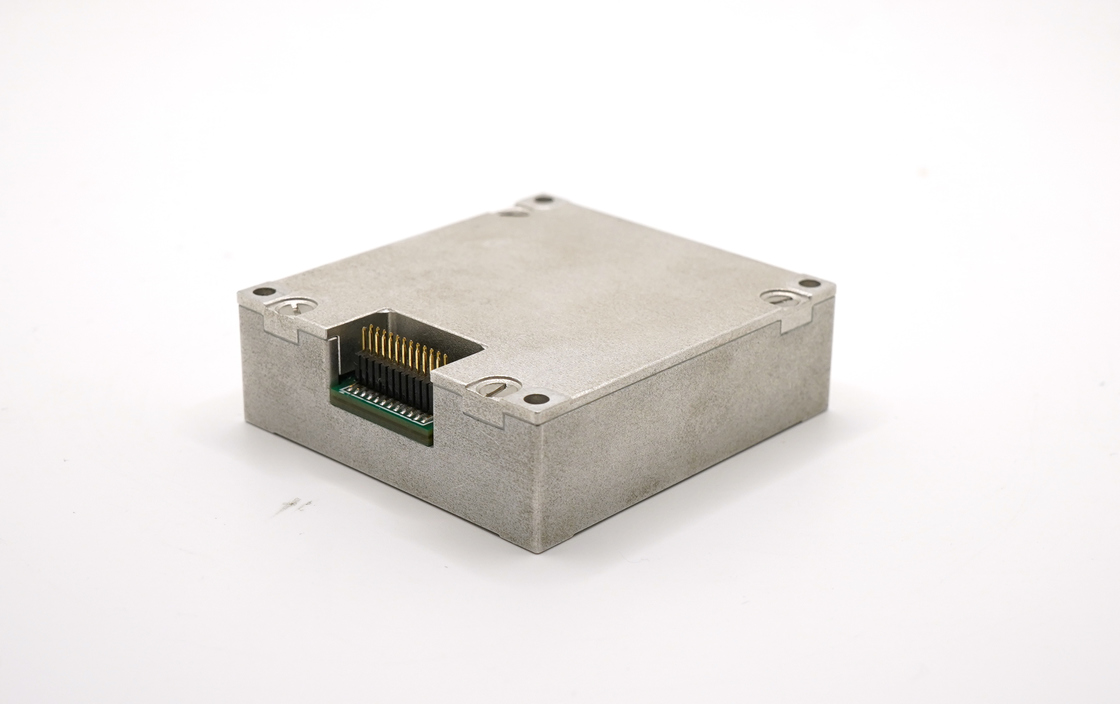

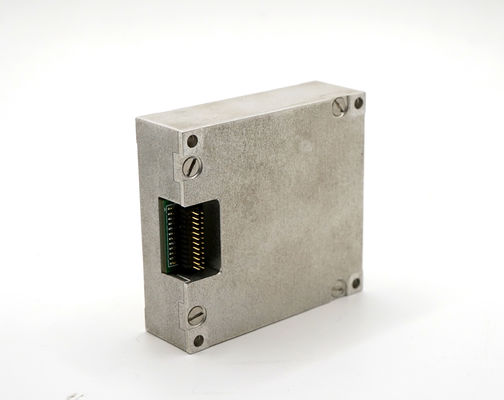

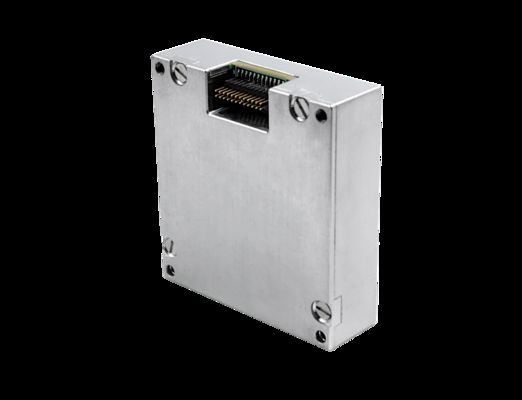

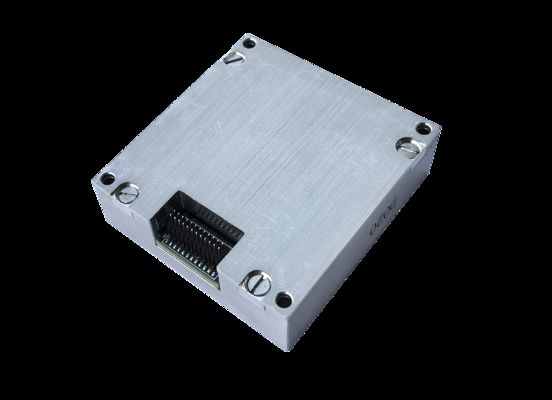

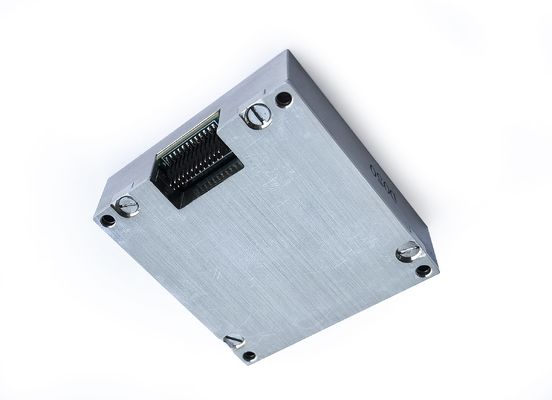

Shock-Resistant ADIS16488 Inertial Measurement Unit with ±450 °/s Gyro Range

The ADIS16488HA is a high-performance MEMS six-axis IMU that integrates a three-axis gyroscope and accelerometer, delivering ±450°/s angular rate and ±20 g acceleration measurement. With exceptional zero-bias instability (0.3°/h for gyro, 0.25 mg for accelerometer), low random walk, and excellent scale factor linearity, this unit provides precise inertial data. It features full compensation for temperature (-45~85 °C), misalignment, and nonlinearities. With SPI communication at 8-15 MHz, 1.5 W power consumption, 250 Hz bandwidth, and 0.1% cross-coupling, it's ideal for UAVs, autonomous robotics, industrial automation, mobile mapping, and precision navigation systems.

Technical Specifications

Parameter	Test Conditions	Minimum	Typical	Maximum	Unit
Gyroscope
Dynamic measuring range				±450	º/s
Zero-bias instability	Allan variance, better than		0.3		º/h
Zero bias stability	10s smooth, RMS, better than		3		º/h
Zero bias in full temperature range	-40 ℃ ~ 85 ℃, 10 s smooth, rms		20		º/h
Random walk	1σ		0.15		º/√h
Zero-bias repeatability	1σ		5		º/h
Scale factor repeatability	1σ		100		ppm
Scale factor nonlinearity	1σ		100		ppm
Bandwidth (-3dB)			250		Hz
Cross coupling			0.1		%
Resolution			2		º/h
Acceleration sensitivity			2		°/h/g
Accelerometer
Dynamic measuring range				±20	g
Zero bias stability	Allan variance		0.07		mg
Zero bias in full temperature range	-40 ℃ ~ 85 ℃, 10 s smooth, rms		3		mg
Zero bias stability	10s smooth, RMS, better than		0.25		mg
Random walk	1σ		0.029		m/s/√h
Zero-bias repeatability	1σ		0.5		mg
Scale factor repeatability	1σ		500		ppm
Scale factor nonlinearity	FS=20g		500		ppm
Bandwidth (-3dB)			250		Hz
Cross coupling			0.1		%
Communication Interface
1-way SPI	Enter the clock frequency		8	15	MHz
Electrical Characteristics
Voltage	Direct current		3.3		V
Power consumption			1.5	1.5	W
Ripple	P-P		48±2	100	mV
Use Environment
Operating temperature		-45		85	℃
Storage temperature		-55		85	℃

Product Diagrams

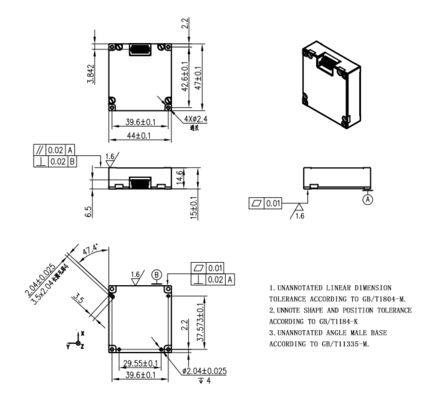

Outline Drawing

Connector Diagram

Axial Direction Diagram
