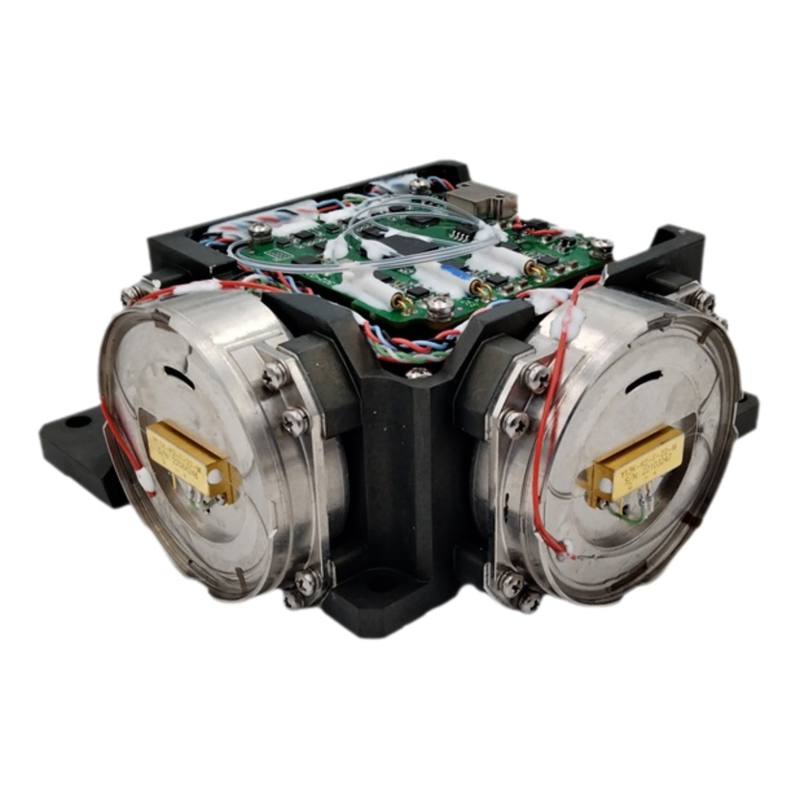

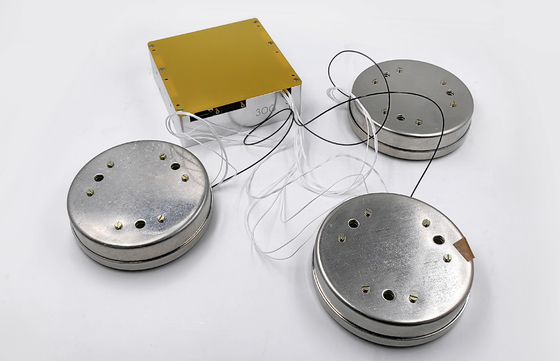

Angular Velocity Sensor With 3 Axes Suitable For High Precision Navigation

Name: Angular Velocity Sensor With 3 Axes Suitable For High Precision Navigation
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: 3OG-60A
Price: 10000.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	3OG-60A
MOQ:	1
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Measuring Range:

±500°/s

Zero Bias Stability:

≤0.05°/h

Random Walk Cefficient:

≤0.01°/√h

Bandwidth:

≥500Hz

Resolution:

≤0.05°/h

Zero Bias Repeatability:

≤10ppm

Zero Bias:

≤0.5°/h

Start Time:

Supply Voltage:

+5V

Power Consumption:

≤4W

Packaging Details:

sponge and carton

Supply Ability:

500/month

Highlight:

3 axes Angular velocity sensor

High precision navigation Angular velocity sensor

Product Description

1. Product Core Technology
The 3-axis integrated fiber optic gyroscope integrates a number of advanced technologies to ensure high accuracy, low drift and stability:
A. Fiber optic ring technology: high quality fiber optic manufacturing, optimized fiber optic winding process to reduce temperature drift and fiber optic non-uniformity effects.
B. Closed-loop control: Digital Signal Processing (DSP) and closed-loop modulation technology to improve gyro output stability and dynamic range.
C. High-precision signal processing: low-noise photodetector and signal filtering algorithms to improve signal quality and reduce the impact of noise.
D. Temperature Compensation Algorithm: Integrated temperature sensor and temperature compensation algorithm to ensure that it can still maintain high precision measurement in different environments.
E. High Reliability Structure Design: Adopting anti-shock and anti-vibration design to ensure stable operation even in harsh environments.

2. Parameters

Serial number	Test item	Unit	Technical requirements
1	Start-up time	s	3
2	Zero bias	(°)/h	≤0.5
3	Zero bias stability at normal temperature (constant temperature) (10 s smooth)	(°)/h	≤0.05
4	Zero bias stability at variable temperature (1 ℃/min variable temperature, 100 s smooth)	(°)/h	≤0.1
5	Zero-bias repeatability	(°)/h	≤0.05
6	Zero bias magnetic sensitivity	(°)/h/Gs	≤0.05
7	Random walk coefficient	(º)/h1/2	≤0.01
8	Scale factor nonlinearity	ppm	≤10
9	Scale factor asymmetry	ppm	≤5
10	Scale factor repeatability	ppm	≤10
11	Threshold	(°)/h	≤0.05
12	Resolution	(°)/h	≤0.05
13	Bandwidth	Hz	≥500
14	Operating temperature	℃	-45～+70
15	Storage temperature	℃	-55～+85
16	Dynamic range	(°)/s	±500
17	Supply voltage	V	+5
18	Normal temperature steady state power consumption	W	≤4
19	Full temperature steady state power consumption	W	≤8
20	Start the instantaneous current	A	<2

3. Production environments

Single-Axis Rotary Test Turntable For Aerospace And Defense Calibration 2

Single-Axis Rotary Test Turntable For Aerospace And Defense Calibration 4

Single-Axis Rotary Test Turntable For Aerospace And Defense Calibration 6
