Three Axis Motion Simulation Rate Turntable for Attitude and Heading Reference System Calibration

Three Axis Motion Simulation Rate Turntable for Attitude and Heading Reference System Calibration

Three Axis Motion Simulation Rate Turntable for Attitude and Heading Reference System Calibration

Brand Name: Firepower
Model Number: 3LT400-W
MOQ: 1
Price: negotiable
Payment Terms: T/T
Supply Ability: 1000/month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Product Name:
Three Axis Motion Simulation Rate Turntable
Payload:
40kg
Table Size:
Φ400mm
Computer Port:
RS232/RS422
Location Range:
±0- ±360°
Position Accuracy:
±1~3''
Rotation Accuracy:
±1~3''
Table Height:
540mm
Mesa Flatness:
0.02mm
Tempe. Control Accuracy:
±0.5ºC
Packaging Details:
carton with sponge
Supply Ability:
1000/month
Highlight:

Three Axis Motion Simulation Rate Turntable

,

Heading Reference System Rate Turntable

Product Description
Three Axis Motion Simulation Rate Turntable for Attitude and Heading Reference System Calibration
Product Specifications
Attribute Value
Product name Three Axis Motion Simulation Rate Turntable
Payload 40kg
Table size Φ400mm
Computer Port RS232/RS422
Location Range ±0- ±360°
Position Accuracy ±1~3''
Rotation accuracy ±1~3''
Table Height 540mm
Mesa Flatness 0.02mm
Tempe. Control Accuracy ±0.5ºC
Product Overview

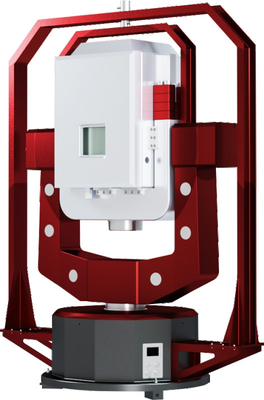

The Three-axis turntable with temperature chamber series is a precision three-axis turntable system designed for full temperature testing applications. This equipment generates motion excitation including angular position, angular rate, and angular acceleration in three directions, enabling comprehensive testing of gyros, inertial measurement devices, and accelerometers.

System Components
  • Mechanical body
  • Temperature control box
  • Electrical measurement and control cabinet
  • Compressor and pipe support

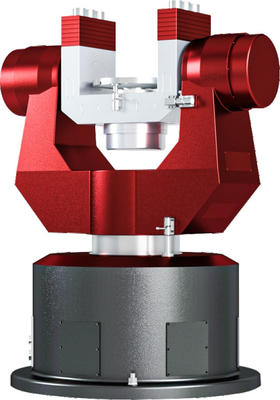

The machine body features a three-axis U-U-T type turntable design, consisting of four main components:

  • Base
  • Outer frame shafting
  • Middle frame shafting
  • Inner frame shafting
Technical Parameters
Structural form Three axis continuous rotation with chamber
Mesa material Stainless steel/aluminum alloy (Optional)
Maximum load weight 40KG
Table size Φ400mm
Table height 540mm
Rotation accuracy ±1~3″ (Optional)
Angular position range ±0~ ±360°
Angular position accuracy ±1~3″ (Optional)
Angular resolution 0.0001°
Angular rate range 0.001~4500°/s
Angular rate accuracy ω<1°/s
1<ω<10°/s
10<ω°/s
Speed smoothness 1 × 10-3
1 × 10-4
5 × 10-5
Maximum angular acceleration Inner: 4500°/s2
Middle: 2000°/s2
Outer: 1000°/s2
Rate resolution 0.0001°
Slip ring number 10~80 (Optional)
System bandwidth 5~80Hz (Optional)
Slip-ring voice 0.03V
Tank range -60~+100ºC
Tempe. control accuracy ±0.5ºC
Three Axis Motion Simulation Rate Turntable for Attitude and Heading Reference System Calibration 0
