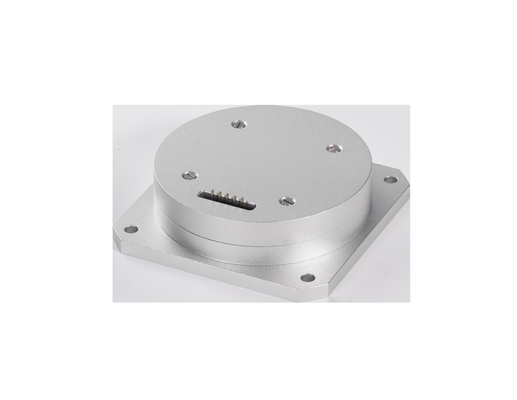

2025 Latest Open-loop Integrated Fiber Optic Gyroscope Sensor Factory Direct Supply

2025 Latest Open-loop Integrated Fiber Optic Gyroscope Sensor Factory Direct Supply

2025 Latest Open-loop Integrated Fiber Optic Gyroscope Sensor Factory Direct Supply

Brand Name: Firepower
Model Number: MFOG-103
MOQ: 1
Price: 1350$
Payment Terms: L/C,D/P,T/T,Western Union
Supply Ability: 500/month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Range:
±350°/s
Zero-bias Stability( (10s, 1σ):
≤1°/h
Angular Random Walk:
≤0.02°/h
3dB Bandwidth:
≥1000Hz
Zero-bias Repeatability( (1σ):
≤1°/h
Scale Factor Nonlinearity:
6±0.6mV°/s
Weight:
≤80g
Power Consumption:
≤1W
Packaging Details:
Sponge + Carton
Supply Ability:
500/month
Product Description
2025 Latest Open-loop Integrated Fiber Optic Gyroscope Sensor
Key Specifications
Attribute Value
Range ±350°/s
Zero-bias stability (10s, 1σ) ≤1°/h
Angular random walk ≤0.02°/h
3dB Bandwidth ≥1000Hz
Zero-bias repeatability (1σ) ≤1°/h
Scale factor nonlinearity 6±0.6mV°/s
Weight ≤80g
Power Consumption ≤1W
Product Overview

The MFOG-103 micro-nano fiber optic gyroscope is a high-performance angular rate sensor integrating optics, mechanics, and electronics in a compact form factor. Utilizing the Sagnac effect, this sensor detects angular velocity through interference principles with advanced micro-nano fiber technologies.

Key Features
  • Fully solid-state structure with no moving parts for enhanced reliability
  • Exceptional resistance to shock and vibration
  • Fast startup and simplified design
  • Compact size and lightweight (≤80g)
  • Long service life with ≥15 years calculated assessment
  • Ideal for precision attitude measurement in UAVs, guided missiles, marine systems, and robotics
Technical Specifications
Parameter Specification
Range (°/s) ±350
Scale factor (mV/°/s) 6±0.6
Zero-bias stability (10s, 1σ, °/h) ≤1
Zero-bias repeatability (1σ, °/h) ≤1
3dB Bandwidth (Hz) ≥1000
Random walk (°/√h) ≤0.02
Power supply (V) 5+0.25
Power Consumption (W) ≤1
Impact (g) ≥1500
Acceleration (g) ≥70
Service Life (years) ≥15
MTBF (Calculated Assessment) ≥100000
Product Components
  • Optical path assembly
  • Detection and control signal circuit board
  • Optical fiber ring skeleton
  • Shell and structural components

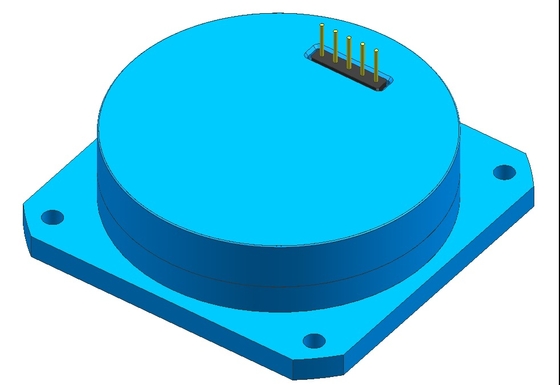

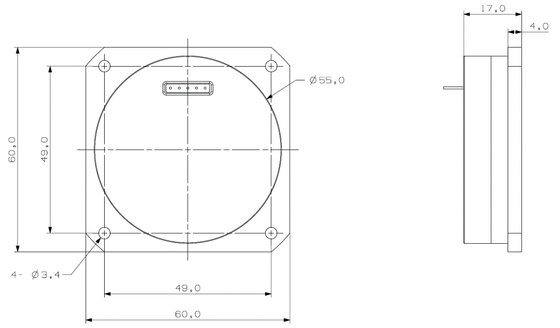

Product Diagrams
2025 Latest Open-loop Integrated Fiber Optic Gyroscope Sensor Factory Direct Supply 0 2025 Latest Open-loop Integrated Fiber Optic Gyroscope Sensor Factory Direct Supply 1
