Miniaturized MEMS Motion Sensor Module

Miniaturized MEMS Motion Sensor Module

Brand Name: Firepower
Model Number: 16475C
MOQ: 1
Price: 2450$
Payment Terms: L/C,D/P,T/T,Western Union
Supply Ability: 100pcs/month
Detail Information
Place of Origin:
China
Certification:
CE
Gyro Measuring Range:
±500°/s (optional)
Gyro Zero-bias Stability:
30°/h, 1s Smoothing, 1sigma
Gyro Random Walk:
0.15~0.2°/h-², 1 Sigma
Accelerometer Measuring Range:
±8g
Accelerometer Zero-bias Stability:
0.3mg, 1s Smoothing, 1sigma
Accelerometer Random Walk:
0.05~0.07m/s/h-², 1 Sigma
Packaging Details:
Sponge + Carton
Supply Ability:
100pcs/month
Highlight:

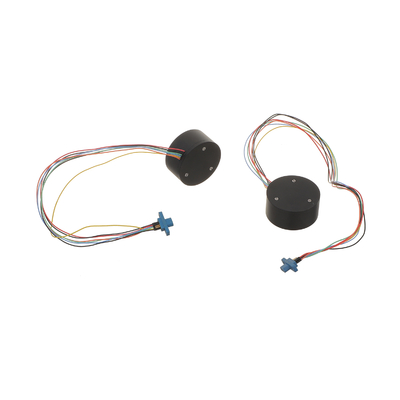

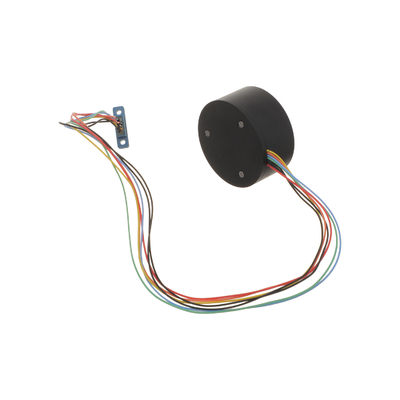

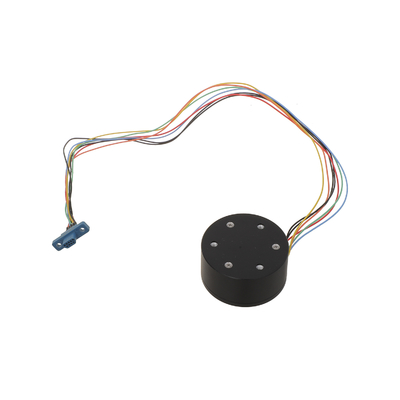

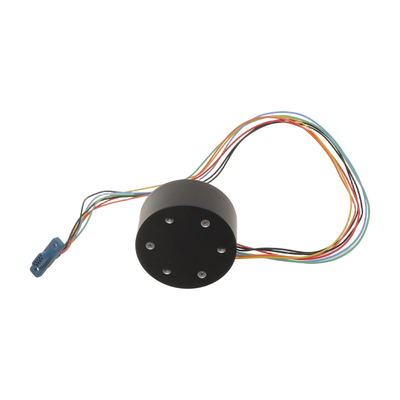

Fizoptika VG1703 fiber optic gyroscope

,

Fiber optic gyro ±300°/s

,

Fiber optic gyroscope 0.5°/h stability

Product Description
Product Description

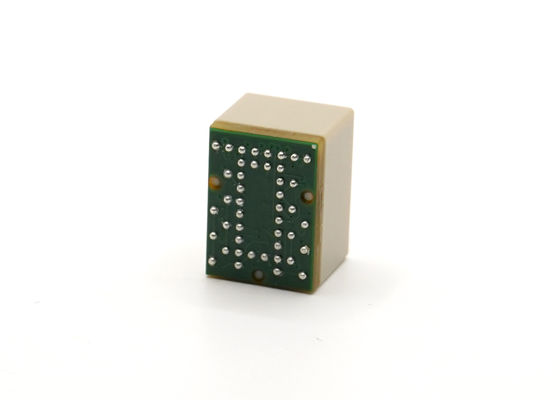

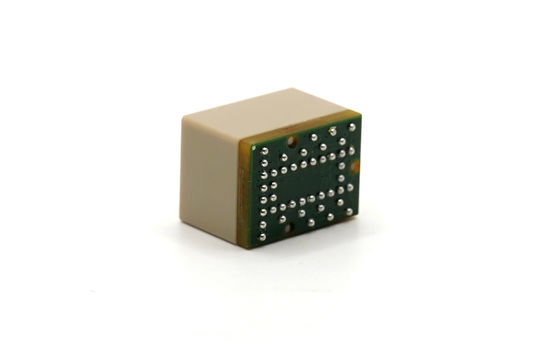

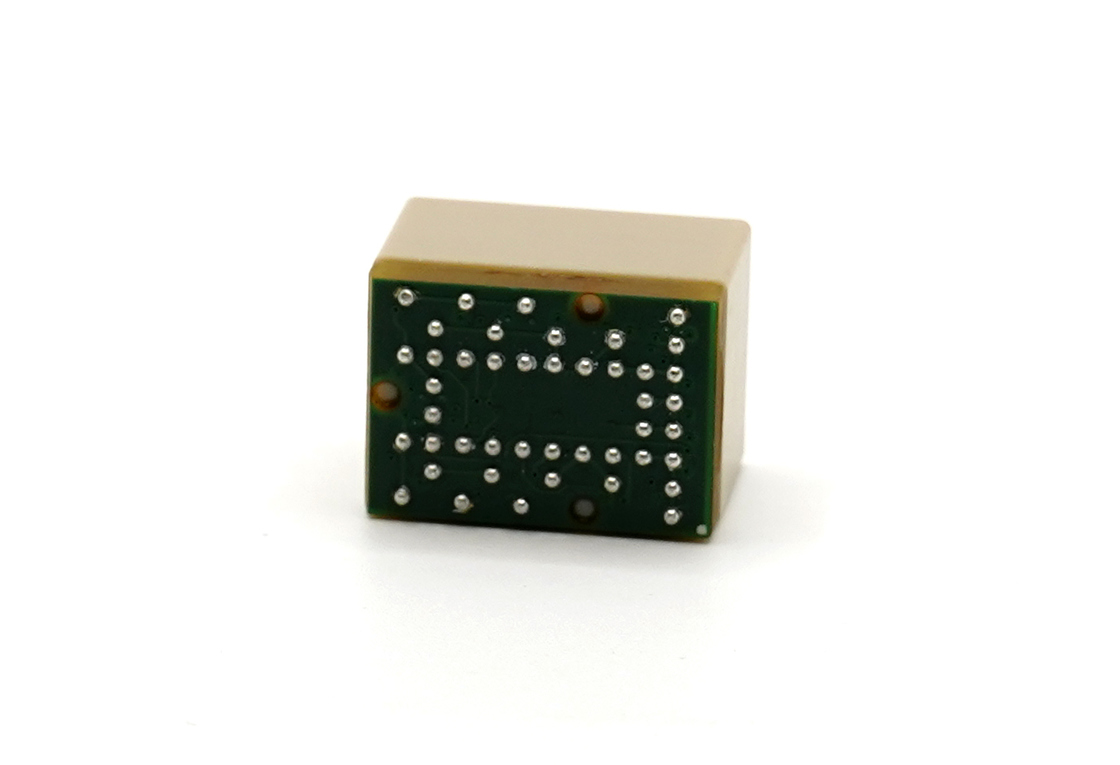

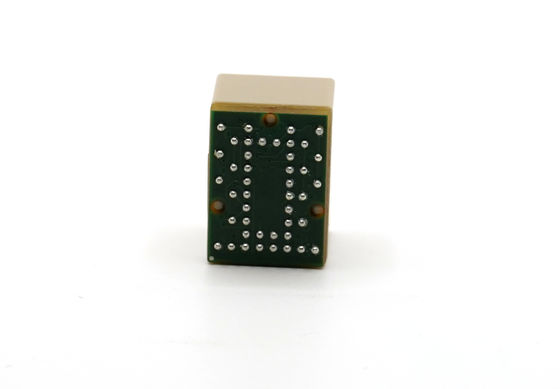

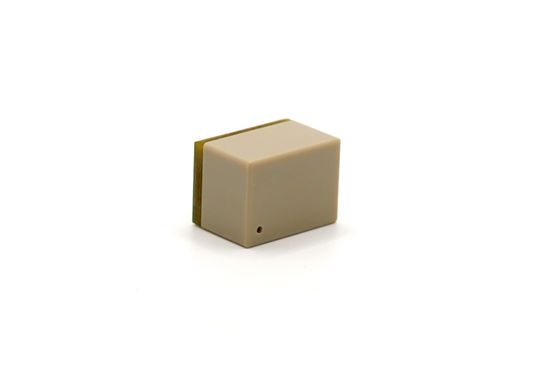

The 16475C is a high-precision, miniaturized MEMS motion sensor module containing three-axis gyroscope and three-axis accelerometer. Each inertial sensor in the 16475C is combined with signal conditioning circuitry to provide a simple interface for data acquisition and configuration control using an SPI interface and register structure. The 16475C is available in a 100-ball BGA package that measures approximately 15 mm x 11 mm x 11 mm.

Technical Specifications
Parameter Test conditions Max Typical Minimal Unit
Gyroscope
Measuring range

±500
°/s
Scale factor X_GYRO_OUT and X_GYRO_LOW(32-bit)
2,621,440
LSB/°/s
X_GYRO_OUT(16-bit)
40
LSB/°/s
Scale factor nonlinearity Best straight line fit, input angular rate 500 dps
100
ppm
Scale factor repeatability Q=3, 1σ
300
ppm
Zero repeatability Q=6, 1σ
30
°/h
Zero bias instability Allan, 1σ
2.5 3.0 °/h
Zero bias stability 1s smooth, 1σ
30
°/h
Random walk
0.15 0.20 °/√h
Zero bias vibration at full temperature -45℃≤Tc≤+85℃, 10s smoothing, 1σ
72
°/h
G sensitivity Test at 1g
0.01
°/s/g
Output noise No filtering, RMS
0.08 0.10 °/s
Bandwidth -3dB
345
Hz
Sensor resonance rate

20
kHz
Accelerometer
Measuring range

±8
g
 Scale factor X_ACCL_OUT and X_ACCL_LOW(32-bit)
2,621,44000
LSB/g
X_ACCL_OUT (16-bit)
4000
LSB/g
Cross coupling Shaft and shaft
±0.05
°
Scale factor nonlinearity Best straight line fit, 1G
500
ppm
Scale factor repeatability Q=3, 1σ
500
ppm
Zero repeatability Q=6, 1σ
0.3
mg
Zero bias instability Allan, 1σ
25 50 ug
Zero bias stability 1s smooth, 1σ
0.3
mg
Random walk
0.05 0.07 m/s/√h
Zero bias vibration at full temperature -45℃≤Tc≤+85℃, 10s smoothing, 1σ
3
mg
Output noise No filtering, RMS
2.0 3.0 mg
Bandwidth -3dB
393
Hz
Sensor resonance rate

2.6
kHz
Temperature Sensor
Scale factor

0.1
℃/LSB
Flash memory Number of ensures 100,000

Cycles
Data retention period T=85℃ 20

Years
Time required for feature configuration
Start time

1000
ms
Internal update time

75
us
Update speed

2.0
kSPS
Synchronization signal input ratio
1900 2000 2100 Hz
Power supply VDD Operating voltage range 3.0
3.6 V
Supply current VDD=3.3V 17
20 mA
