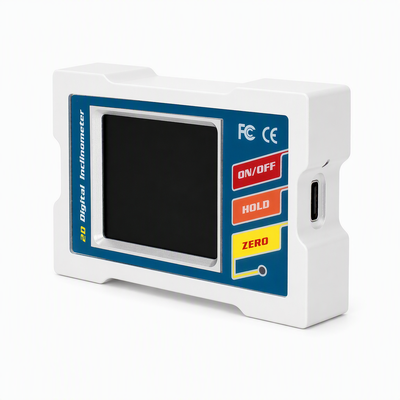

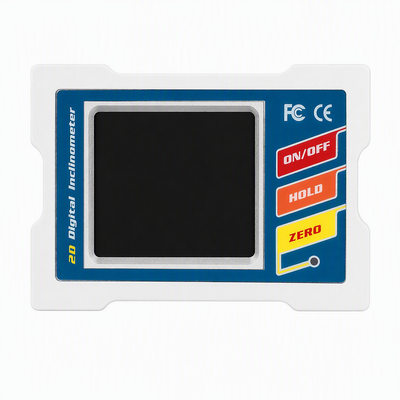

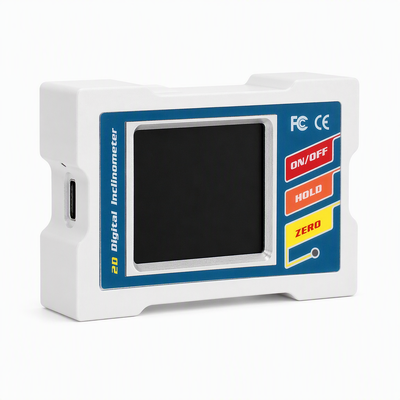

Digital Inclinometer with ±180° Measurement Range and 0.01° Resolution for Industrial Angle Measurement

Name: Digital Inclinometer with ±180° Measurement Range and 0.01° Resolution for Industrial Angle Measurement
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: FMI410
Price: 300 USD
Availability: InStock

Model Number:	FMI410
MOQ:	1
Price:	300$
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	1000/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Angle Measurement Range:

±180°

Angle Measurement Accuracy:

±0.05° (Full Range)

Angle Resolution:

0.01°

Tilt Measurement Range:

±999.9 Mm/m

Mm/m Measurement Resolution:

0.1mm/m

Display Size:

L40 × W32 Mm

Weight:

≤140g

Dimensions:

83 × 19 × 53 Mm

Packaging Details:

Sponge + Carton

Supply Ability:

1000/month

Highlight:

±180° Measurement Range Digital Inclinometer

0.01° Resolution Electronic Level Meter

Industrial Grade Angle Measurement Instrument

Product Description

Digital Inclinometer ±180° Electronic Level Meter with 0.01° Resolution for Industrial Angle Measurement

Product Overview

The FMI410/420 is an electronic level instrument designed for precise angle control and measurement across various industrial applications. Utilizing micro mechanical control principles and dual core measurement units, this instrument features advanced compensation algorithms that ensure long-term stability and repeatability in measurements.

The FMI410 offers single-axis ±180° measurement, while the FMI420 provides dual-axis ±90° measurement. Both models deliver 0.01° resolution, accuracy better than 0.05° across the full range, fast response speed, and stable data output. The design includes strong magnetic adsorption installation on both sides and bottom, allowing for normal measurement from either side.

Key Features

Auto-angle interleaved compensation function
Auto temperature drift compensation
User-calibratable design
Built-in rechargeable industrial batteries
Night vision four-color screen
IP54 protection class
Angle/length dual unit switch
100g high impact resistance

Technical Specifications

Parameters	FMI410	FMI420
Measurement Axis	Single Axis	Dual Axis
Angle Measurement Range	±180°	±90°
Angle Measurement Accuracy	0.05° (full range)	0.05° (full range)
Angle Measurement Resolution	0.01°	0.01°
mm/m Measurement Range	±999.9mm/m	±999.9mm/m
mm/m Measurement Accuracy	0.9mm/m (full range)	0.9mm/m (full range)
mm/m Measurement Resolution	0.1mm/m	0.1mm/m
LCD Visible Area Size	L40*W32mm
Working Temperature	-10℃ to +70℃
Working Humidity	85%RH
Power Supply	3.7V Charging Lithium Battery
Ideal Charging Time	3h
Battery Continuous Working Time	8h (±0.5)
Data Output Signal	Type-C
Anti-vibration	10g@11ms, 3 Axial Direction (Half Sinusoid)
Impact Resistance	10grms, 10～100Hz
Waterproof Level	IP54
Material	Metal Aluminum
Size	L83W19H53mm
Weight	≤140g

Order Information

Item No.	Order Description
FMI410	Standard single axis digital display inclinometer / measure range ±180° (length 0～±999.9mm/m)
FMI420	Standard dual axis digital display inclinometer / measure range ±90° (length 0～±999.9mm/m)

Product Dimensions

Measuring Direction
