FMI610 High Precision Digital Inclinometer with ±90° Measurement Range and Magnetic Installation for Industrial Use

Name: FMI610 High Precision Digital Inclinometer with ±90° Measurement Range and Magnetic Installation for Industrial Use
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: FMI610
Price: 300 USD
Availability: InStock

Model Number:	FMI610
MOQ:	1
Price:	300$
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	1000/month

Detail Information

Product Description

Detail Information

Place of Origin:

Certification:

CE, RoHS

Angle Measurement Range:

±90°

Angle Measurement Resolution:

0.001°

Best Accuracy:

<0.02° (Full Range)

Repeatability:

0.004°

LCD Visible Area:

L60.5 × W45mm

Shock Impact:

10grms. 10～100Hz

Packaging Details:

Sponge + Carton

Supply Ability:

1000/month

Highlight:

High Precision Digital Inclinometer

±90° Measurement Range Tilt Meter

Magnetic Installation MEMS Tilt Sensor

Product Description

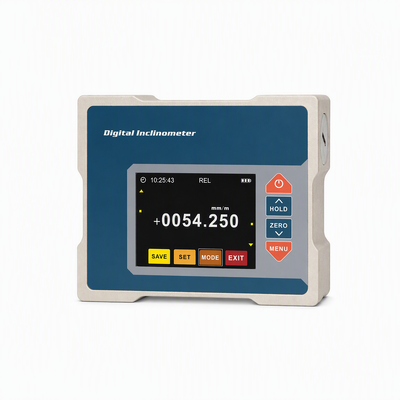

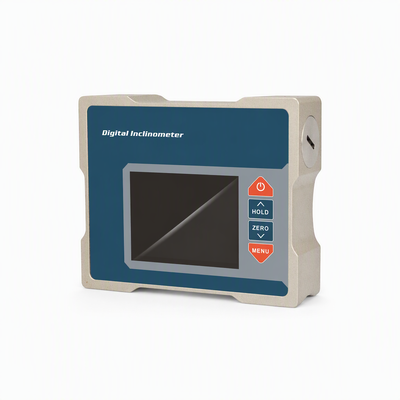

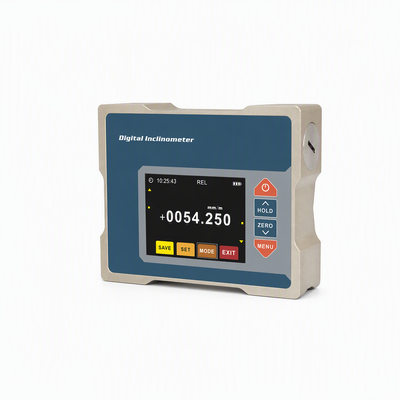

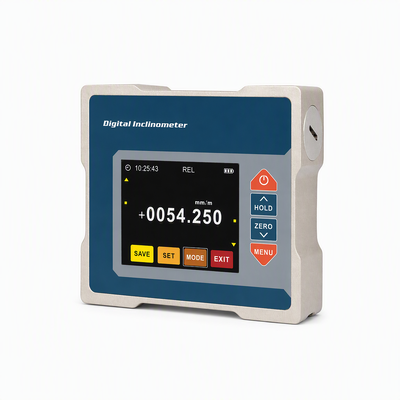

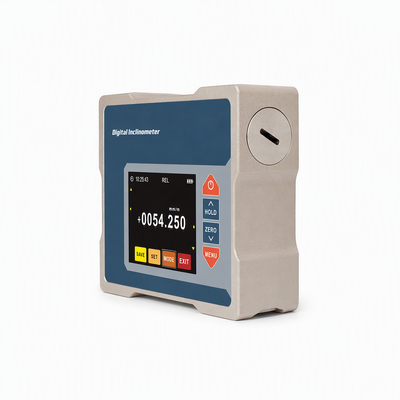

FMI610 High Precision Digital Inclinometer

MEMS Tilt Meter for Industrial Measurement & Machinery Alignment

General Description

The FMI610 is a digital display inclinometer designed for various industrial angle control and measurement applications. Utilizing micro mechanical control principles with patented interleaved temperature compensation model algorithms, this instrument leverages micro-electro-mechanical system (MEMS) technology to ensure long-term stability and repeatability.

With a maximum measurement range of ±90°, resolution of 0.001°, and best accuracy of <0.02° across the full measuring range, the FMI610 delivers fast response speeds and stable data. The unit features strong magnetic adsorption installation on both sides and bottom, enabling measurement from three datum points for enhanced convenience. Additional features include data storage functionality, three selectable measurement modes (Angle, Degree/Minute/Second, Mm/m), strong expandability, industrial reliability, and competitive international pricing.

Key Features

Best accuracy: <0.02°
Data storage function
Repeatability: 0.004°
Maximum measurement range: ±90°
Angle resolution: 0.001°
Absolute/Relative measurement switching
Measurement capability from both sides and bottom
Three surface datum strong magnetic installation
Working temperature: -10° to +70℃
Auto-angle interleaved compensation function
Auto temperature drift compensation
User-calibratable ZERO function
Night vision four-color screen
Three measurement modes: Angle, Degree/Minute/Second, Mm/m

Applications

Building construction
Automobile four-wheel testing
Road slope measurement
Machinery installation
Piping installation
Industrial platform leveling
Turntable testing
Pan unit angle detection
Production jig alignment

Technical Specifications

Parameter	FMI610
Angle measurement range	±90° \| ±30°
Measurement axis	Single axis \| Dual axis
Best accuracy (RMS)	<0.02° (Full range) \| <0.005° (Full range)
Angle measurement resolution	0.001°
Repeatability	0.004°
Measurement mode	Angle, Degree/Minute/Second, Mm/m (Three modes selectable)
LCD Display	64 true colors night vision display screen
LCD visible area size	L60.5 × W45mm
Working temperature	-10℃ to +70℃
Working humidity	85% RH

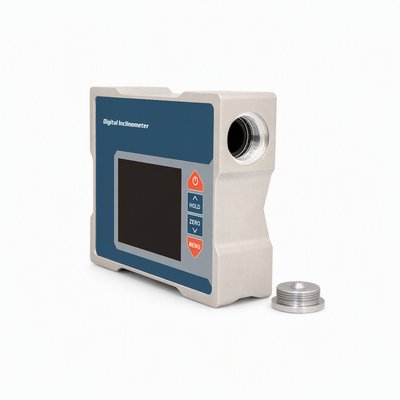

Power supply	One 2A AA battery or AA NiMH rechargeable battery
Ideal working time	6 Hours
Shock resistance	10g @ 11ms, 3 Axial Direction (Half Sinusoid)
Shock impact	10grms, 10～100Hz
Weight	600g
Waterproof grade	IP65
Material	Anodic oxidation of aluminum alloy
Size	L115 × W95 × H32mm

For highest measurement accuracy, please set the latitude information of your local city. This setting will be automatically saved after configuration.

Product Dimension Diagram

Magnetic Measuring Surface

Installation Measurement Chart
