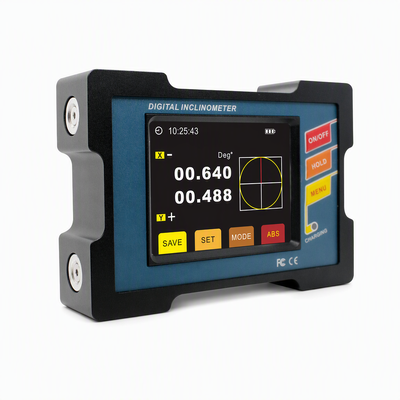

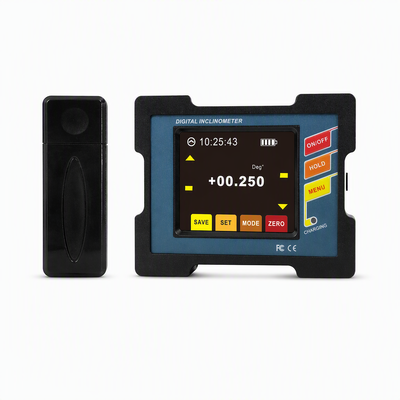

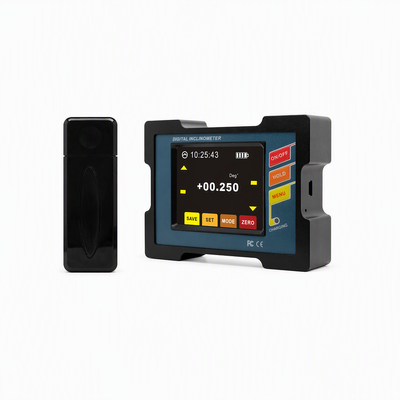

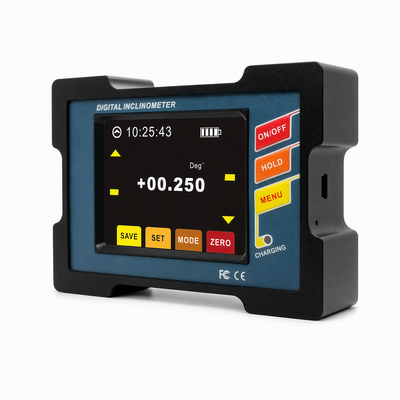

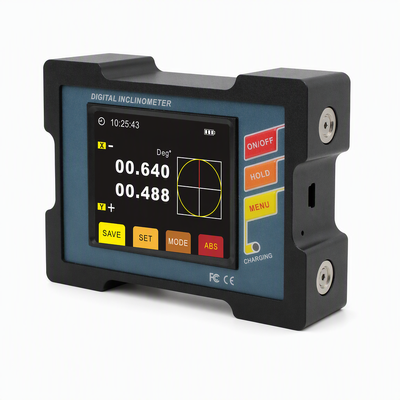

FMI810-46-BT Bluetooth Digital Inclinometer with High Accuracy and ±46° Measurement Range for Industrial Tilt Measurement

FMI810-46-BT is a digital inclinometer independently developed by our company, specializing in reading measurement data through Bluetooth for various industrial equipment platforms. The core of this product is using the micro mechanical control principles, dual core measurement units, temperature compensation during the measurement process, and the absolute computing advantage of micro mechanical electronic principles, ensuring the long-term stability and repeatability of instrument measurement. Single axis measurement with a measurement range of ± 46 °, resolution of 0.001 °, best accuracy of<0.03 °, full range, fast response , and stable data. The product is specially designed with strong magnetic adsorption installation on both sides and bottom, and both benchmarks can be used for normal measurement, bringing great convenience to customers. This product has data storage function, three measurement modes to choose from (angle, degree/minute/second, mm/m), and strong scalability Convenient practical application, industrial reliability, and strong cost-effectiveness advantage, it has a very high competitive advantage in the international market!

• Best accuracy:<0.03 °
• Repeatability:0.03°
• Angle resolution:0.001°
• Maximum measure range:±46°
• Data store function
• IP64 protection
• Absolute/Relative measurement can switch
• Both sides and bottom can measure
• Double benchmark strong magnet installation
• Working Temperature : -10°～ +70℃
• Auto-angle interleaved compensation function
• User can set the alarm value by himself
• User can calibrate ZERO by himself
• Built-in rechargeable industry batteries
• Night vision fours colors screen
• IP54 protection class
• deg , deg/min/sec , /mm/m three units switch function
• Filter frequency optional
• Three kinds of measurement mode selectable (radian, angle, mm)

• Building construction
• Automobile four-wheel testing
• Road slope
• Machinery installation
• Piping installation
• Industrial platform
• Turntable testing
• Pan unit angle detection
• Production jig
• Medical instruments
