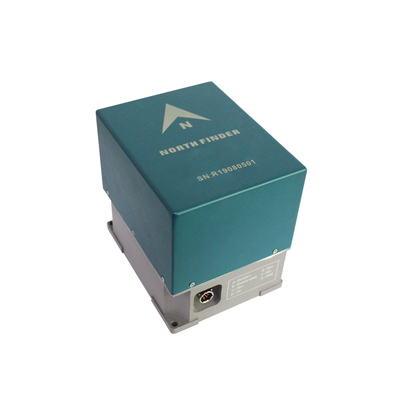

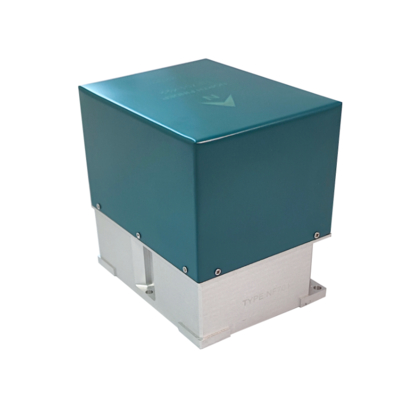

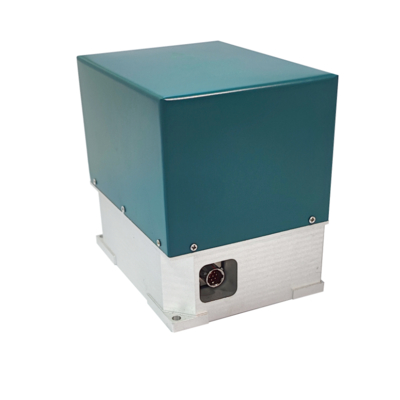

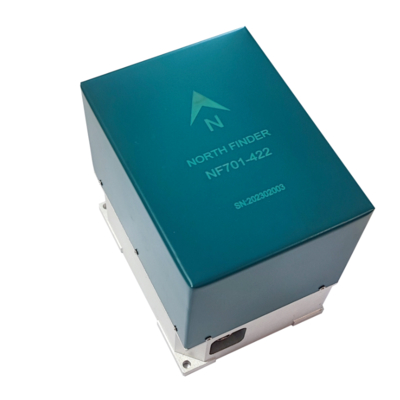

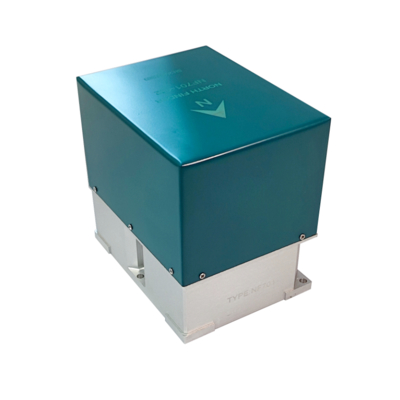

Accurate Gyro North Finder Anti Magnetic North Seeking Gyroscope

Accurate Gyro North Finder Anti Magnetic North Seeking Gyroscope

Brand Name:	Firepower
Model Number:	NF100
MOQ:	1
Price:	8800
Payment Terms:	T/T
Supply Ability:	100 per month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Product Name:

True North Finder

North Seeking Accuracy:

≤0.5°

North Seek Time:

≤ 3 Min

Horizontal Accuracy:

≤0.05 （1σ）

Output:

RS422

Power Supply:

12V

Weight:

1.5KG

Packaging Details:

carton with sponge

Supply Ability:

100 per month

Highlight:

Accurate Gyro North Finder

Gyro North Finder Anti Magnetic

Anti Magnetic North Seeking Gyroscope

Product Description

Accurate Gyro North Finder Anti Magnetic North Seeking Gyroscope

Key Features

High-precision true north seeking with ≤0.5° accuracy
Fast north seek time of ≤3 minutes
Anti-magnetic interference for reliable performance
Horizontal accuracy of ≤0.05° (1σ)
RS422 output for seamless integration
Compact and lightweight design at 1.5KG

Technical Specifications

Attribute	Value
Product name	true north finder
North seeking accuracy	≤0.5°
North seek time	≤3 min
Horizontal accuracy	≤0.05° (1σ)
Output	RS422
Power supply	12V
Weight	1.5KG

Product Description

Accurate true north seeker with anti-magnetic interference capabilities, designed for high-precision applications where magnetic interference is a concern.

Installation Method

Facing the gyro north finder arrow, the left and right sides of the mounting base plate serve as the reference surface. Align the reference surface with the mounting head and tail line of the carrier, then secure the gyro north finder to the carrier using four M4 screws.

Main Technical Parameters

Parameters	NF101	NF102	NF7103	Unit
North seeking accuracy (1σ)	≤0.1	≤0.35	≤0.5	°
North seek time	≤3			min
Horizontal accuracy (pitch and roll)	≤0.05 (1σ)			°
Power-on preparation time	6			min
Interface	RS422
Power supply	12V
Power consumption	20 (peak)			W
Weight	<1.5			Kg
Dimension	L120×W90×H115			mm

Environment Requirements

Parameter	Value	Unit
Operating temperature	-20 ~ +50	°C
Storage temperature	-45~ +70	°C
Relative humidity	95	%

Use & Maintenance

If starting current exceeds 1A, check power supply voltage. If correct, seek professional repair.
If no serial data output, verify connections, serial settings, and data format. If correct, seek professional repair.

Precautions

Handle gyro north finder gently during transportation and installation. Avoid impact.
Keep carrier absolutely stationary during north seeking process to ensure accuracy.
Ensure longitudinal and lateral inclination of carrier does not exceed ±8° to maintain north seeking accuracy.

Composition

The equipment package includes:
