Product Name: Dynamic North Seeker
Span ( (/s): 100
Zero ( (/H, 1σ): 0.1
Zero-bias Stability ( (/H, Allan): 0.02
Accelerometer Range: 2g
Bandwidth: 50Hz
Power: 5~12v
Output: RS422
High Light:

FOG Based Gyro North Finder


Gyro North Finder RS422 Interface

Basic Infomation
Place of Origin: CHINA
Brand Name: AVIC
Model Number: NF701-422
Payment & Shipping Terms
Packaging Details: carton with sponge
Delivery Time: 10 days for sample
Payment Terms: T/T
Supply Ability: 1000/month
Product Description

FOG based north finder measurement, precise north finder system


Electrical performance

1) Insulation resistance

The insulation resistance between the independent circuits of the gyro north finder, and between the circuit and the housing should not be less than 100 MΩ under standard atmospheric conditions.


External Interface

1.1.1 With 24V±4V power input.

1.1.2 With serial port output function, the serial port output is defined as follows:

The external communication port adopts the RS422 serial interface form, with 1 start bit, 8 data bits, 1 stop bit, no parity, and a baud rate of 9600bps. The data is in ASIC format.




Main technical parameters
Parameters NF701 Unit
North seeking accuracy (1σ) ≤0.1 °
North seek time ≤ 3 min
Horizontal accuracy (pitch and roll) ≤0.05 (1σ) °
Circular linearity (1σ) ≤0.1 °
Power-on preparation time 6 min
interface RS422 /
Weight <5.5 Kg
Dimension 150×170×172 mm
Working mode

After power on, it start self-test. After the self-test

completed, it will response to the upper computer’s north

seek command. And after north seeking, the north seeking

result will be sent to upper computer.

Environment requirements
Operating temperature -40 ~ +65 ° C
Storage temperature -45~ +70 ° C
Relative humidity 95 %
Appearance The metal surface shall not be rusted, and the coating shall not cause blistering or peeling.
Electrical performance
Power supply 24±4V
Power consumption <30W
Insulation resistance

The insulation resistance between the individual circuits of the gyro north finder and its circuit and housing shall be not less than 10 MΩ under standard atmospheric


MTBF ≥1000 hrs
MTTR ≤30 min


Use maintenance

1 During the use of the gyro north finder, if the power-on current is found to be greater than 1000mA, check whether the power supply voltage meets the requirements. If the check is correct, you should ask a professional for repair.

2 If there is no serial port data output during the use of the gyro north finder, check whether the connection, the serial port setting and the data receiving format are correct, if the all is correct, you should ask a professional for repair.

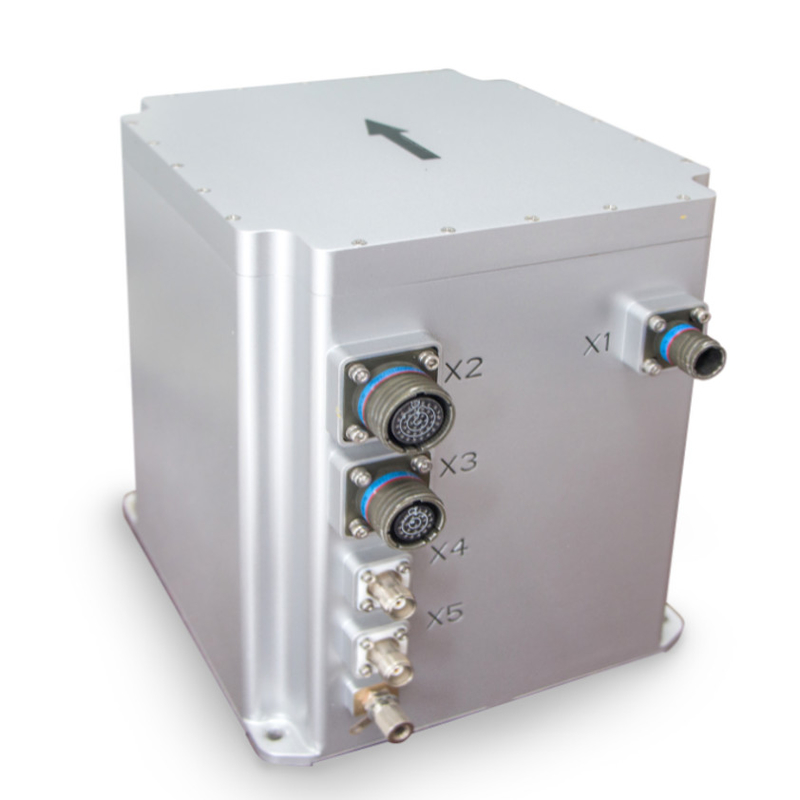

Product Drawing
