Accurate Gyro North Finder Anti Magnetic North Seeking Gyroscope

1
MOQ
8800
Price
Accurate Gyro North Finder Anti Magnetic North Seeking Gyroscope
Features Gallery Product Description Request A Quote
Features
Specifications

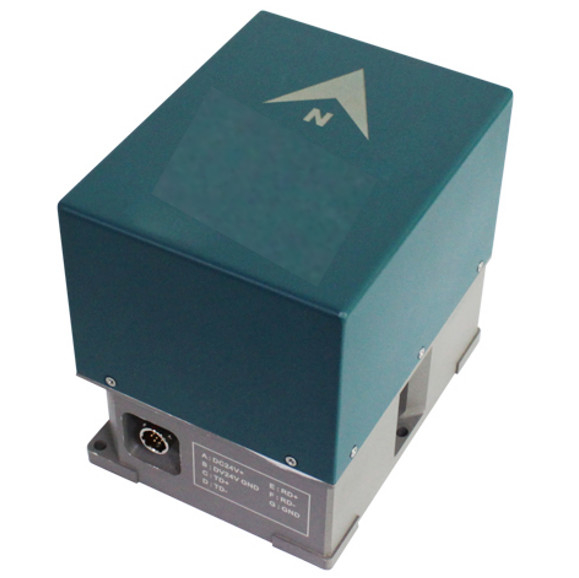

Product Name: True North Finder
North Seeking Accuracy: ≤0.5°
North Seek Time: ≤ 3 Min
Horizontal Accuracy: ≤0.05 (1σ)
Output: RS422
Power Supply: 12V
Weight: 1.5KG
High Light:

Accurate Gyro North Finder

,

Gyro North Finder Anti Magnetic

,

Anti Magnetic North Seeking Gyroscope

Basic Infomation
Place of Origin: CHINA
Brand Name: AVIC
Model Number: NF100
Payment & Shipping Terms
Packaging Details: carton with sponge
Delivery Time: 10 days for sample
Payment Terms: T/T
Supply Ability: 100 per month
Product Description

accurate true north seeker, anti-magnetic interference north finder



▶ Instructions

1 Installation method

Facing the gyro north finder arrow, the left and right sides of the mounting base plate are for mounting the reference surface, and the reference surface is aligned with the mounting head and tail line of the carrier, and the gyro north finder is fixed on the carrier by four M4 screws. The installation diagram of the gyro north finder is shown in Figure 1.



Accurate Gyro North Finder Anti Magnetic North Seeking Gyroscope 0

Main technical parameters
Parameters NF101 NF102 NF7103 Unit
North seeking accuracy (1σ) ≤0.1 ≤0.35 ≤0.5 °
North seek time ≤ 3 min
Horizontal accuracy (pitch and roll) ≤0.05 (1σ) ≤0.05 (1σ) ≤0.05 (1σ) °
Power-on preparation time 6 min
interface RS422 /
Power supply 12 V
Power consumption 20 (peak) w
Weight <1.5 Kg
Dimension L120×W90×H115 mm
Working mode

After power on, it start self-test. After the self-test

completed, it will response to the upper computer’s north

seek command. And after north seeking, the north seeking

result will be sent to upper computer.

Environment requirements
Operating temperature -20 ~ +50 ° C
Storage temperature -45~ +70 ° C
Relative humidity 95 %
Appearance The metal surface shall not be rusted, and the coating shall not cause blistering or peeling.
Electrical performance
Insulation resistance

The insulation resistance between the individual circuits of the gyro north finder and its circuit and housing shall be not less than 10 MΩ under standard atmospheric

conditions.

maintainability
MTBF ≥10000 hrs
MTTR ≤30 min







Use maintenance

1) If the gyro north finder is found to have a starting current greater than 1A during use, check whether the power supply voltage meets the requirements. If the inspection is correct, the professional should be repaired.

2) If the gyro north finder is found to have no serial port data output during use, check whether the connection is correct, whether the serial port setting and data receiving format are correct. If the check is correct, the professional should be repaired.

Precautions

1) The gyro north finder should be handled gently during the transportation process and installation process, and it is strictly forbidden to impact.

2) The carrier should be kept absolutely stationary during the north seeking process, otherwise it will affect the accuracy of north seeking.

3) The longitudinal and lateral inclination of the carrier should be no more than ±8°, otherwise it will affect the accuracy of north seeking.

Composition

The equipment package includes:

a) 1 set of fiber optic gyro north finder;

b) One plug.
