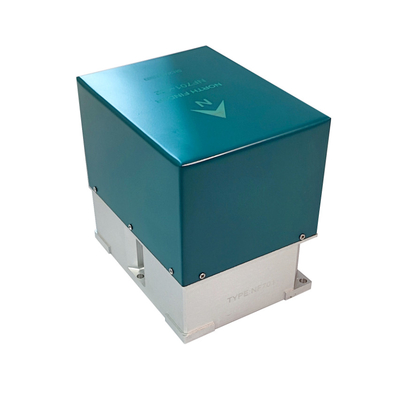

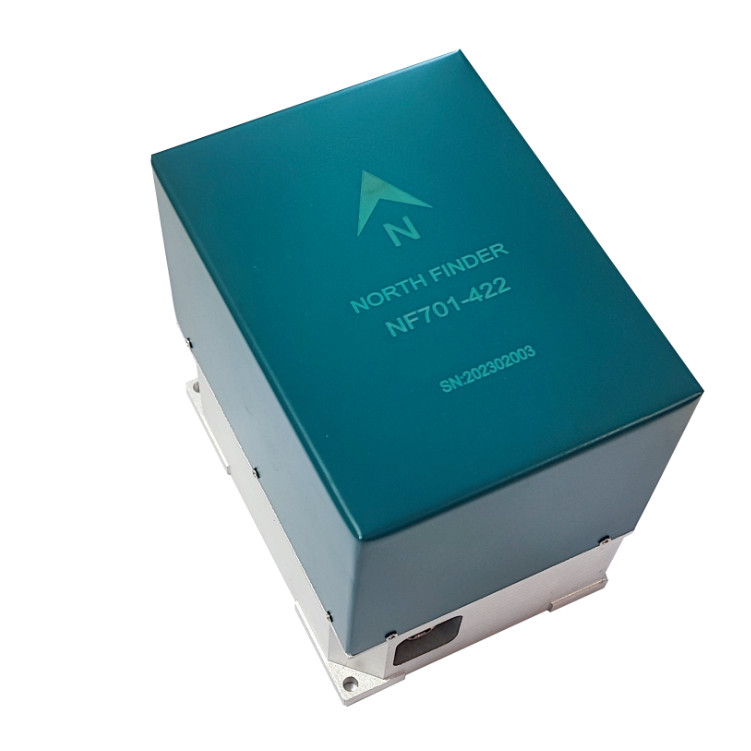

Anti Magnetic Fiber Optic Gyroscope North Finder North Seeking Gyroscope

Product Description

The fiber optic gyroscope north finder is mainly used for rapidly and autonomously determining the true north direction, obtaining the rotation angle rate of the earth through the tracking of the fiber optic gyroscope, resolving the rotation angle rate signal of the earth, calculating the included angle between the main axis of the gyroscope and the true north direction of the earth, and providing azimuth and attitude information for a carrier.

The fiber optic gyroscope north finder is an electromechanical integrated product, which is composed of fiber optic gyroscope, accelerometer, mechanical rotation control device and embedded computer.

Technical Parameters

A) North seeking time: ≤ 3 min;
B) North seeking accuracy (1σ): ≤ 0.3 ° (NF701A); ≤ 0.5 ° (NF701B)
C) Horizontal accuracy: ≤ 0.05 ° (1σ);
D) Circumference: ≤ 0.5 ° (1σ)
E) Weight: ≤ 2 kg;
F) Power supply: DC 12V ~ 24V;
G) Power consumption: 15 W (peak);
H) Interface: RS422
I) Working mode: start automatic self-check after power on, control north seeking by the upper computer, and send north seeking results to the upper computer after north seeking is completed;

             1) Working temperature: -40 ºC ~ + 70 ºC;
2) Storage temperature: -55 ºC ~ + 85 ºC.
3) Humid and hot environmental conditions: relative humidity is less than 95%.
4) Appearance: The metal surface shall be free of rust, and the coating shall be free of blistering, peeling, etc.

              Insulation resistance: the insulation resistance between the independent circuits of the fiber optic  gyroscope north finder and between the circuit and the shell shall not be less than 10 MΩ under standard atmospheric conditions.

      MTBF ≥ 1000 hours;
MTTR ≤30min.

(5)External interface

1. With serial port output function.
2. With DC12 V ~ 24V power input.
3. External plug:

 Outline Drawing
