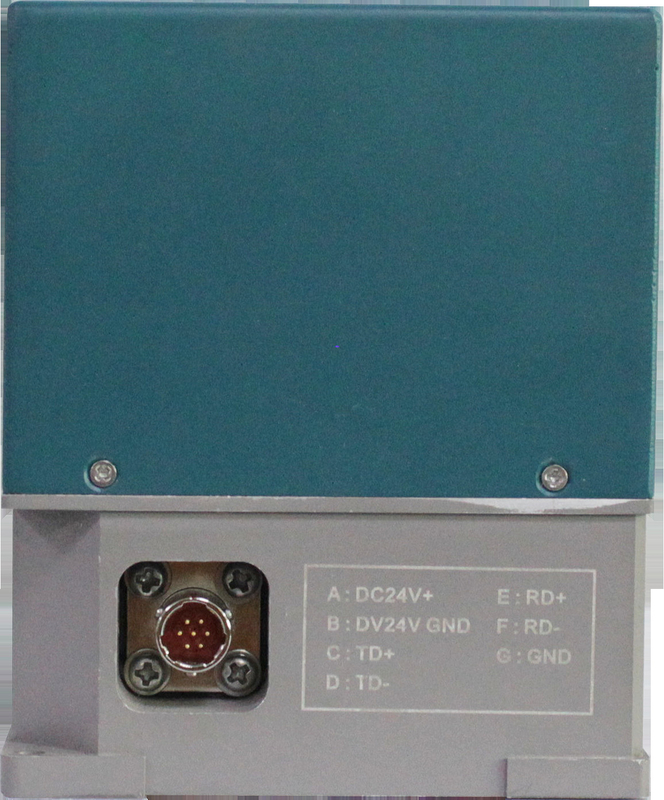

high accuracy north finder static true north seeker FOG based true north meter
| Main technical parameters | ||||
| Parameters | NF101 | NF102 | NF7103 | Unit |
| North seeking accuracy (1σ) | ≤0.1 | ≤0.35 | ≤0.5 | ° |
| North seek time | ≤ 3 | min | ||
| Horizontal accuracy (pitch and roll) | ≤0.05 (1σ) | ≤0.05 (1σ) | ≤0.05 (1σ) | ° |
| Power-on preparation time | 6 | min | ||
| interface | RS422 | / | ||
| Power supply | 12 | V | ||
| Power consumption | 20 (peak) | w | ||
| Weight | <1.5 | Kg | ||
| Dimension | L120×W90×H115 | mm | ||
| Working mode |
After power on, it start self-test. After the self-test completed, it will response to the upper computer’s north seek command. And after north seeking, the north seeking result will be sent to upper computer. |
|||
| Environment requirements | ||||
| Operating temperature | -20 ~ +50 | ° C | ||
| Storage temperature | -45~ +70 | ° C | ||
| Relative humidity | 95 | % | ||
| Appearance | The metal surface shall not be rusted, and the coating shall not cause blistering or peeling. | |||
| Electrical performance | ||||
| Insulation resistance |
The insulation resistance between the individual circuits of the gyro north finder and its circuit and housing shall be not less than 10 MΩ under standard atmospheric conditions. |
|||
| maintainability | ||||
| MTBF | ≥10000 | hrs | ||
| MTTR | ≤30 | min | ||
▶ Use maintenance
1) If the gyro north finder is found to have a starting current greater than 1A during use, check whether the power supply voltage meets the requirements. If the inspection is correct, the professional should be repaired.
2) If the gyro north finder is found to have no serial port data output during use, check whether the connection is correct, whether the serial port setting and data receiving format are correct. If the check is correct, the professional should be repaired.
▶ Precautions
1) The gyro north finder should be handled gently during the transportation process and installation process, and it is strictly forbidden to impact.
2) The carrier should be kept absolutely stationary during the north seeking process, otherwise it will affect the accuracy of north seeking.
3) The longitudinal and lateral inclination of the carrier should be no more than ±8°, otherwise it will affect the accuracy of north seeking.
▶ Composition
The equipment package includes:
a) 1 set of fiber optic gyro north finder;
b) One plug.
