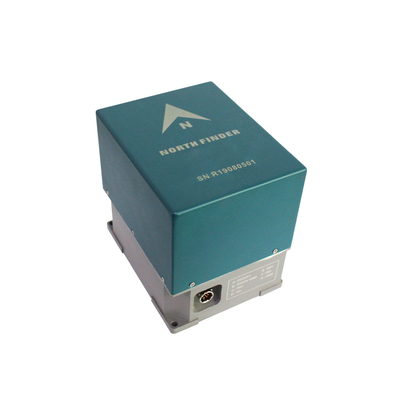

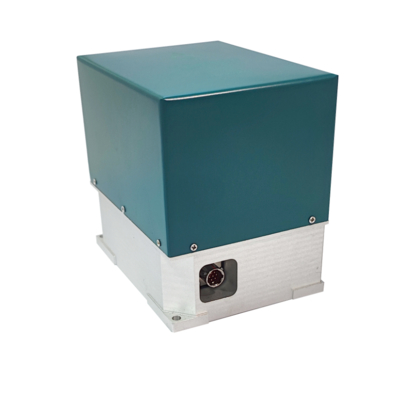

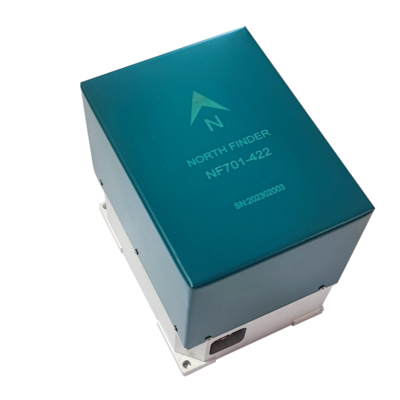

Anti Magnetic Fiber Optic Gyroscope North Finder North Seeking Gyroscope

Name: Anti Magnetic Fiber Optic Gyroscope North Finder North Seeking Gyroscope
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: NF701
Price: 7000 USD
Availability: InStock

Brand Name:	FIREPOWER
Model Number:	NF701
MOQ:	1
Price:	7000$
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

North Seeking Accuracy (1σ):

≤ 0.3 °

Horizontal Accuracy:

≤ 0.05 °(1σ)

Circumference:

≤ 0.5 ° (1σ)

Weight:

≤150g

Dimension:

115 × 90 × 110mm

Power Consumption:

15 W

Communication Interface:

RS422

Packaging Details:

sponge+box

Supply Ability:

500/month

Highlight:

Fiber Optic North Finder

Seeking Gyroscope North Finder

Anti Magnetic North Finder

Product Description

Anti Magnetic Fiber Optic Gyroscope North Finder

Key Specifications

Attribute	Value
North Seeking Accuracy (1σ)	≤ 0.3 °
Horizontal Accuracy	≤ 0.05 °(1σ)
Circumference	≤ 0.5 ° (1σ)
Weight	≤150g
Dimension	115 × 90 × 110mm
Power Consumption	15 W
Communication Interface	RS422

Product Overview

The fiber optic gyroscope north finder rapidly and autonomously determines true north direction by measuring the Earth's rotation rate. It calculates the angle between the gyroscope's main axis and true north, providing precise azimuth and attitude information for carriers.

This electromechanical integrated system combines a fiber optic gyroscope, accelerometer, mechanical rotation control device, and embedded computer for reliable performance.

Technical Parameters

North seeking time: ≤ 3 min

North seeking accuracy (1σ): ≤ 0.3 ° (NF701A); ≤ 0.5 ° (NF701B)

Horizontal accuracy: ≤ 0.05 ° (1σ)

Circumference: ≤ 0.5 ° (1σ)

Weight: ≤ 2 kg

Power supply: DC 12V ~ 24V

Power consumption: 15 W (peak)

Interface: RS422

Environmental Requirements

Working temperature: -40°C to +70°C
Storage temperature: -55°C to +85°C
Humidity: Relative humidity less than 95%
Appearance: Rust-free metal surfaces with intact coatings

Electrical Performance

Insulation resistance between independent circuits and between circuits and shell: ≥10 MΩ under standard conditions.

Reliability

MTBF ≥ 1000 hours
MTTR ≤30min

External Interfaces

Serial port output
DC12V ~ 24V power input
Includes external plug
