Compact and Lightweight 0.3° Advanced Fiber Optic Gyroscope North Finder

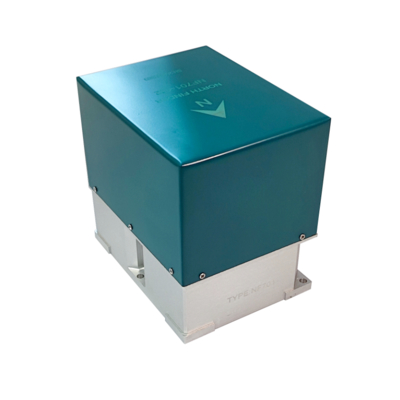

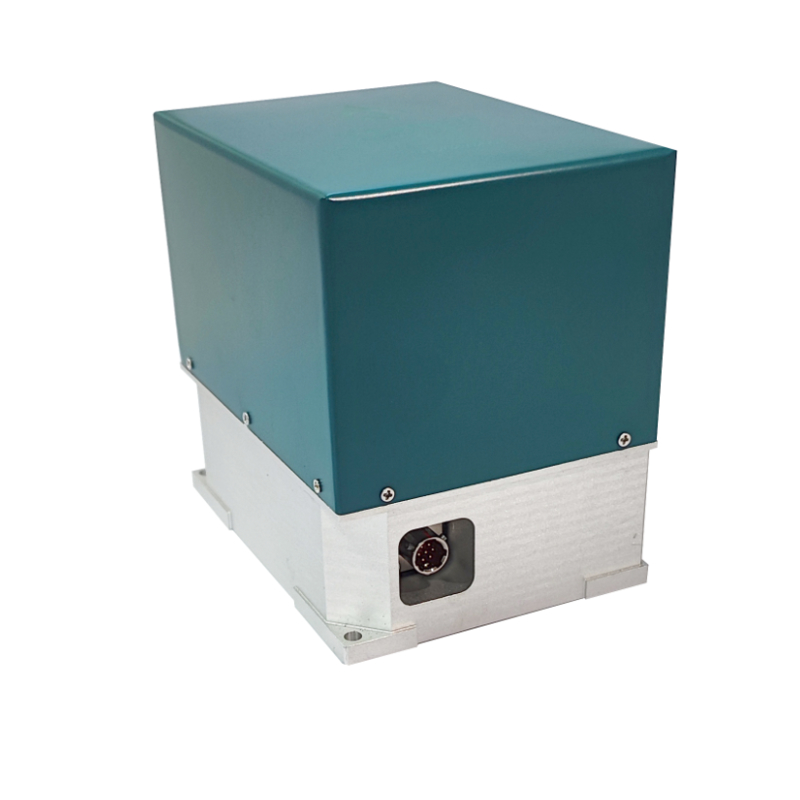

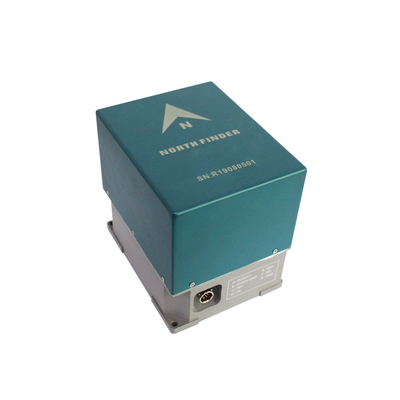

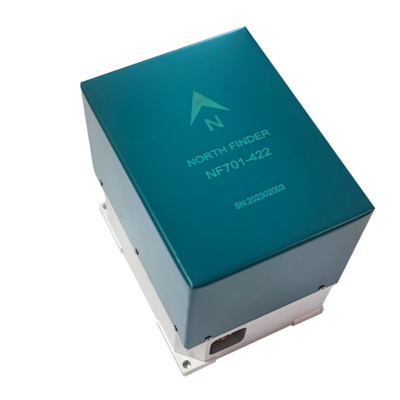

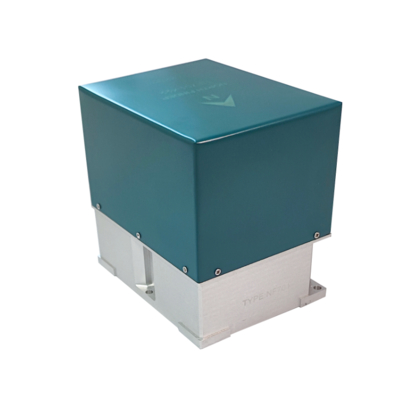

Name: Compact and Lightweight 0.3° Advanced Fiber Optic Gyroscope North Finder
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: NF701
Price: 2000 USD
Availability: InStock

Brand Name:	1
Model Number:	NF701
MOQ:	1
Price:	2000$
Payment Terms:	L/C,D/P,T/T,Western Union
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

Fiber Optic Gyroscope North Finder

North Seeking Accuracy (1σ):

≤ 0.3 ° (NF701A); ≤ 0.5 ° (NF701B)

Horizontal Accuracy:

≤ 0.05 °

Circumference:

≤ 0.5 °

Interface:

RS422

Power Supply:

DC 12V ~ 24V

Weight:

≤ 2 Kg

Dimension:

115 × 90 × 110mm

Packaging Details:

Sponge + Carton

Supply Ability:

500/month

Highlight:

compact fiber optic gyroscope north finder

lightweight gyro north finder

0.3° precision fiber optic gyroscope

Product Description

Compact and Lightweight 0.3° Advanced Fiber Optic Gyroscope North Finder

Product Specifications

Attribute	Value
Product Name	fiber optic gyroscope north finder
North seeking accuracy (1σ)	≤ 0.3 ° (NF701A); ≤ 0.5 ° (NF701B)
Horizontal accuracy	≤ 0.05 °
Circumference	≤ 0.5 °
Interface	RS422
Power supply	DC 12V ~ 24V
Weight	≤ 2 kg
Dimension	115 × 90 × 110mm

Product Overview

The Fiber Optic Gyroscope North Finder provides rapid, autonomous determination of true north using advanced FOG technology. It measures the Earth's rotation to deliver high-precision azimuth and attitude information for UAVs, autonomous vehicles, robotics, marine vessels, and GPS-denied navigation systems.

Featuring an all-solid-state design with no moving parts, it ensures high reliability, long operational life, and low maintenance. Its compact, lightweight, and low-power construction allows seamless integration into dynamic platforms while maintaining fast alignment, stable performance, and robust resistance to harsh environments.

Technical Features

Fast operation: North seeking time ≤ 3 minutes
High precision: North seeking accuracy ≤ 0.3° (NF701A model)
Stable performance: Horizontal accuracy ≤ 0.05°
Compact design: Weighs ≤ 2 kg with dimensions of 115 × 90 × 110mm
Versatile power: Operates on DC 12V ~ 24V with peak consumption of 15W
Reliable interface: RS422 communication protocol
Automated operation: Self-check upon power-on with upper computer control

Environmental Specifications

Operating temperature: -40℃ to +70℃
Storage temperature: -55℃ to +85℃
Humidity resistance: Operates in relative humidity < 95%
Durable construction: Rust-free metal surfaces with intact coatings

Product Diagram

Fiber optic gyroscope north finder

Technical diagram showing dimensions and components
