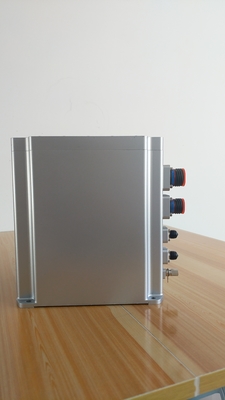

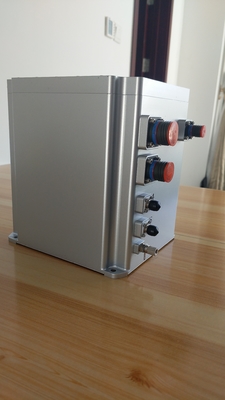

FOG Based Gyro North Finder RS422 Serial Interface 24V

Brand Name:	Firepower
Model Number:	NF701-422
MOQ:	1
Payment Terms:	T/T
Supply Ability:	1000/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Product Name:

Dynamic North Seeker

Span ( (/s):

100

Zero ( (/H, 1σ):

0.1

Zero-bias Stability ( (/H, Allan):

0.02

Accelerometer Range:

Bandwidth:

50Hz

Power:

5~12v

Output:

RS422

Packaging Details:

carton with sponge

Supply Ability:

1000/month

Highlight:

FOG Based Gyro North Finder

Gyro North Finder RS422 Interface

Product Description

FOG Based Gyro North Finder RS422 Serial Interface 24V

Product Specifications

Attribute	Value
Product name	dynamic north seeker
Span (/s)	100
Zero (/H, 1σ)	0.1
Zero-bias stability (/H, Allan)	0.02
Accelerometer range	2g
Bandwidth	50Hz
Power	5~12V
Output	RS422

Product Description

FOG based north finder measurement, precise north finder system

Electrical Performance

Insulation resistance between the independent circuits of the gyro north finder, and between the circuit and the housing should not be less than 100 MΩ under standard atmospheric conditions

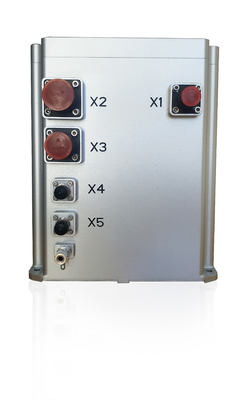

External Interface

24V±4V power input
RS422 serial interface with 1 start bit, 8 data bits, 1 stop bit, no parity, and a baud rate of 9600bps (data in ASIC format)

Technical Parameters

Parameters	NF701	Unit
North seeking accuracy (1σ)	≤0.1	°
North seek time	≤ 3	min
Horizontal accuracy (pitch and roll)	≤0.05 (1σ)	°
Circular linearity (1σ)	≤0.1	°
Power-on preparation time	6	min
Interface	RS422	/
Weight	<5.5	Kg
Dimension	150×170×172	mm

Working Mode

After power on, it starts self-test. After the self-test completes, it will respond to the upper computer's north seek command. After north seeking, the result will be sent to upper computer.

Environment Requirements

Operating temperature	-40 ~ +65 °C
Storage temperature	-45~ +70 °C
Relative humidity	95%

Use & Maintenance

If power-on current exceeds 1000mA, check power supply voltage. If correct, consult professional for repair
If no serial port data output, check connection, serial port settings and data receiving format. If all correct, consult professional for repair

Product Drawing

About Firepower Technology

Firepower Technology (Shenzhen) Co., Ltd. is a high-tech enterprise established in 2013, dedicated to R&D and production of quartz accelerometer, FOG, IMU, INS, rate table and other products.

The company has developed a series of autonomous navigation products with independent intellectual property rights, used in UAVs, vehicles, and ships with self-developed array algorithm as core technology.

Qualifications

National High-tech Enterprise
National Military Standard System Certification
Level II Confidentiality Qualification
Weapon and Equipment Manufacturing Qualification (Class A)
17 authorized patents (including 3 invention patents)

Development Policy

One Heart: Dedicated to patriotism and serving the country
Two Integration: Civil-military and industrial integration
Three Leading: Innovation, cultural strength and competitiveness
Four Autonomy: Hardware, software, scheme and production autonomy
