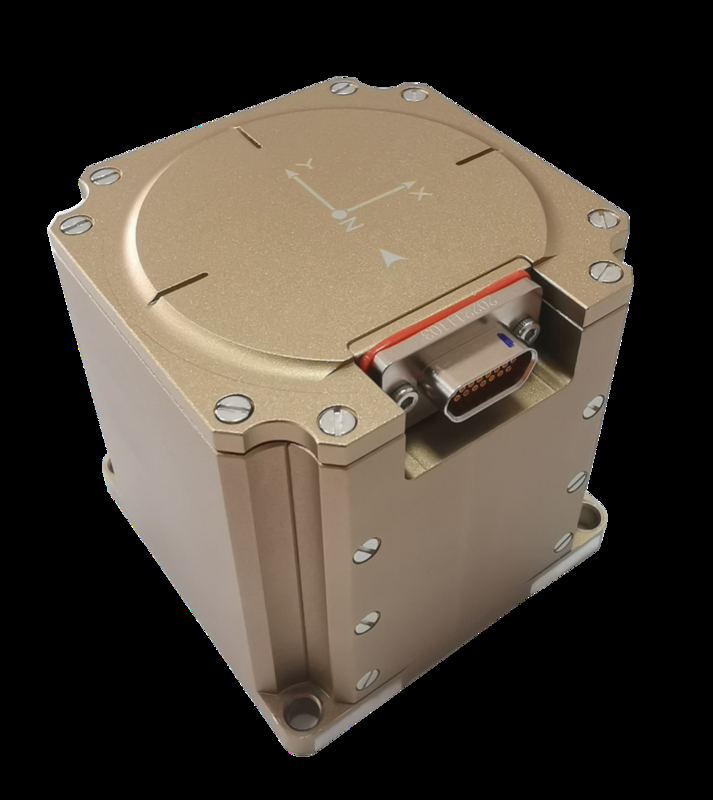

Lightweight Fiber Optic True North Finder for Mining

Lightweight Fiber Optic True North Finder for Mining

Brand Name:	1
Model Number:	NF102
MOQ:	1
Price:	2000$
Payment Terms:	L/C,D/P,T/T,Western Union
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

North Finder

Navigation Tracking Error:

± 0.5 (≤ 5min, Rotation Speed ≤ 10 °/S)

Tilt Adaptability:

±15°

Azimuth Error:

≤ 0.5 °

Interface:

RS422

Power Supply:

DC 9 ~ 12V

Weight:

≤ 400 G

Dimension:

60X60X60mm

Packaging Details:

Sponge + Carton

Supply Ability:

500/month

Highlight:

lightweight fiber optic north finder

gyro north finder for mining

true north finder with warranty

Product Description

Lightweight Fiber Optic True North Finder for Mining

Product Specifications

Attribute	Value
Product Name	North Finder
Navigation tracking error	± 0.5° (≤ 5min, rotation speed ≤ 10 °/S)
Tilt adaptability	±15°
Azimuth error	≤ 0.5°
Interface	RS422
Power supply	DC 9 ~ 12V
Weight	≤ 400 g
Dimension	60×60×60mm

Technical Specifications

Project	Unit	Industrial grade MF-102
Output mode		RS422/RS232
Connector		J30JM-15ZKP
Power consumption	W	≤1
Azimuth error	°	±0.5
Navigation tracking error	°	± 0.5 (≤ 5min, rotation speed ≤ 10 °/S)
Tilt adaptability	°	±15

Product Overview

The Fiber Optic Gyroscope North Finder provides rapid, autonomous determination of true north using advanced FOG technology. It measures the Earth's rotation to deliver high-precision azimuth and attitude information for UAVs, autonomous vehicles, robotics, marine vessels, and GPS-denied navigation systems.

Featuring an all-solid-state design with no moving parts, it ensures high reliability, long operational life, and low maintenance. Its compact, lightweight, and low-power construction allows seamless integration into dynamic platforms while maintaining fast alignment, stable performance, and robust resistance to harsh environments.

Technical Features

Supply voltage: 9 ~ 12 V
Product dimensions: 60×60×60/46×53(4×M4)
Product weight: ≤ 400 g
Operating temperature: -30℃ to +65℃
Storage temperature: -55℃ to +85℃

Product Diagram
