Precision Two Axis Turntable Provide Angular Position / Angular Rate / Angular Acceleration

Brand Name:	Firepower
Model Number:	2LT300
MOQ:	1
Payment Terms:	T/T
Supply Ability:	1000/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Product Name:

Multi-function Turntable

Load Capacity:

50kg

Table Size:

Φ 500mm

Table Facet Flatness:

0.02 Mm

Runout Of Table End Face:

0.05mm

Magnetic Flux Leakage:

Less Than 1mT

Rotation Accuracy:

± 3 ″

System Bandwidth:

5~ 100Hz

Packaging Details:

carton with sponge

Supply Ability:

1000/month

Highlight:

Precision Two Axis Turntable

multi-function Two Axis Turntable

Product Description

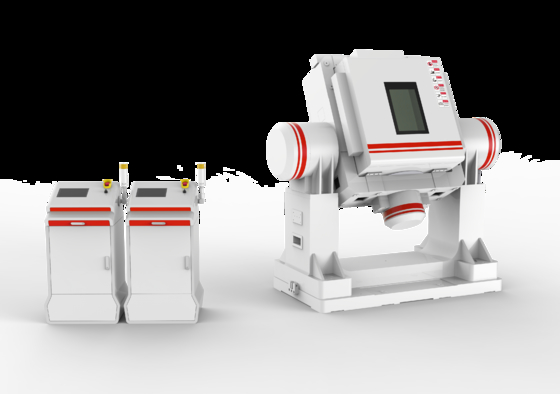

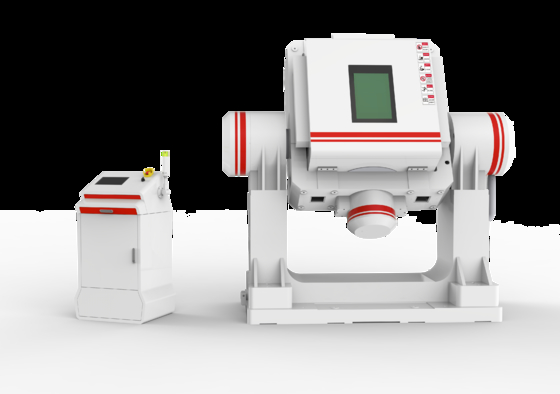

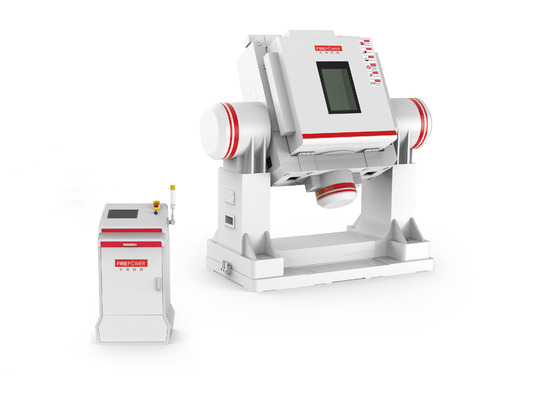

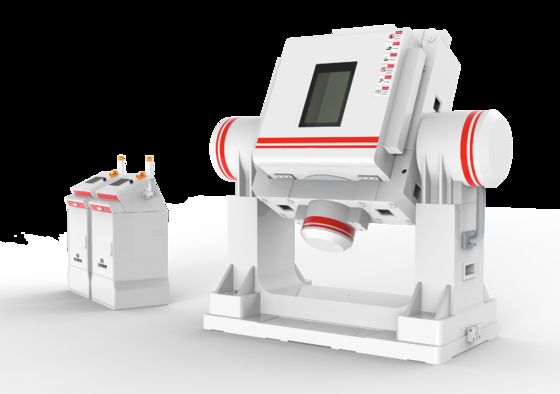

Precision Two Axis Turntable Provide Angular Position / Angular Rate / Angular Acceleration

Product Specifications

Attribute	Value
Product name	multi-function turntable
Load capacity	50kg
Table size	Φ 500mm
Table facet flatness	0.02 mm
Runout of table end face	0.05mm
Magnetic flux leakage	less than 1mT
Rotation accuracy	± 3 ″
System bandwidth	5~ 100Hz

Product Description

The two-axis turntable is a precision test equipment that can provide angular position, angular rate and angular acceleration motion excitation of two orthogonal axes. It enables testing and evaluation of measured parts such as gyros, inertial measurement devices and accelerometers, and can also realize dynamic motion simulation, servo, simulation and angular vibration of the two rotation directions in space.

Key Features:

Control system: High-performance control unit, high-precision angle measuring system, PWM digital servo amplifier, direct drive servo motor
Main components: Support, drive motor, power amplifier, angle measuring element, AD/DA card (all using high-performance products)
Structure: Vertical and horizontal configurations available

Technical Specifications

Model	2LT300	2LT400	2LT500	2LT600	2LT700	Unit
Structural form	Vertical horizontal rotation
Mesa material	Stainless steel/aluminum alloy optional
Maximum load weight	30~50	30~50	30~50	30~60	50~70	Kg
Table size	Φ300	Φ400	Φ500	Φ600	Φ700	mm
Mesa flatness	0.02	0.02	0.05	0.05	0.05	mm
Table height	400	540	640	740	840	mm
Rotation accuracy	±1~3	±1~3	±1~3	±1~3	±1~3	″ (Optional)
Angular position range	±0〜±360	±0〜±360	±0〜±360	±0〜±360	±0〜±360	°
Angular position accuracy	±1~3	±1~3	±1~3	±1~3	±1~3	″ (Optional)
Angular resolution	0.0001	0.0001	0.0001	0.0001	0.0001	°
Angular rate range	0.001〜10000	0.001〜2000	0.001〜1500	0.001〜1000	0.001〜1000	°/s
Angular rate accuracy	ω＜1: 1×10^-3 \| 1<ω＜10: 1×10^-4 \| 10<ω: 5×10^-5					°/s
Maximum angular acceleration	Inner:10000 Outer:3000	Inner:14500 Outer:2000	Inner:13000 Outer:1000	Inner:12000 Outer:500	Inner:12000 Outer:500	°/s²
Rocking function	Optional
Rate resolution	0.0001					customizable
Slip ring number	10~72					Customizable
System bandwidth	5~80Hz	5~80Hz	5~100Hz	5~100Hz	5~100Hz	Hz
Slip-ring voice	≤±0.03					Optional
Leakage flux	±0.5					Hz(Optional)
